Note:
Handle brake fluid with care: since it is corrosive,
it can cause irreparable damage to painted or
plastic parts
FORK OIL

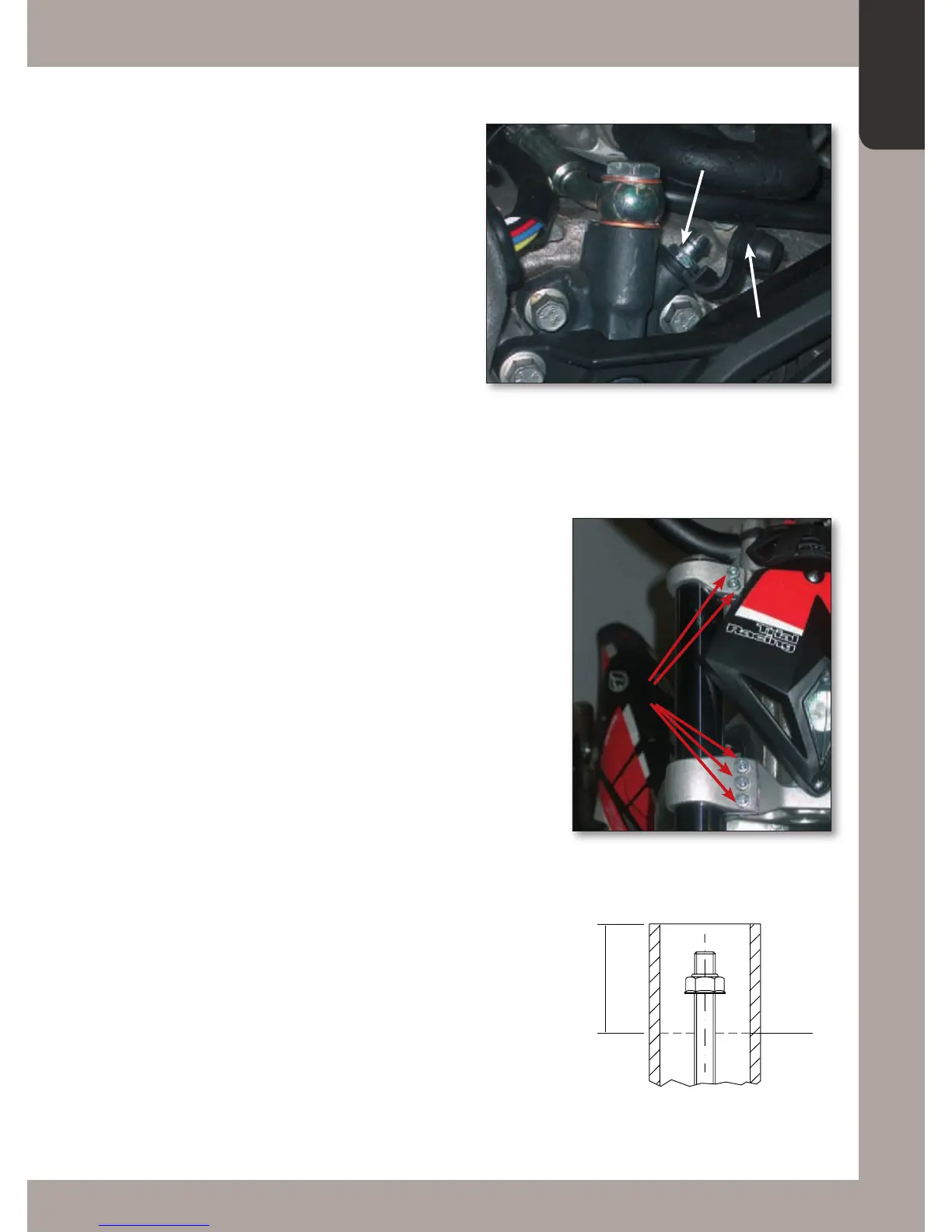

Right fork leg
To change the fork oil, follow the steps below:
1) Take out the front wheel.
2) Remove the handlebars.
3) Slack off the fork stanchion pinch bolts (A) and
slide out the complete fork leg.
4) Unscrew the upper cap.
5) Unscrew the locknut securing the cap and remove
it.
6) Undo the screw retaining the cartridge (located
under the fork leg) and extract the cartridge.
7) Drain the fork leg and cartridge completely of oil.
8) Refit the cartridge to the fork leg, tightening the re-
taining bolt, then refill with oil (OJ01), thus charging
the cartridge, up to the level shown in the diagram
(with fork leg fully compressed).
9) Refit the cap to the damper rod, tighten the lock-
nut, and screw the cap onto the stanchion, with the
fork leg fully extended.
10) Refit all remaining parts.
Note:
Recommended tightening torque 7.8: 9.1 Nm.
