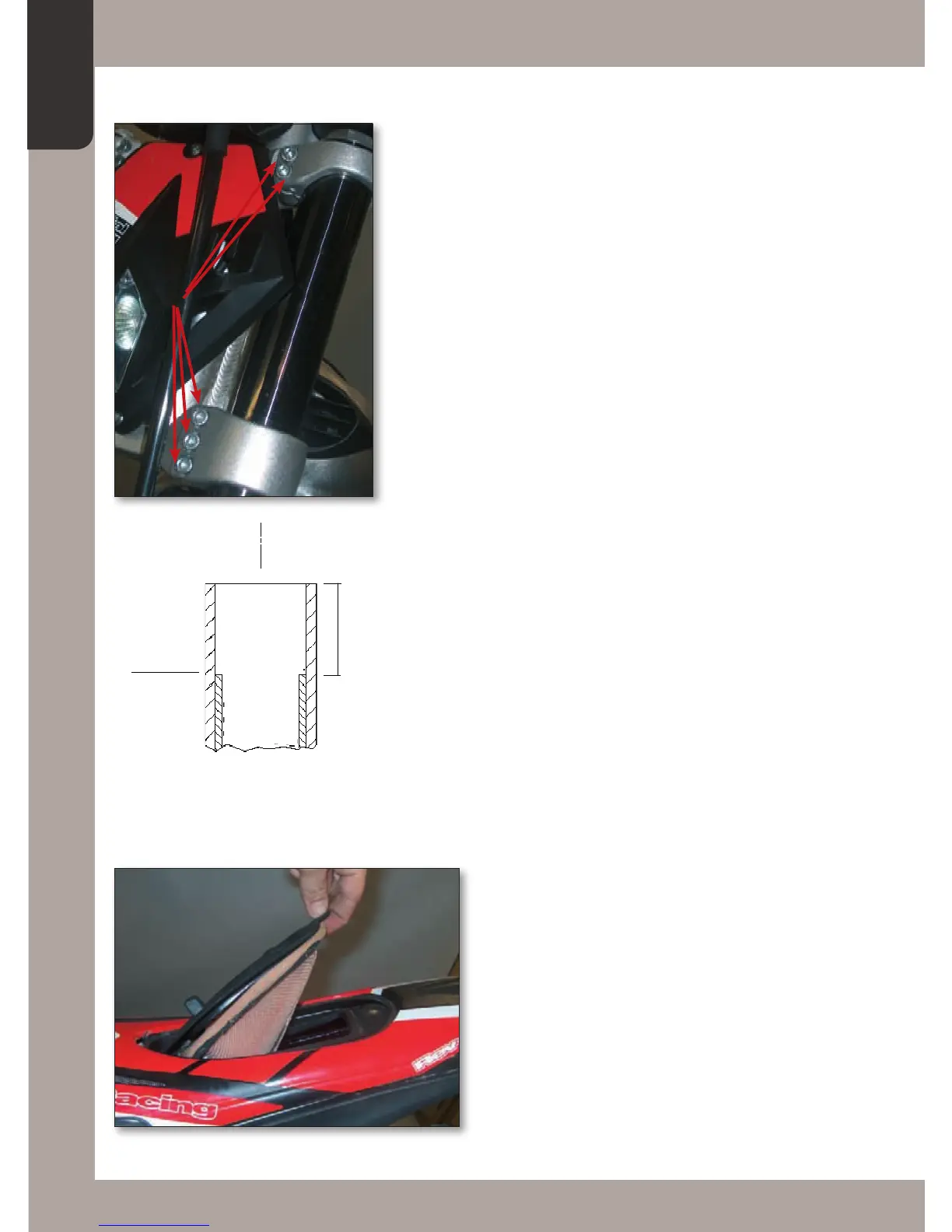

Left fork leg
To change the fork oil, follow the steps below:
1) Take out the front wheel.
2) Remove the handlebars
3) Slack off the fork stanchion pinch bolts (A).
4) Unscrew the fork leg cap.
5) Remove the spring and drain the oil completely.
6) Refill with fork with oil (0J01) up to the level shown in
the diagram, with fork leg fully compressed. Then refit
the spring.
Note:
Change the fluids in accordance with the intervals
in the table on page 29, using the lubricants rec-
ommended on page 13.
Check periodically and, if necessary, remove any
residues of dirt that may remain between the fork
seal and the dust cover, by removing the dust
cover.
Note:
Recommended tightening torque 7.8: 9.1 Nm.
AIR FILTER
To access the filter, you only need to unscrew the rear
retaining screw for the cover and remove the cover itself,
then follow the steps below:
- Remove the front bolt securing the filter.
- Remove the filter frame and the filter.
- Wash it with soap and water.
- Dry it.
- Soak it in filter oil, squeezing out the excess so that it
does not drip.
- If necessary, clean the inside of the filter box too.
- Refit all parts. We recommend assembling the frame to
the filter in advance.
Note:
- If the filter is very dirty, wash it first with petrol,
and then with water and shampoo.
- If you find that the filter is damaged, replace it
immediately.
Warning:
After each time the air filter box is opened,
check that nothing is left inside which could
end up in the engine and damage it.
Clean the filter each time the bike is used
