31
betamotor.com
4
A
C
B
E
D
F
2MM

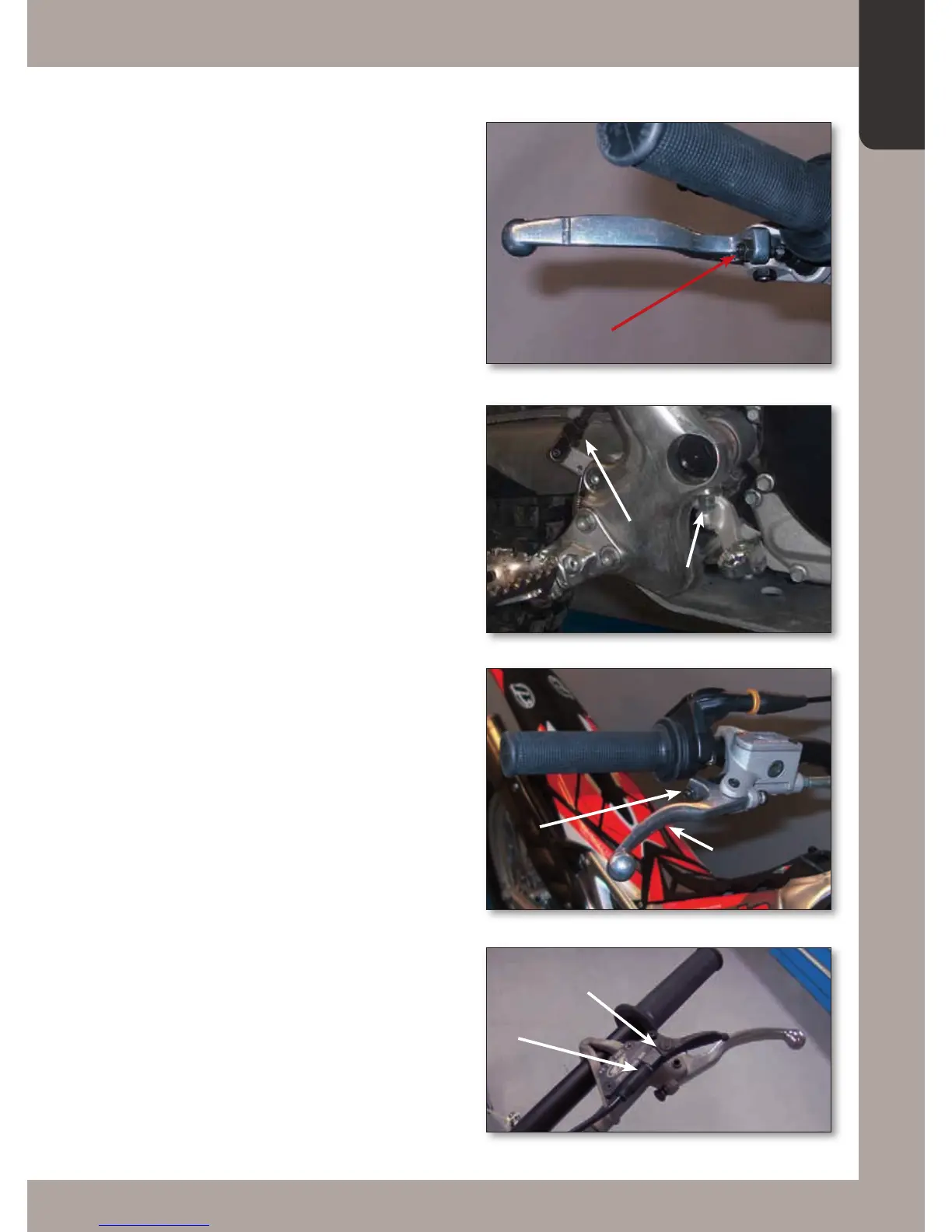

Adjustment
ENGLISH
for this reason it requires only ordinary maintenance. If
you wish to adjust the position of the lever, use adjuster
screw A.
Rear brake
The rear brake is of disc type with hydraulic control.
You can alter the pedal height using adjusters B and C.
We recommend that you leave a minimum of free clear-
ance.
CLUTCH ADJUSTMENT
The only adjustment that can be made on the clutch is
altering
the position of the clutch lever E.
To make this adjustment, use adjuster D.
Hot Start lever adjustment
To make this adjustment, use adjuster F.
Note:
You need to leave around 2 mm clearance be-
tween the lever and the stop on the handlebar.
