3
CHECKS AND MAINTENANCE
48
GB
E
F
17Nm
12Nm

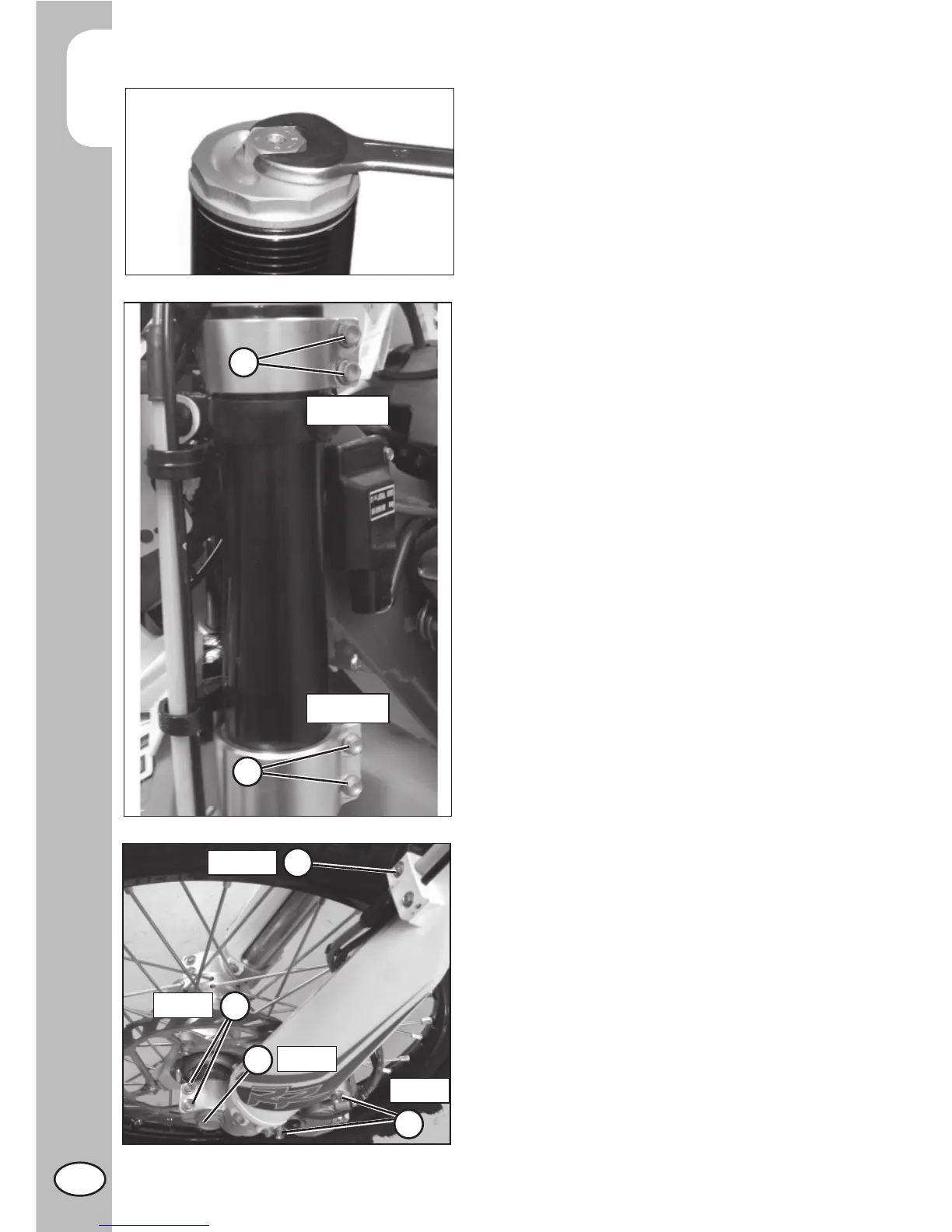

• Tighten the cap to the completely exten-
ded leg.
• Insert the legs into the plates. Once the
leg has been positioned at the desired
extension, tighten screws E at 17Nm and
F at 12Nm, after the screws have been
greased.
• Apply the wheel complete with spacers,
pin and cap C, which will be tightened to
50Nm. Tighten the screws D to 10Nm.
Apply the brake caliper and apply thre-
adlock of average intensity onto screws
B. Tighten to 35Nm.
Apply the cable gland U-bolt and tighten
the screws A to 1.5 Nm.
C
A
B
D
1,5Nm
10Nm
50Nm
35Nm
