4
ADJUSTMENTS
65
GB
SUSPENSIONS
TELESCOPIC FORK

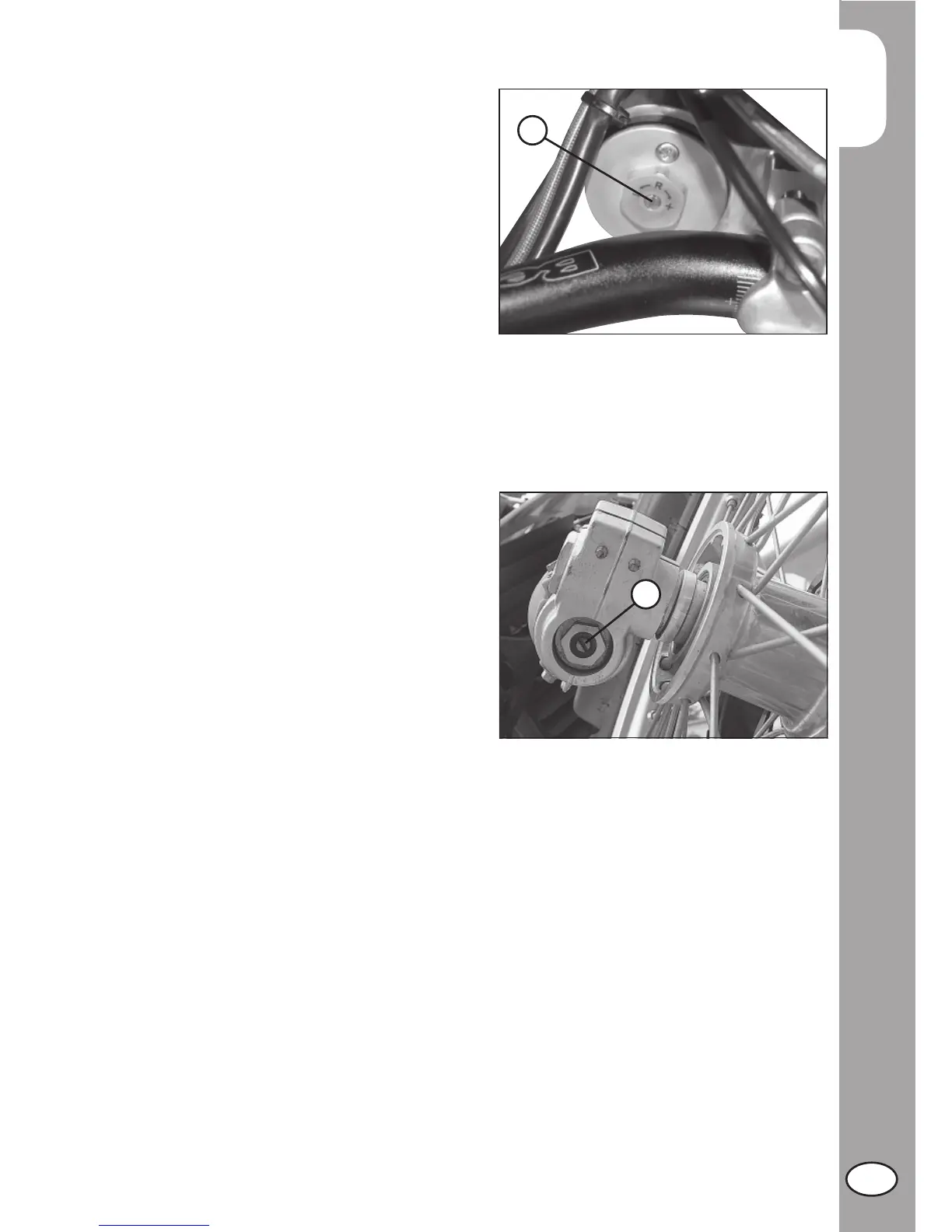

ADJUSTING THE REBOUND DAMPER
The hydraulic rebound damper determines
the behaviour of the telescopic fork during
extension and can be adjusted by means
of screw A. Turning the screw clockwise
(towards the + sign) increases the action
of the rebound damper; turning it anticlock-
wise (towards the – sign) decreases the
action of the rebound damper.
Standard adjustment RR 4t:
14 clicks from the completely closed position
ADJUSTING THE COMPRESSION
DAMPER
The hydraulic compression damper deter-
mines the behaviour of the telescopic fork
during compression and can be adjusted
by means of screw B ocated at the lower
end of the fork legs. Turning the screw
clockwise increases the action of the com-
pression damper; turning it anticlockwise
decreases the action of the compression
damper.
Standard adjustment RR 4t:
14 clicks from the completely closed
position
B
A
