BT-1 user manual
Page 5 of 70
3 Printer outline pictures and dimension

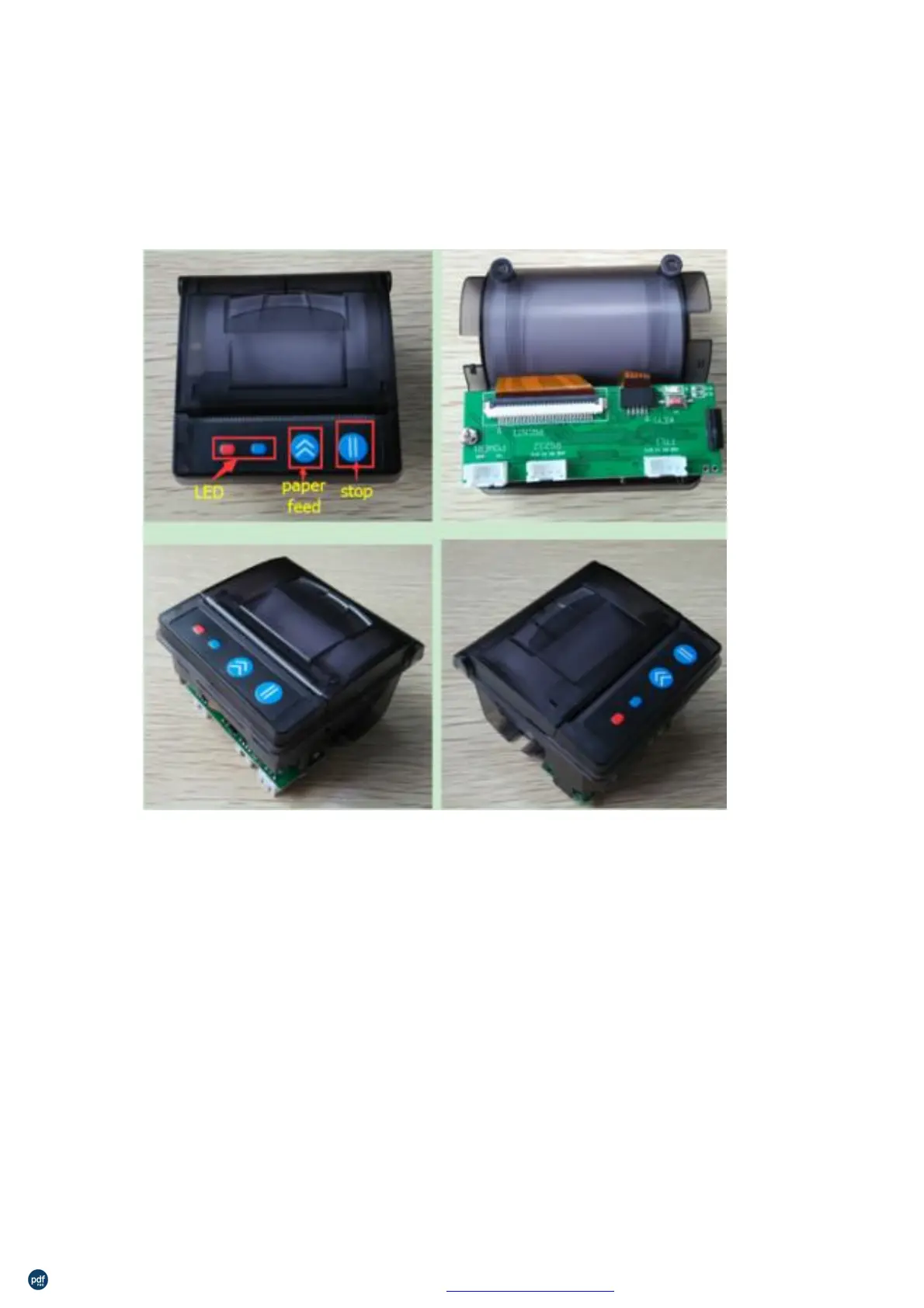

3.1 Outline pictures
λ
λ
λ
λ
λ
Outline dimension: 76.8Wx77.4Dx47.6H mm
Embedded dimension: 72.8Wx73.4Dx34.65H mm
Front panel Size: 76.8Wx77.4D mm
Embedded depth: 34.65 mm
Max diameter of paper roll: 40 mm
3.2 Dimension
Outline is as follows:
