Beyerdynamic Opus 300 - Page 30

english
31

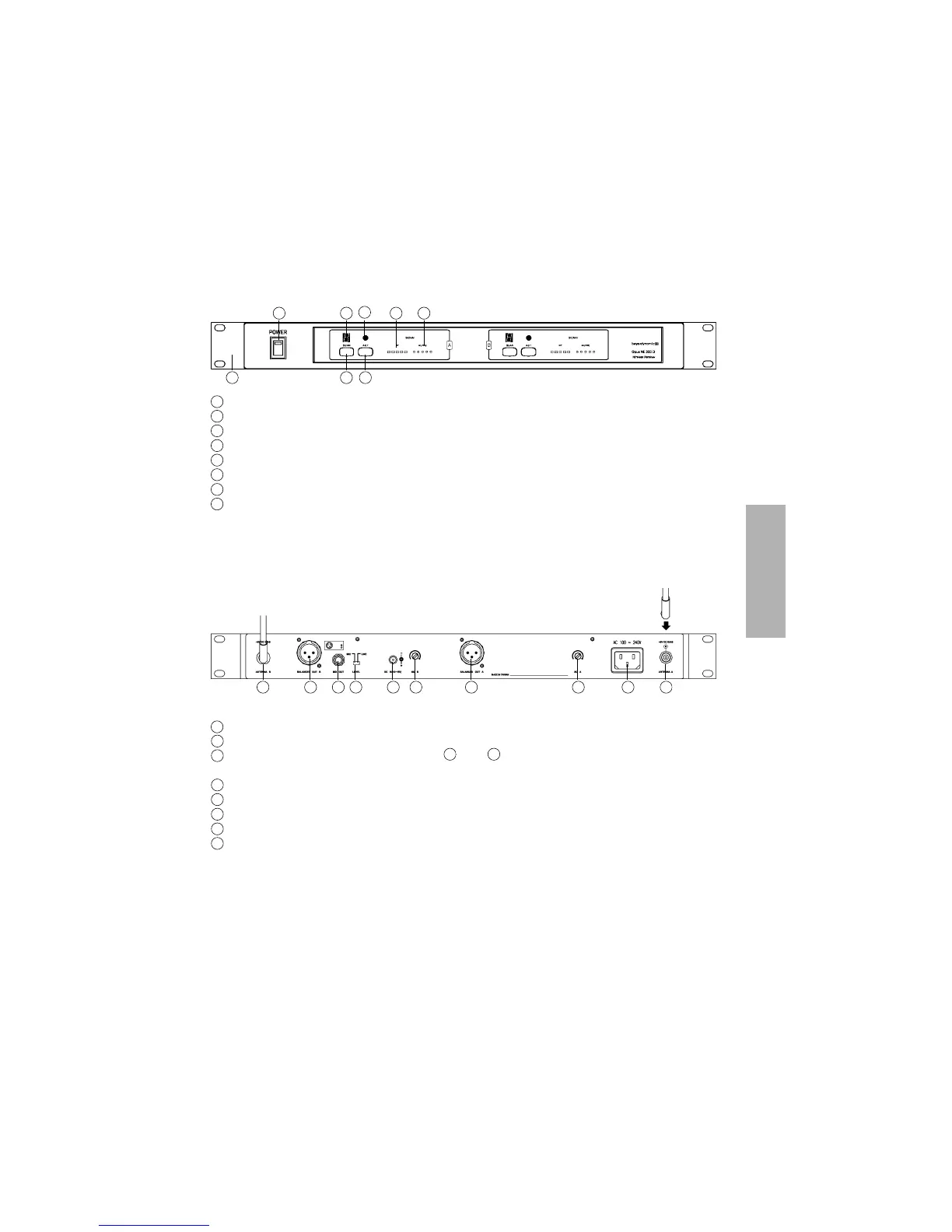

On/Off-switch with LED indicator
Scan button
Channel indicator
RF level indicator
ACT indicator
AF level indicator
ACT button
19" rack mounting bracket (optional accessory)
Rear view - NE 300 D
Antenna input B. TNC socket. With power supply for antenna amplifier.
Audio output, 3-pin XLR, balanced
Mic/Line level switch for audio output and . “Mic” for microphone level, “Line” for
Line out level.
Audio output, 1/4" jack (6.35 mm), unbalanced
Variable Squelch control
DC connection for power supply unit, 12 V DC
Antenna input A. TNC socket. With power supply for antenna amplifier.
Power connection, 85 - 265 volts AC
Front view - NE 300 D
1
2
3 4
5
6
78
9
1
2
3
4
5
6
7
8
10 101112 13 1314 1516
9
10
11
12
10 12
13
14
15
16
