english
41

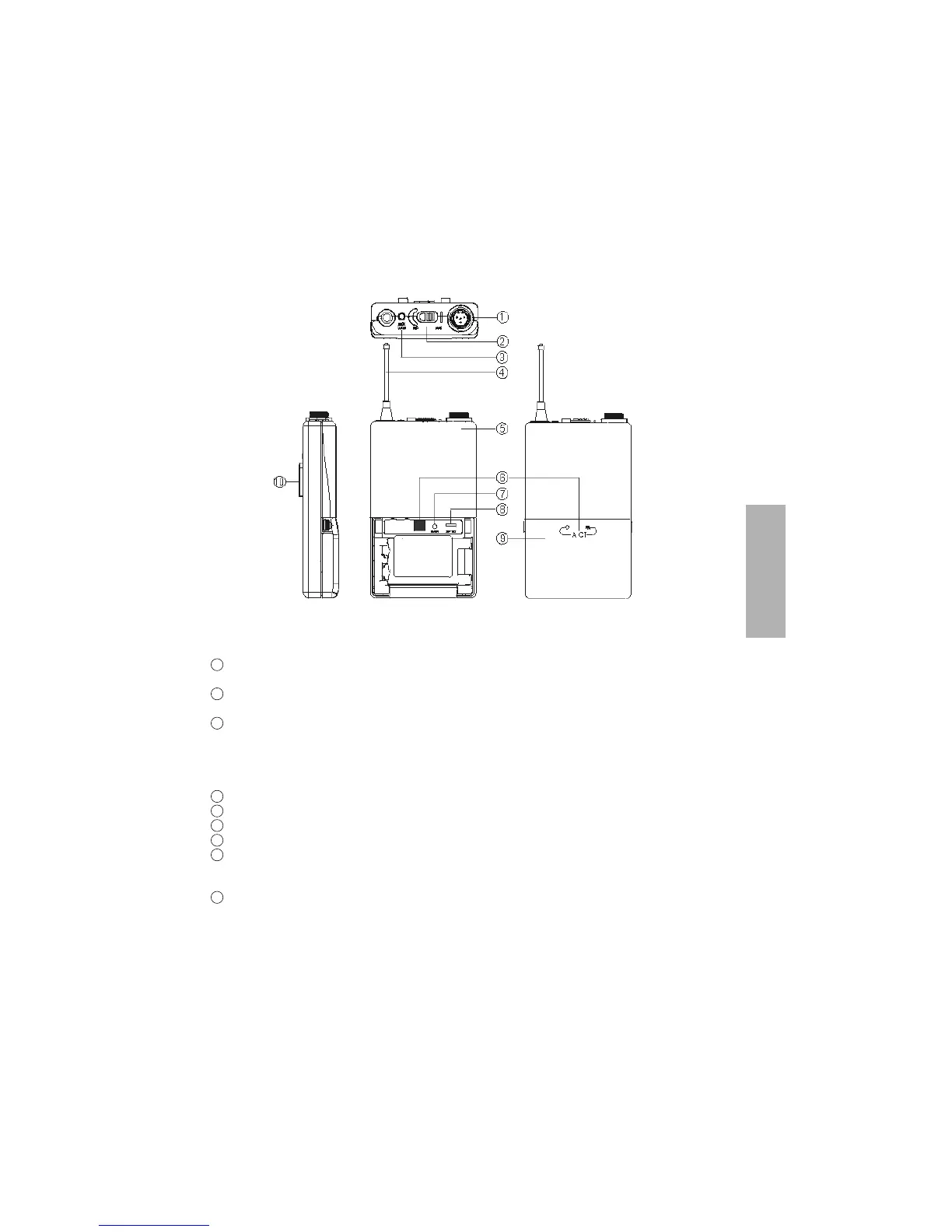

3. TS 300 Beltpack Transmitter
3.1 Controls and Indicators
Audio input socket, 4-pin connection for microphones (lavalier, headsets). There are 5
different connections.
ON/OFF switch (ON = switch to “ON“-position; OFF = switch to “OFF“-position). Switch
off the transmitter when not in use.
Battery status LED to indicate the power on / off and battery status.
(a) When the beltpack transmitter is switched on this LED will flash for a moment to
indicate the normal battery status.
(b) When the LED stays red after having switched on the transmitter the battery is too
weak and must be replaced.
Transmitting antenna
Casing
Infrared receiving diode for ACT function
Gain control to adjust input gain
GT/MT switch: When you use electric guitars this switch must be in the “GT“-position. In
the GT mode the gain control is deactivated. Switch to the “MT“-position when you use
condenser and wired microphones. In the MT mode the gain control is activated.
Battery compartment and cover
1
2
3
4
5
6
7
8
9
