Beyerdynamic Opus 300 - NE 300 Diversity Receiver; Controls and Indicators

30

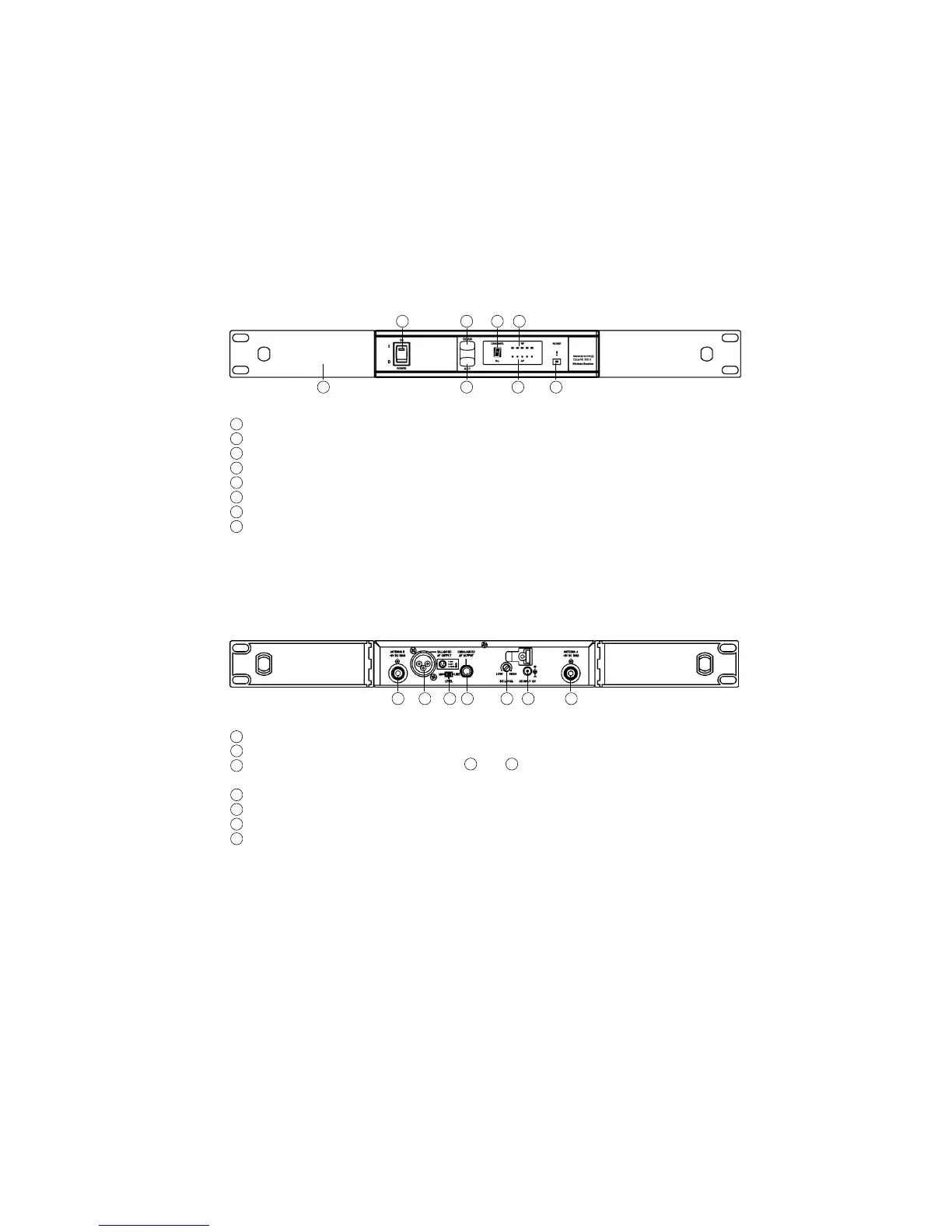

1. NE 300 Diversity Receiver
1.1 Controls and Indicators
Front view - NE 300 S
Rear view - NE 300 S
On/Off-switch with LED indicator
Scan button
Channel indicator
RF level indicator
Noise indicator to display RF-interferences
AF level indicator
ACT button
19" rack mounting bracket (optional accessory)
1 2 3 4
5678
1
2
3
4
5
6
7
8
Antenna input B. TNC socket. With power supply for antenna amplifier.
Audio output, 3-pin XLR, balanced
Mic/Line level switch for audio output and . “Mic” for microphone level, “Line” for
Line out level.
Audio output, 1/4" jack (6.35 mm), unbalanced
Variable Squelch control
DC connection for power supply unit, 12 V DC
Antenna input A. TNC socket. With power supply for antenna amplifier.
9
10 11 12 13 14 15
9
10
11
12
10 12
13
14
15
