1.11 ZAS 800 Antenna Splitter

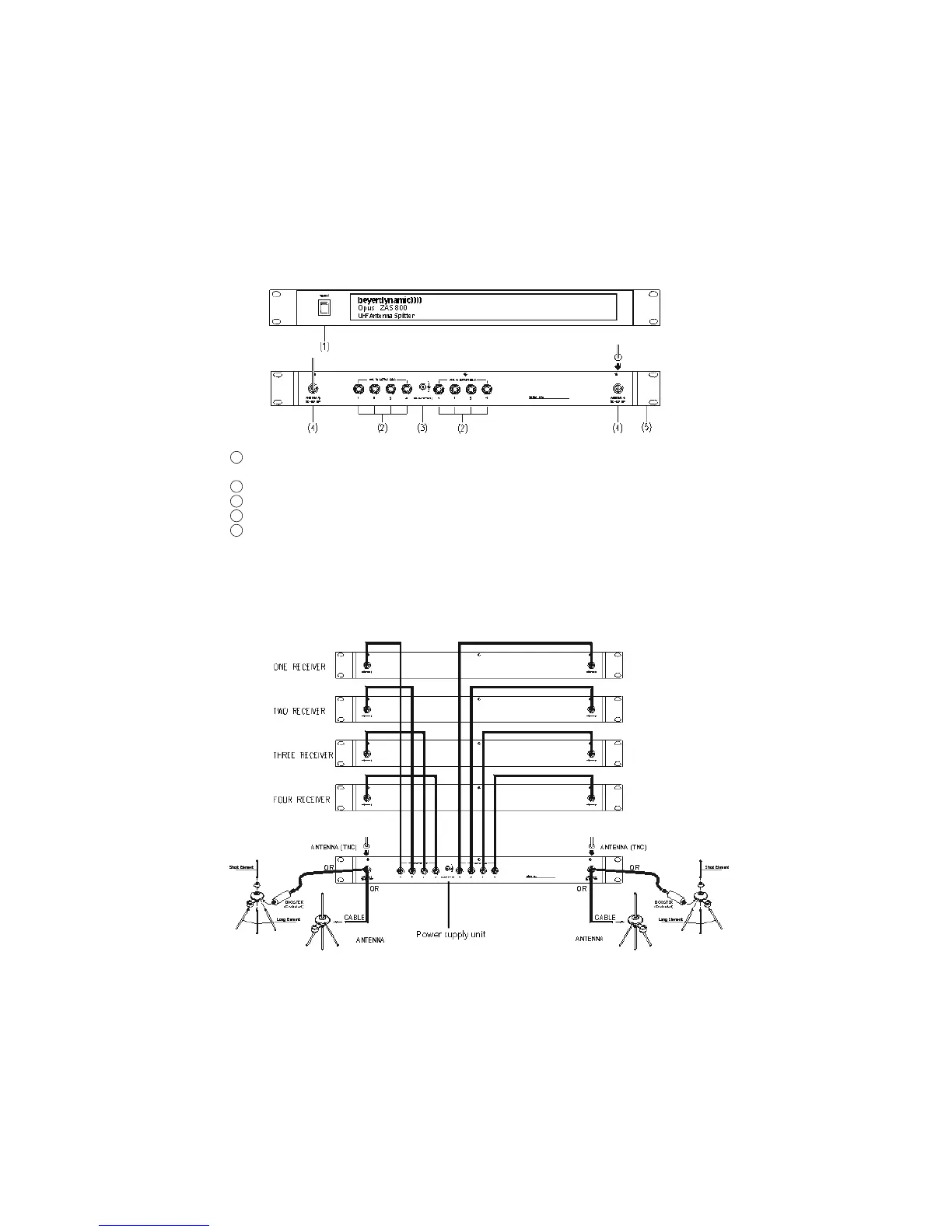

1.11.1 Controls and Indicators
On/Off switch and power on LED. When the antenna splitter is switched on, the red
LED will illuminate.
Outputs to connect the receivers
DC-connection to connect the DC power supply unit (12 V)
Antenna sockets A/B. DC-Out: 8 V / 170 mA
Mounting brackets for 19" rack mounting
1.11.2 Installation
1
2
3
4
5
