1.7 ZAS 800 Antenna Splitter

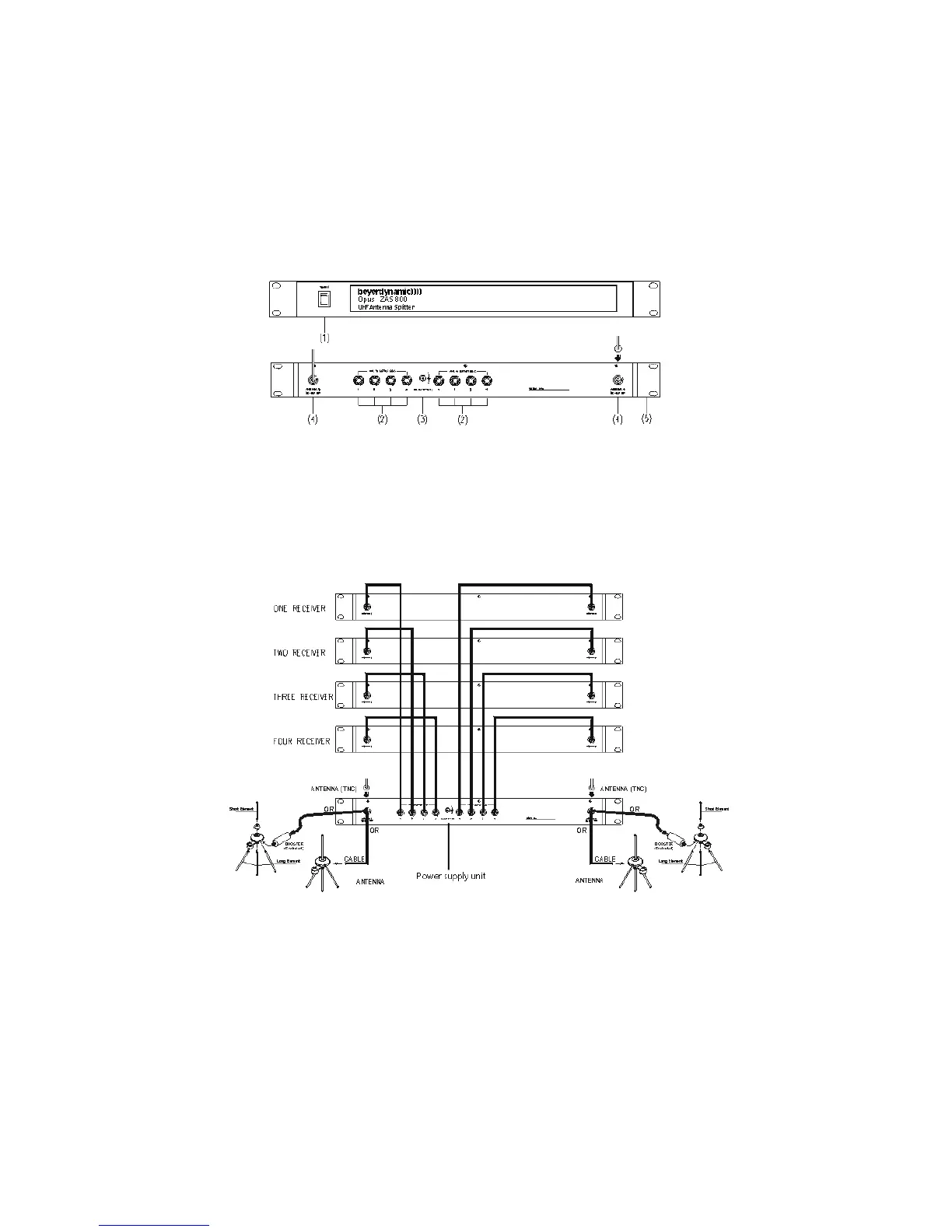

1.7.1 Controls and Indicators
(1) On/Off switch and power on LED. When the antenna splitter is switched on, the red
LED will illuminate.
(2) Outputs to connect the receivers
(3) DC-connection to connect the DC power supply unit (12 V)
(4) Antenna sockets A/B. DC-Out: 8 V / 170 mA
(5) Mounting brackets for 19“ rack mounting
1.7.2 Installation
1. Mount the ZAS 800 antenna splitter and the NE 800 receivers into a 19" rack by using the
mounting brackets.
2. Connect the supplied antennae to the antenna sockets A/B (4). You can also use optional
remote antennae. For mounting the antennae on the front use the optional FB-30 mount-
ing bracket.
