BFT PHOBOS N BT Installer's Reference Guide

A
B
A
90°
90°
B
90°
90°
PIVOT POINT
PIVOT POINT
PHOBOS' PIVOT POINT
Gate hinge
Gate frame
Gate
post
C

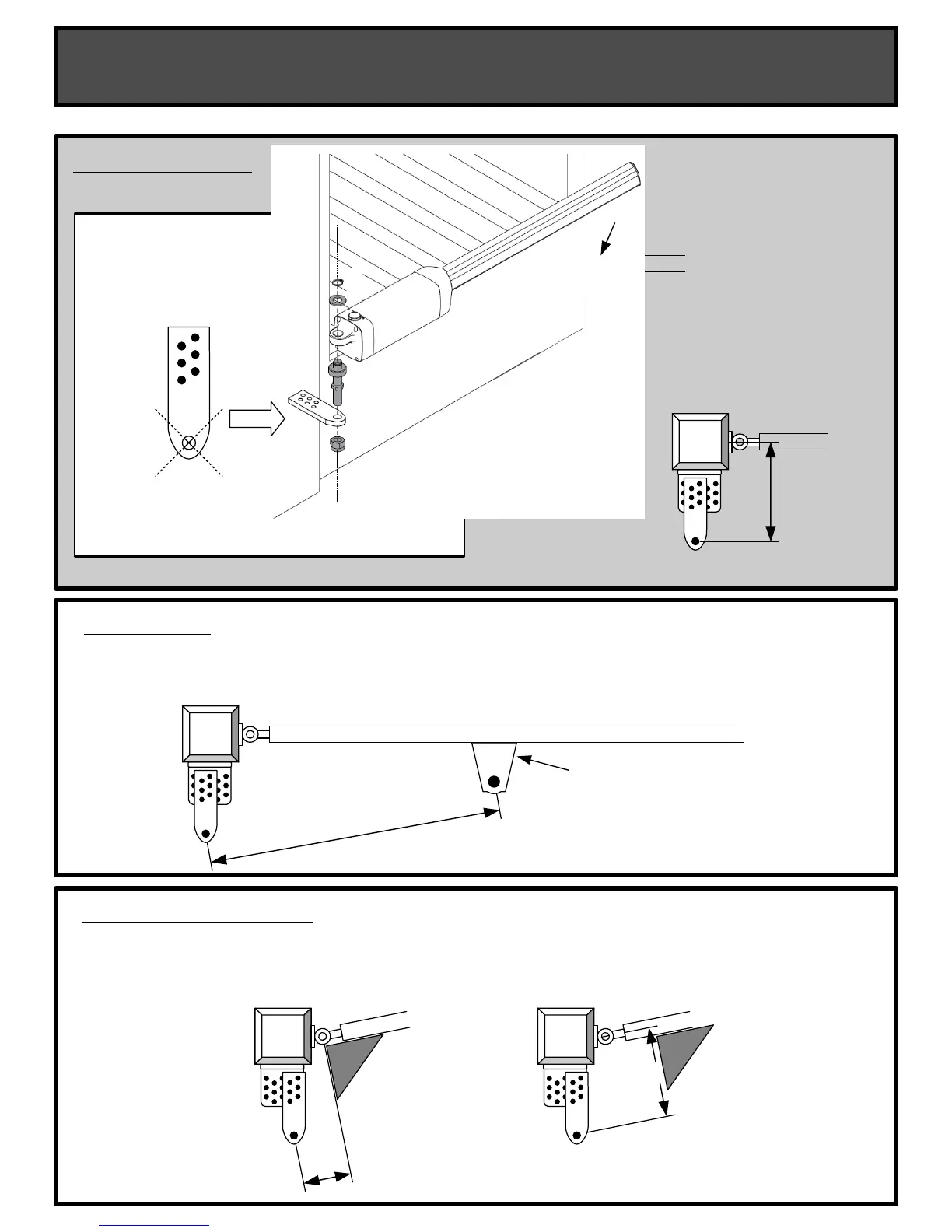

C DIMENSION - For C dimension, the measurement is taken from the Phobos pivot point
to the center of the large hole on the gate bracket WITH THE GATE ON ITS FULLY
CLOSED POSITION.
Gate bracket
A & B DIMENSIONS - For A and B dimensions, the measurement is taken from the center
of the gate's hinge point to the center of the Phobos pivot point.
SQUARE WITH THE GATE - It is very important that the measurements are taken using
the gate frame fully closed as perpendicular angle reference. If a fully closed gate is not
square with the gate post, you must make the proper angle adjustments.
DEFINING THE BRACKET GEOMETRY4
For Push-to-Open applications, please call Tech Support at 877-995-8155
