BFT PHOBOS N BT Installer's Reference Guide

Table 2.1
IDEAL GEOMETRY - A symmetrical geometry will give you even speed and torque throughout the entire
movement of the gate as well as equally strong leverage to hold the gate in position at both open and close ends
of strokes. If you are welding the post bracket, when possible, use the geometry in table 1:
Table 1
USING THE ARB BRACKETS - The ARB adjustable brackets simplify the installation process.
The tables 2.1 and 2.2 gives you different options depending on the three most common gate
hinge offsets. These dimensions only apply to installations where the fully closed gate is square
with the gate post. DO NOT DEVIATE FROM THE DIMENSIONS ON THE TABLES
Gate hinge
Gate frame
Gate
post
Hinge offset
Gate hinge offset – The gate
hinge offset is the distance
from the center of the gate
hinge to the inside edge of the
gate post
ARB
Table 2.2
A B C ARB
1-1/2” 5-1/8” 6-3/4” 27-1/2” 5-1/4”
2” 5-1/8” 6-5/8” 27-1/2” 4-5/8”
3” 4” 7-5/8” 27-1/2” 4-5/8”
HINGE
OFFSET
A B C ARB
1-1/2” 7-3/8” 7-3/8” 32-1/2” 5-7/8”
2” 7-1/2” 7-7/8” 32-1/2” 5-7/8”
3” 7-1/2” 7-7/8” 32-1/2” 4-7/8”
HINGE
OFFSET
PHOBOS N BT
ARB GEOMETRY
PHOBOS NL BT
ARB GEOMETRY

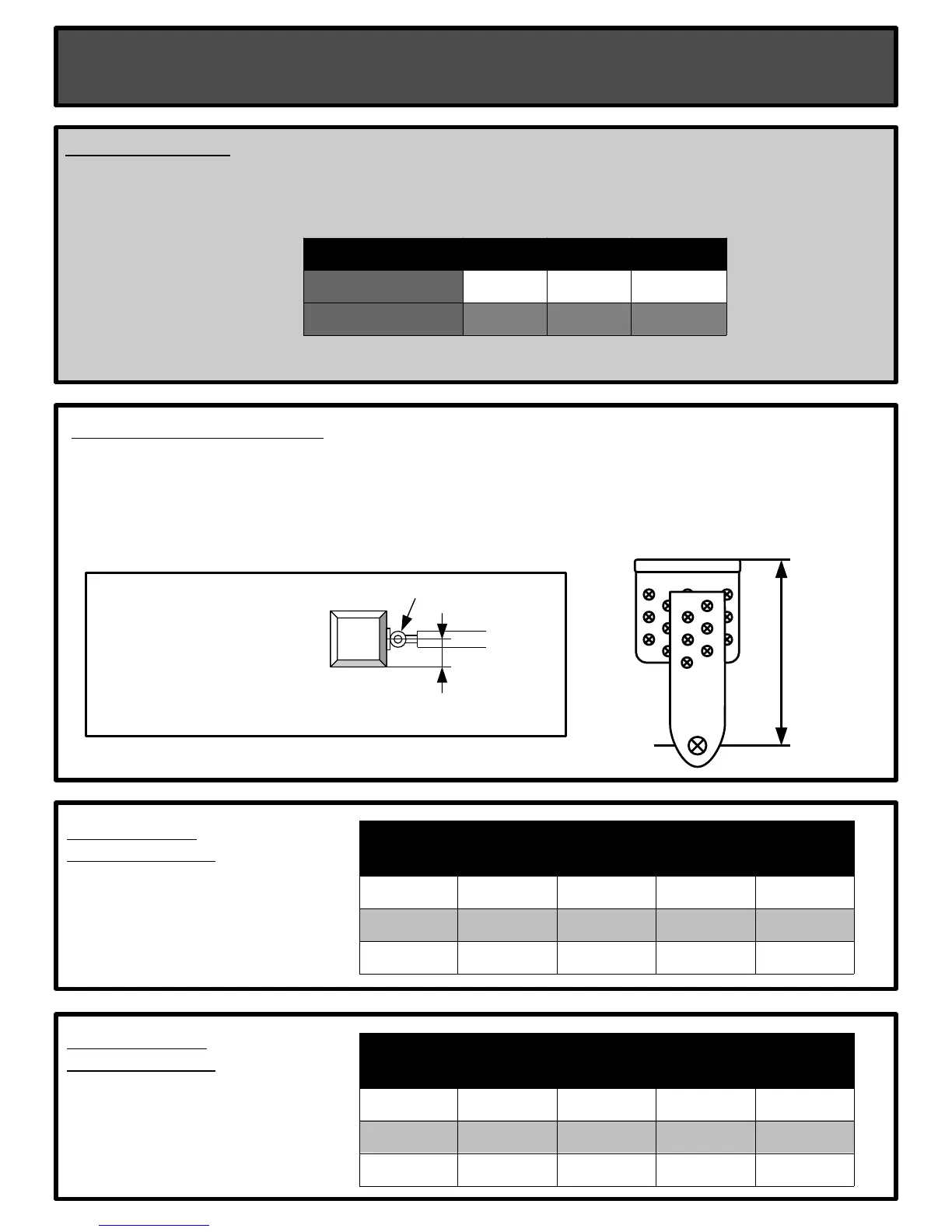

DETERMINING THE BEST GEOMETRY
5
A B C
PHOBOS N BT
PHOBOS N BT 5-7/8” 5-7/8” 27-1/2”
PHOBOS NL BT
PHOBOS NL BT 7-1/2” 7-1/2” 32-1/2”
For Push-to-Open applications, please call Tech Support at 877-995-8155
