INSTRUCTION

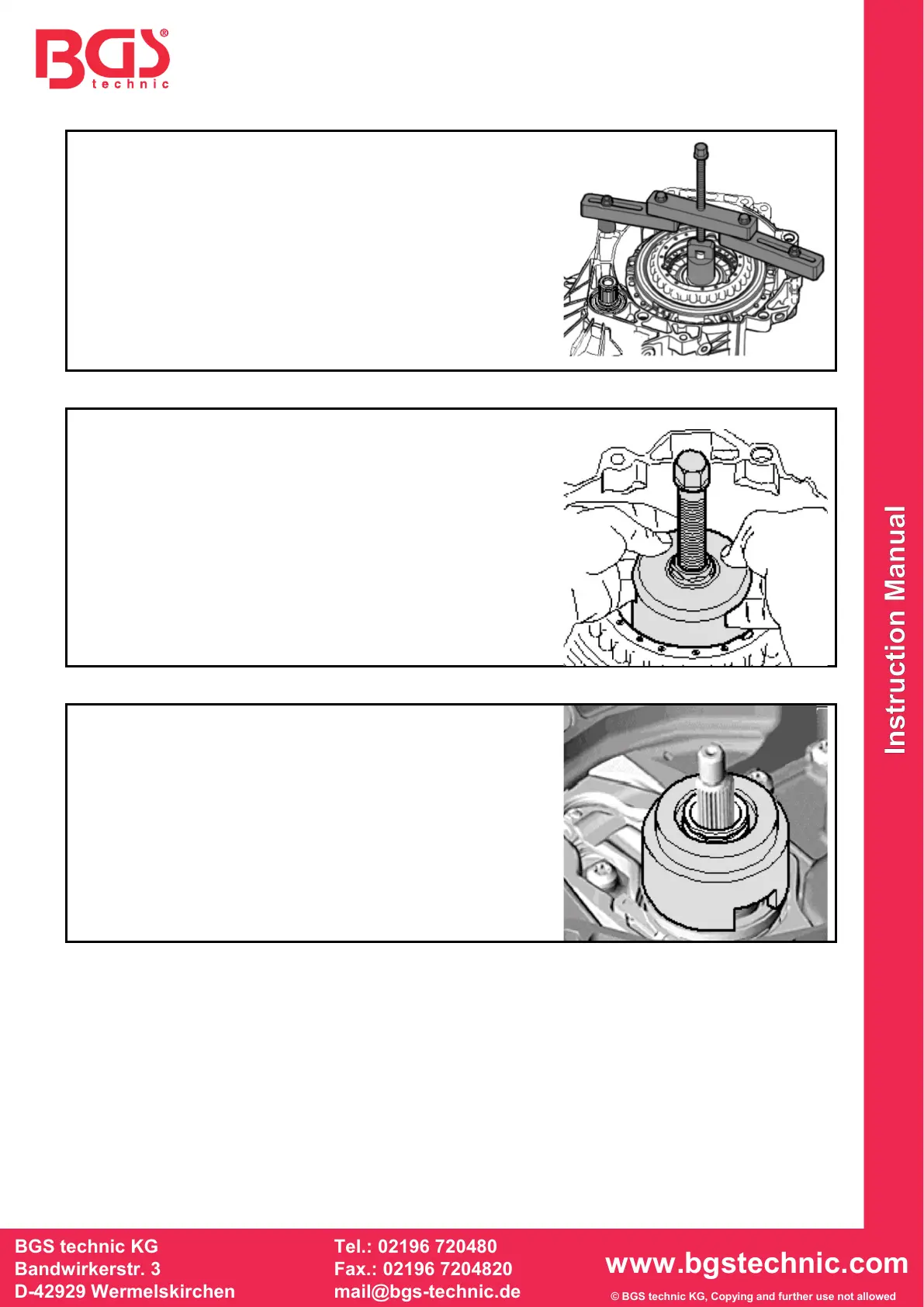

Support bridge
Remove clutch hub.
Disassemble lock ring of the clutch (this might be difficult
because the clutch is under strong tension
Release the clutch by using the support bridge as shown in
the picture.
Puller
After the disassembly of the lock ring you can attach the
puller as shown and disassemble the clutch by turning the
puller spindle.
Slip gauge
You can adjust the position of the engaging bearings by
using the slip gauge. Use a depth gauge for measuring. For
exact dimensions and detailed information about how to do
it, consult the manufacturer’s handbook.
ADJUSTMENT
Adjust position of the engaging bearings.
It is necessary to adjust the position of the engaging bearings after replacing the engaging bearings,
the starting lever or the starting lever seating.
The locating face (gearbox/motor) has to be completely level in order to make sure for a good rest for
the ruler.
