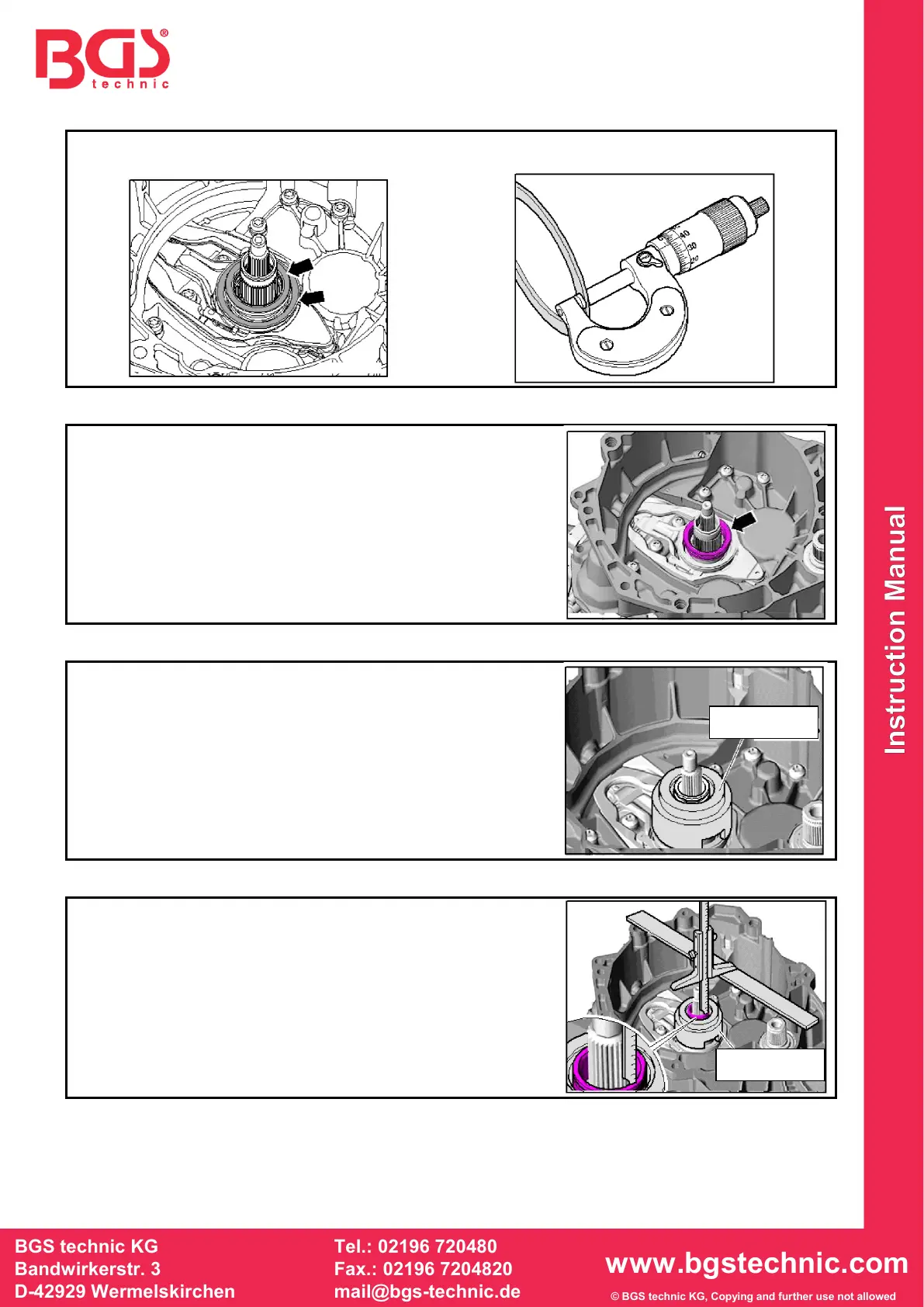

Installation of the two starting levers
and their engaging bearings.
Place the 1.4 millimeter thick dial on each
bearing (arrow).
As there are 2 clutches, there will be 2 steps of adjusting
them.
You will be doing several measurements while carrying out
this operation.
Each measurement requires different preparations and a few
simple calculations.
Please strictly follow these operating sequences.
You will start with the big engaging bearing for clutch 1 (K1).
First measurement for (K1)
Remove the small engaging bearing with the 1.4 millimeter
thick dial.
Place the slip gauge on the big engaging bearing.
Exert some pressure on the slip gauge and rotate it to make
sure for the correct seating of the slip gauge on the bearing.
Place the ruler on the gearbox flange and use the depth
gauge for your measurement of the depth down to the gear
shaft.
Note down the measured value as (B).
Example: B= 62.3 mm
