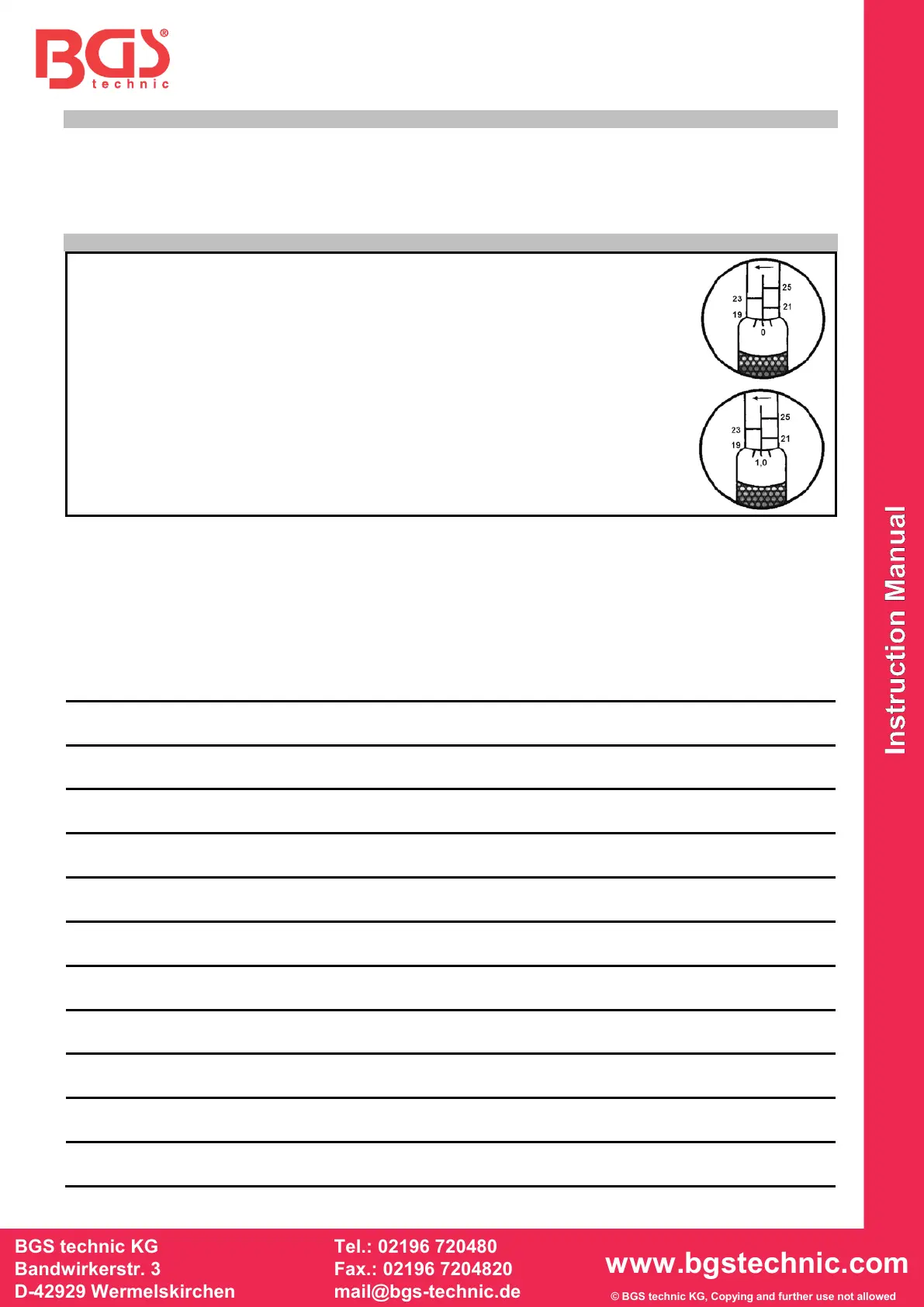

HOW TO USE
1. Balancing wrench in hand with graduations visible with the marked arrow Elementary Scale up
then unlock knurled handle by turning lock nut counter-clockwise.
2. Set amount of torque required by turning knurled handle to read exact amount on case
graduations.
EXAMPLE: 20 Nm
a) Turn knurled handle until the zero graduation on the bevel edge of the
knurled handle is lined up with the vertical mark on the case and is even
with the 19 Nm graduation.
b) Turn knurled handle clockwise until 1.0 Nm graduation on the level edge
of the handle is in line with the vertical line on the case.
c) Lock handle securely by turning lock nut clockwise, and now wrench is set
at 20 Nm which is ready to use.
3. Install a proper socket or attachment to the square drive and apply to nut or bolt and pull handle
until you feel and / or hear wrench click. Release the torque wrench, it is automatically reset for
next operation.
4. Do not continue to pull after wrench releases. Use special care at low torque settings that will pull
stop when wrench clicks.
