BH EMOTION ATOM - Pedal Assistance System Operation; Components of the Pedal Assistance System; The Pedal Assistance System; Overview of the Pedal-Assist Bike

Motor
Torque sensor
Ion Lithium battery
Display Panel
EN EN
ATOM & ATOMS USER MANUALUSER MANUAL ATOM & ATOMS
3332
2. OVERVIEW OF THE PEDAL-ASSIST BIKE 3. PEDAL ASSISTANCE SYSTEM OPERATION

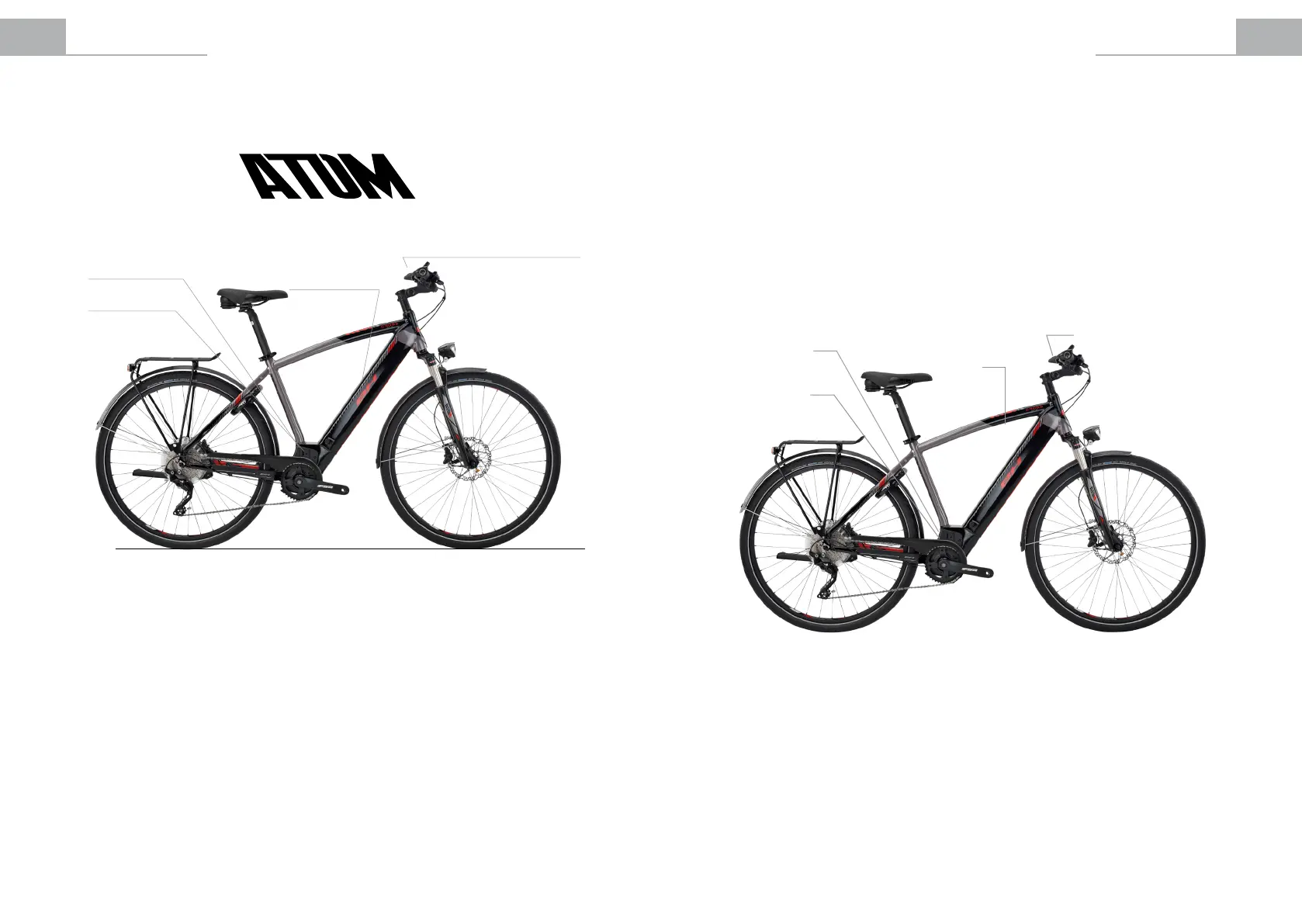

3.1 Components of the Pedal Assistance System
The BH BIKES pedal assistance system consists of the following components:
A. A motor, which drives the bicycle.
B. A display panel, which, among other things, allows you to select the assistance modes.
C. A batterythatpowerstheoperationofthemotorandcanbelocatedindi󰀨erentplaces.
D. A torque sensor that reads the force applied on the pedal by the user.
A
D
C
B
3.2 The Pedal Assistance System
The pedal assistance system is designed to provide the optimal amount of assisted power.
It provides assistance within a standard range, based on factors such as the pedalling force, the speed of the bicycle
and the drivetrain. The system does not provide assistance in the following situations:
 -Ifthedisplaypanelisswitchedo󰀨.
- When travelling at 25 km/h or faster.
- If you are not pedalling and the throttle function is released at 6 km/h.
- If there is no remaining battery life.
- If the assistance mode selected is 0% assistance.
