BHBikes ATOM - Pedal Assistance System Operation; Components of the Pedal Assistance System

Rear Motor System AWD SystemCentral Motor System
EVO AWD EASY GO
D
D D
A
A
A A
D
B
E
C
C
C
E
C
A
E
EN
USER MANUAL ATOM
32
ATOM EVO/NITRO
B
B
B
E

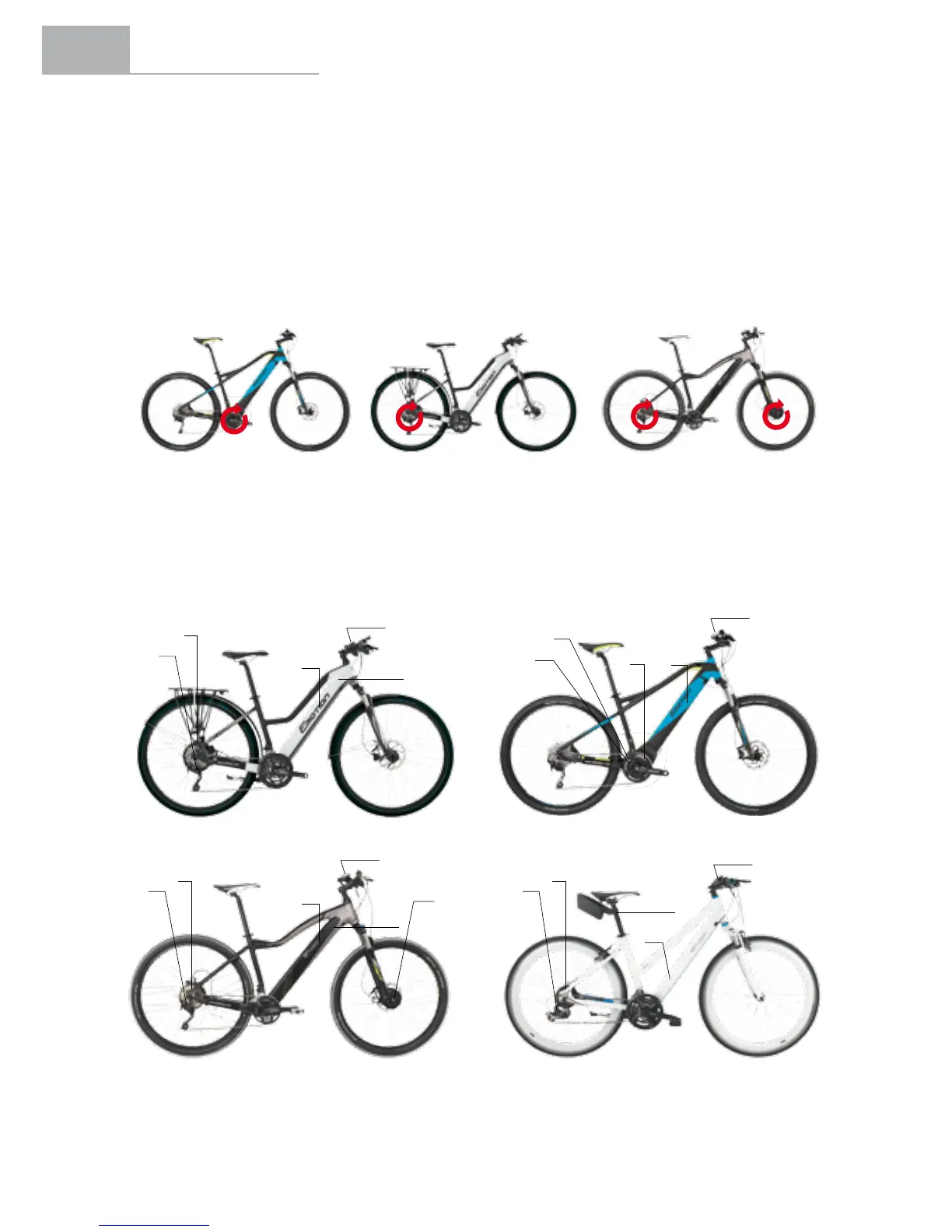

PEDAL ASSISTANCE SYSTEM OPERATION
Components of the Pedal Assistance System
The BH EMOTION pedal assistance system consists of the following components:
A. Amotor,whichdrivesthebicycle.Thelocationofthemotoridentiesthetypeofsystemused:
a. Central Motor System. Motor located on the bottom bracket axle.
b. Rear Motor System. Motor located on the rear hub.
c. AWD System (All Wheel Drive System). Two motors located on the front and rear hubs.
B. A display panel, which, among other things, allows you to select the assistance modes.
C. A battery that powers the operation of the motor and can be located in different places.
D. A torque sensor that reads the force applied on the pedal by the user.
E. A control system that acts as the brain of the system, receiving and sending signals to the other
components.
