Biasi MULTIPOINT 14S - Parts 14 S - 16 S

- 10 -
USE
DESCRIPTION OF UNIT
2.3 Parts 14S - 16S

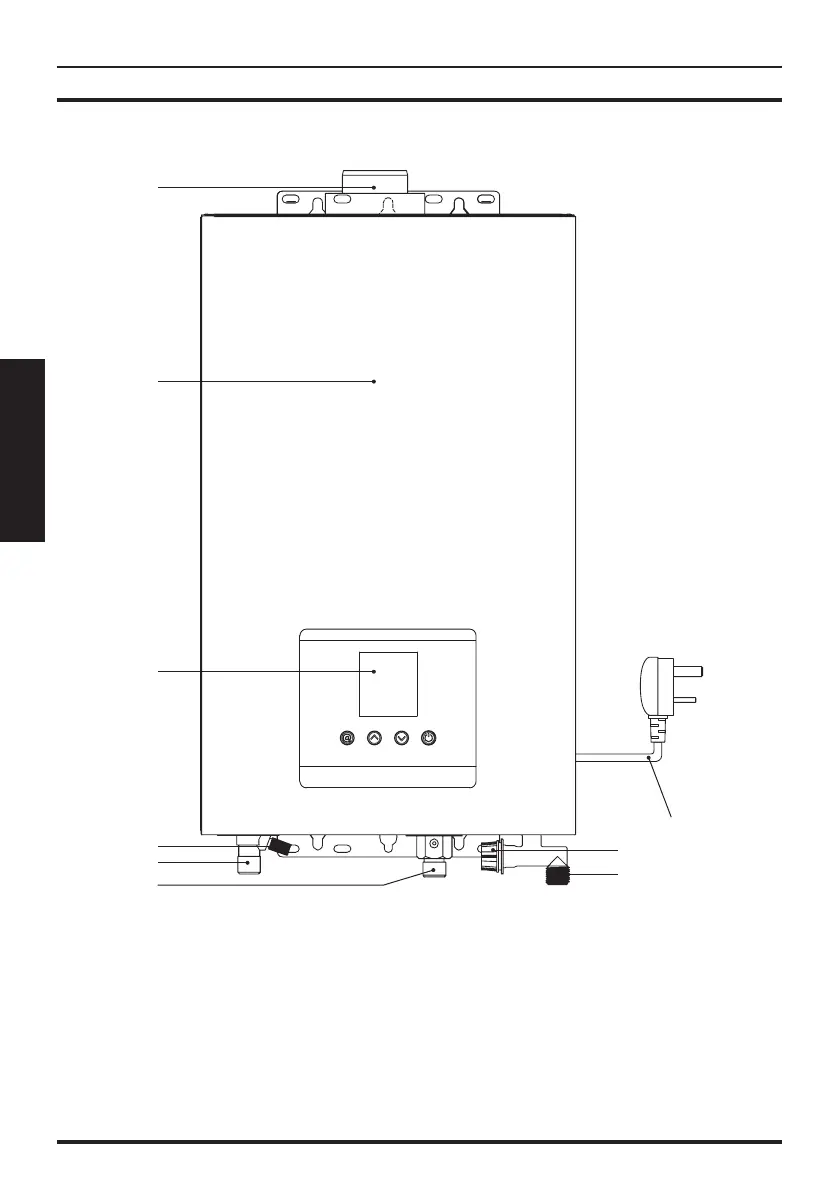

Figure 2.2
1 Flue duct connector
2 Front panel
3 Display and control panel
4 Safety valve discharge
5 Hot water outlet
6 Gas inlet
7 Cold water inlet
8 Cold water inlet filter
9 Power cord
1
2
3
5
4
8
9
7
6
