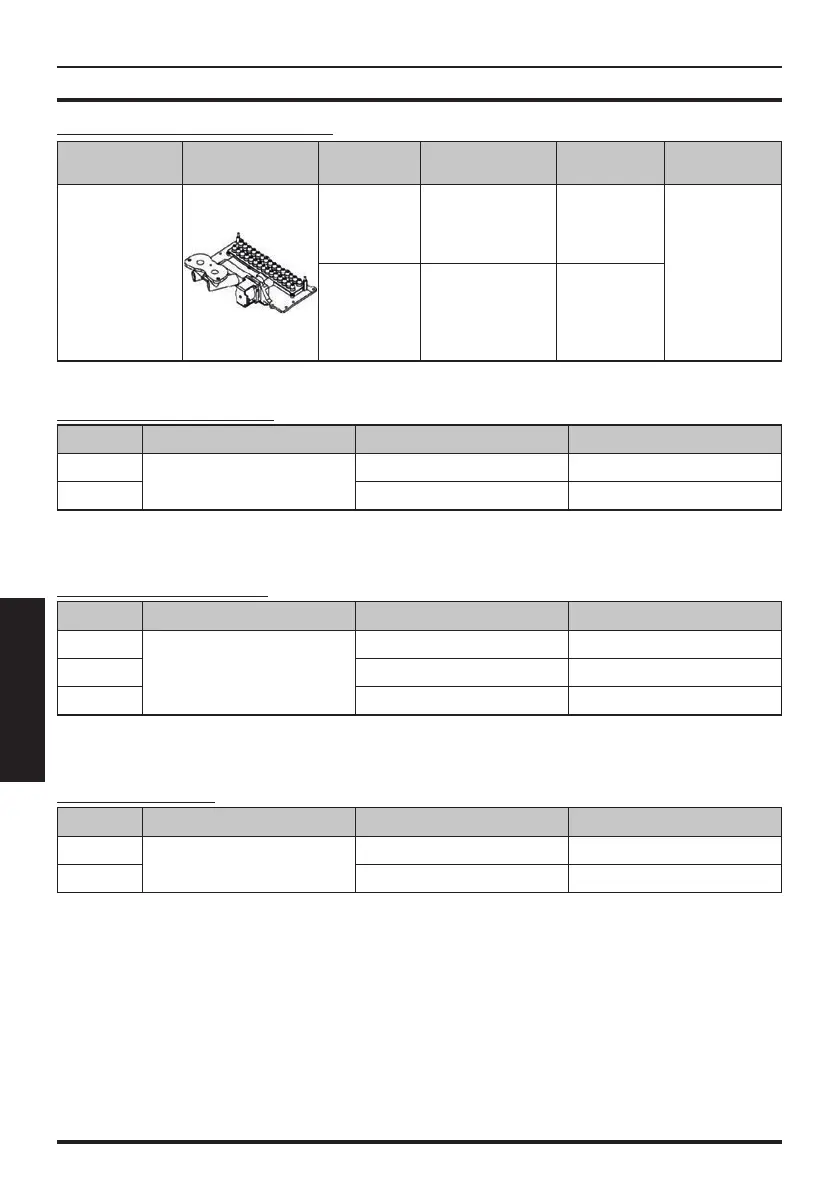

MULTIPOINT 16S Replaced part list
Replaced part
name
Diagram Gas type Figure No. Specification Note
Nozzle
G20 JSQ16L7_06_01B2
Hole Ø 0.74
Hole Ø 1.28
The nozzle size
is the same in
the same row.
The low line
is the smaller
size nozzle; the
upper row is
the larger size
nozzle.
G30
G31
JSQ16L7_06_01B3
Hole Ø 0.62
Hole Ø 0.88
Volume parameter settings
Figure 5.17
No. Displayed Symbol Parameter Parameter Description
1
L
14 14L
2 16 16L
Gas pressure at the burner
Figure 5.18
No. Displayed Symbol Parameter Parameter Description
1
q
12 G20
2 22 G30
3 19 G31
Water heater model
Figure 5.19
No. Displayed Symbol Parameter Model
2
F
02 14S
3 02 16S
