19" LCD MONITOR
REV A
13
5. Connections
5.1 Connecting the flat panel display
Note
All screening precautions contained in the corresponding EMC guidelines
must be observed. If these guidelines are not observed, interference signals
could penetrate the monitor.
Information on cable installation
Only screened cables are permitted for the signal connections.
All connectors should be of screw or locking types (as far as possible).
Signal and power cables must not be routed in the same duct.
The display must not share a power supply with motors or valves (glitches!).

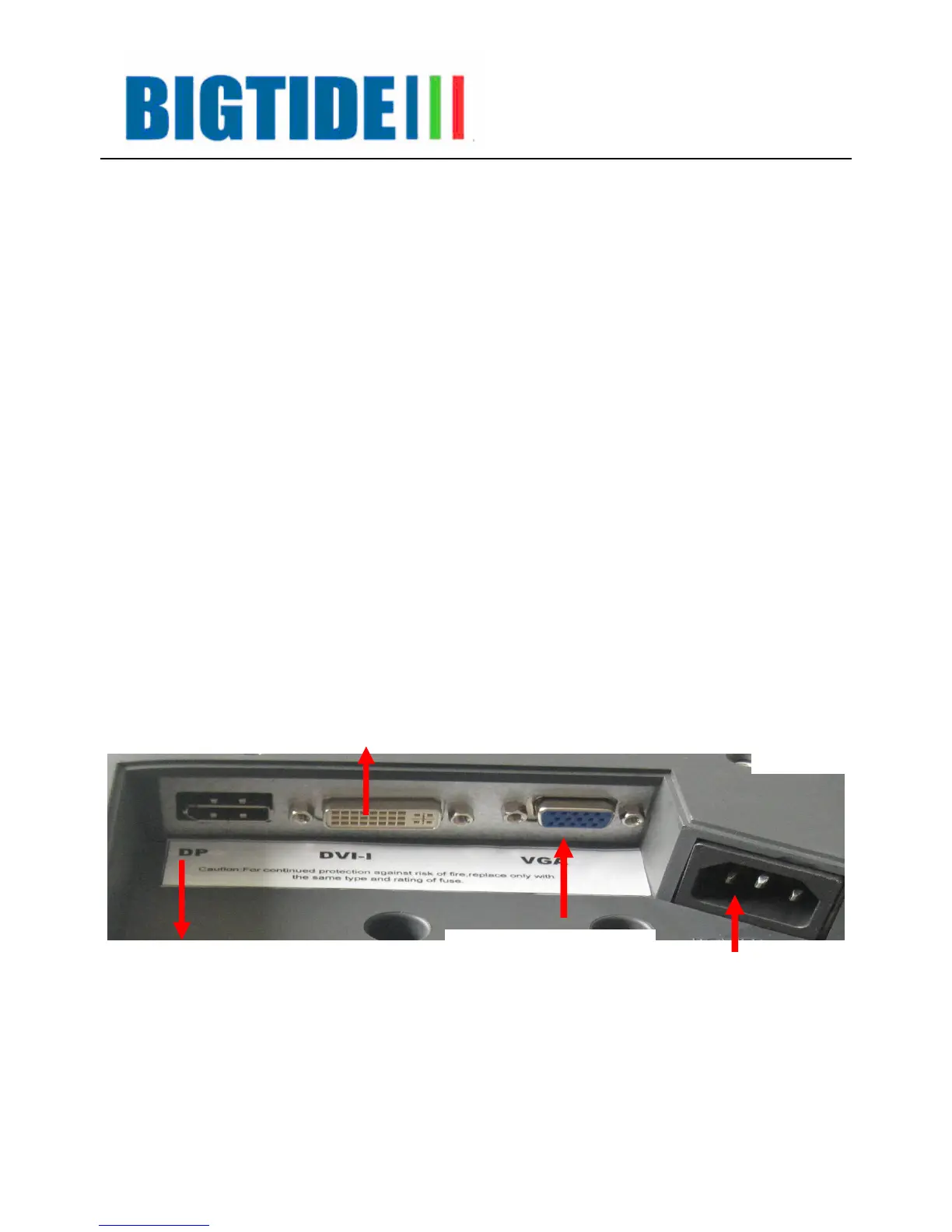

5.2 Connection panel
A connection panel for the signals and power supply is located at the rear of
the flat panel display underneath the stand and its cover.
5.3 Information on additional serial interface (Service Only)
Serial connection: you can connect the display via the 9pin D-SUB connector
to the computer for firmware updating and monitor test.
DVI-D
IN LET 3P IEC TYPE
15-PIN MIND-TYPE VGA
FEMALE CONNECTOR
DP
