SKR MINI MZ V1.0 User Guide Shenzhen BIGTREE Technology co., LTD.

7 / 9

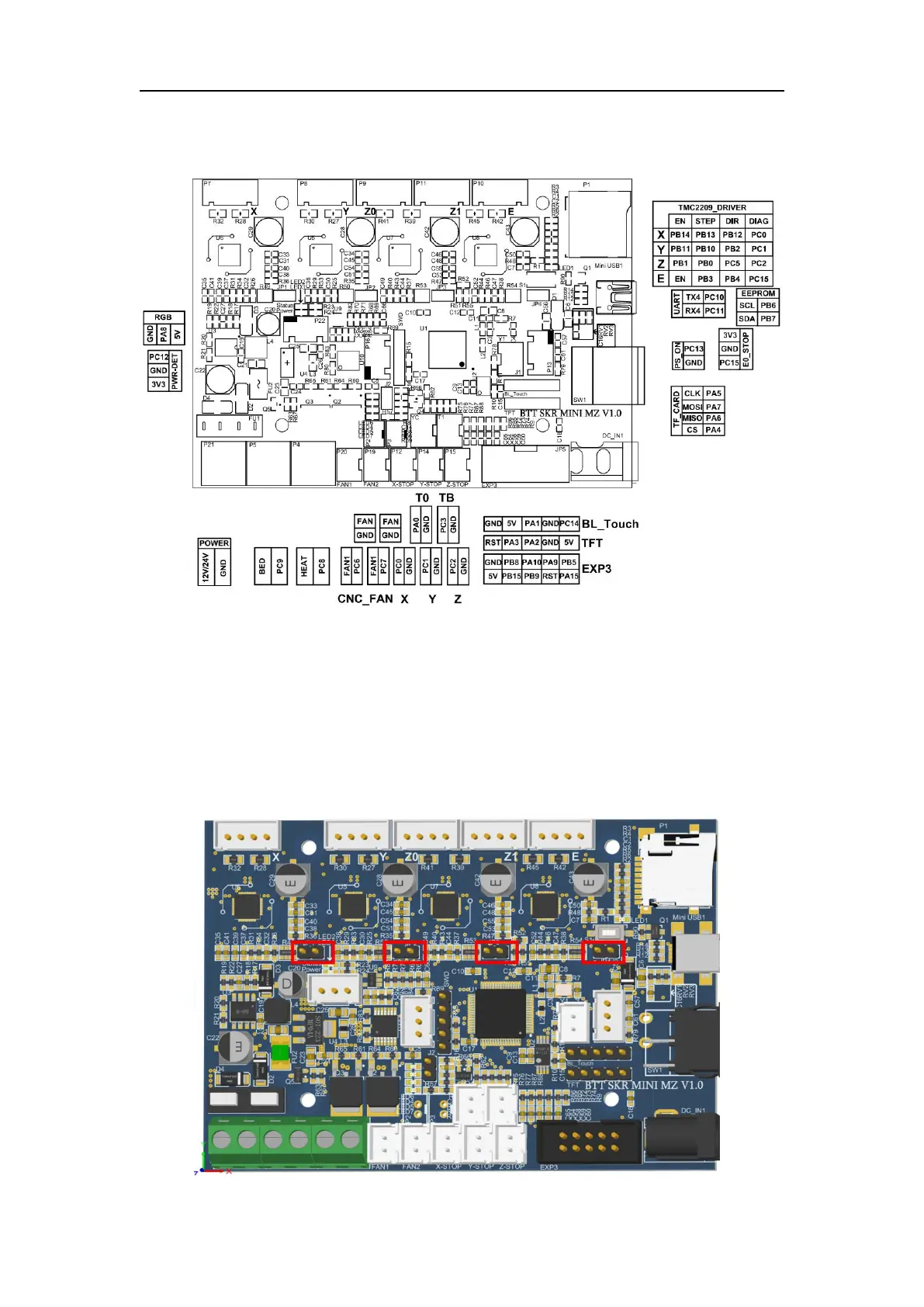

3.Motherboard Pin Diagram

For details, please refer to Pin file.

Ⅴ.Motherboard jumper description

1）If you need to use the Filament Break Detection function,

you need to connect the following 4 positions with a jumper cap：
