3 – OPERATION
PLATFORM CONTROLS JOYSTICK
Use the Joystick to operate drive and boom
functions from the platform control station.
1. Joystick Trigger
2. Toggle Switch

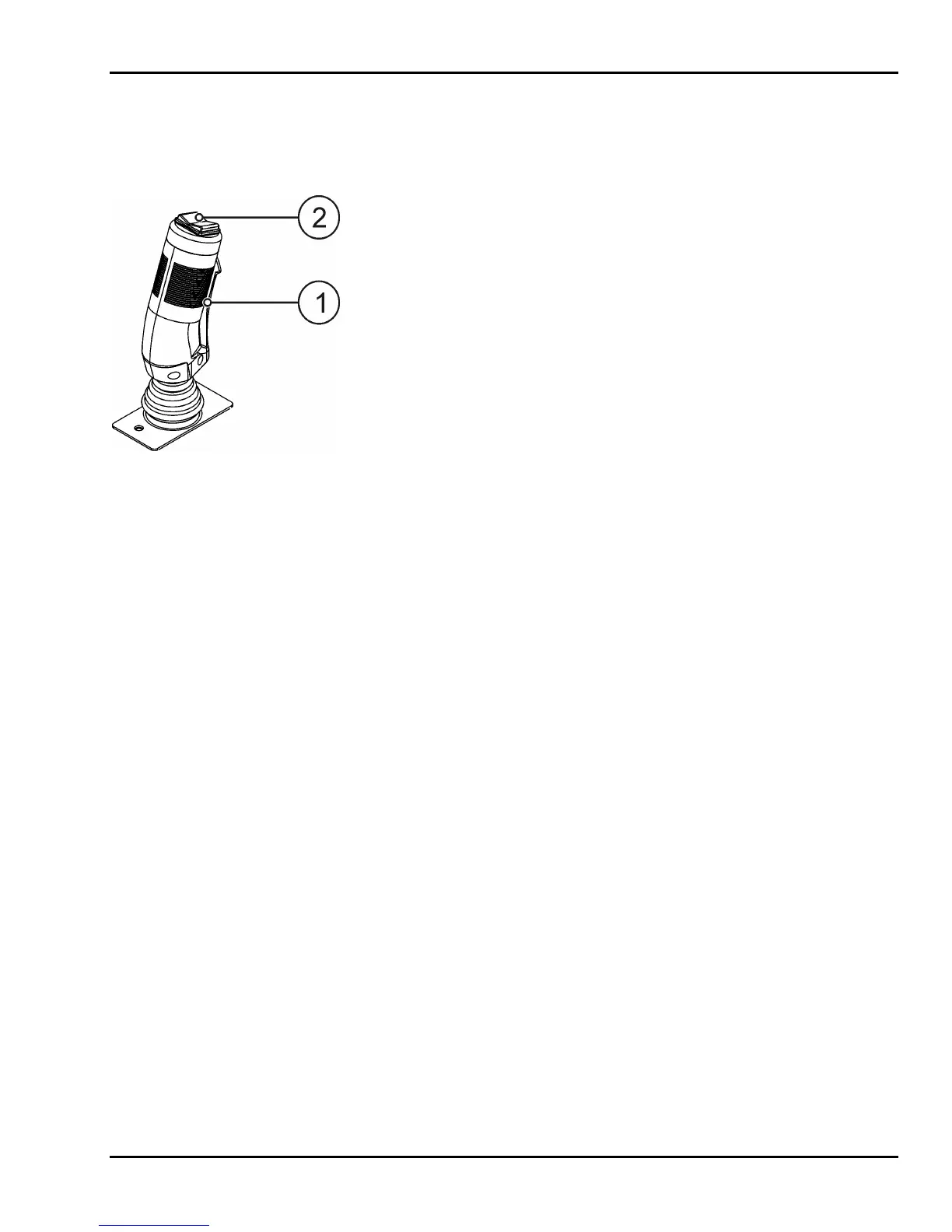

Figure 3-3. Platform Controls Joystick
1. Joystick Trigger
Depress the trigger after selecting a boom function
and move the joystick in the desired direction to
operate boom functions.
2. Toggle Switch
Use the toggle switch to control direction of boom
rotation and to steer the machine when using drive
functions.
