Bil-Jax 45XA - Boom Lift Transport

BILJAX 45XA
BOOM LIFT TRANSPORT
LIFTING INSTRUCTIONS TRANSPORT INSTRUCTIONS
Refer to Figure 3-10.
 Completely lower and retract booms.
 Secure boom and platform travel latches.
 Remove all loose materials from machine.
 Retract all outriggers to fully stowed position.
 Attach rigging only to the designated forklift
pockets (A).
 Adjust rigging to keep the machine level and to
minimize the risk of damage to machine.
 When using a forklift, use only the designated
forklift pockets. Follow all forklift operating
instructions as indicated by the forklift
manufacturer.
 Only trained and authorized personnel should
attempt to lift the boom using a crane or forklift.
Refer to Figure 3-10.
 Verify that truck or trailer is parked on a firm and
level surface.
 Completely lower and retract boom.
 Secure boom travel latches.
 Retract all outriggers to fully stowed position.
 Load boom onto truck or trailer.
 Secure the boom lift to the trailer bed using
straps or chains. Use only the two attachment
points beneath the machine, adjacent to the
outriggers (B).
 Adjust as necessary to prevent damage to
rigging or machine.

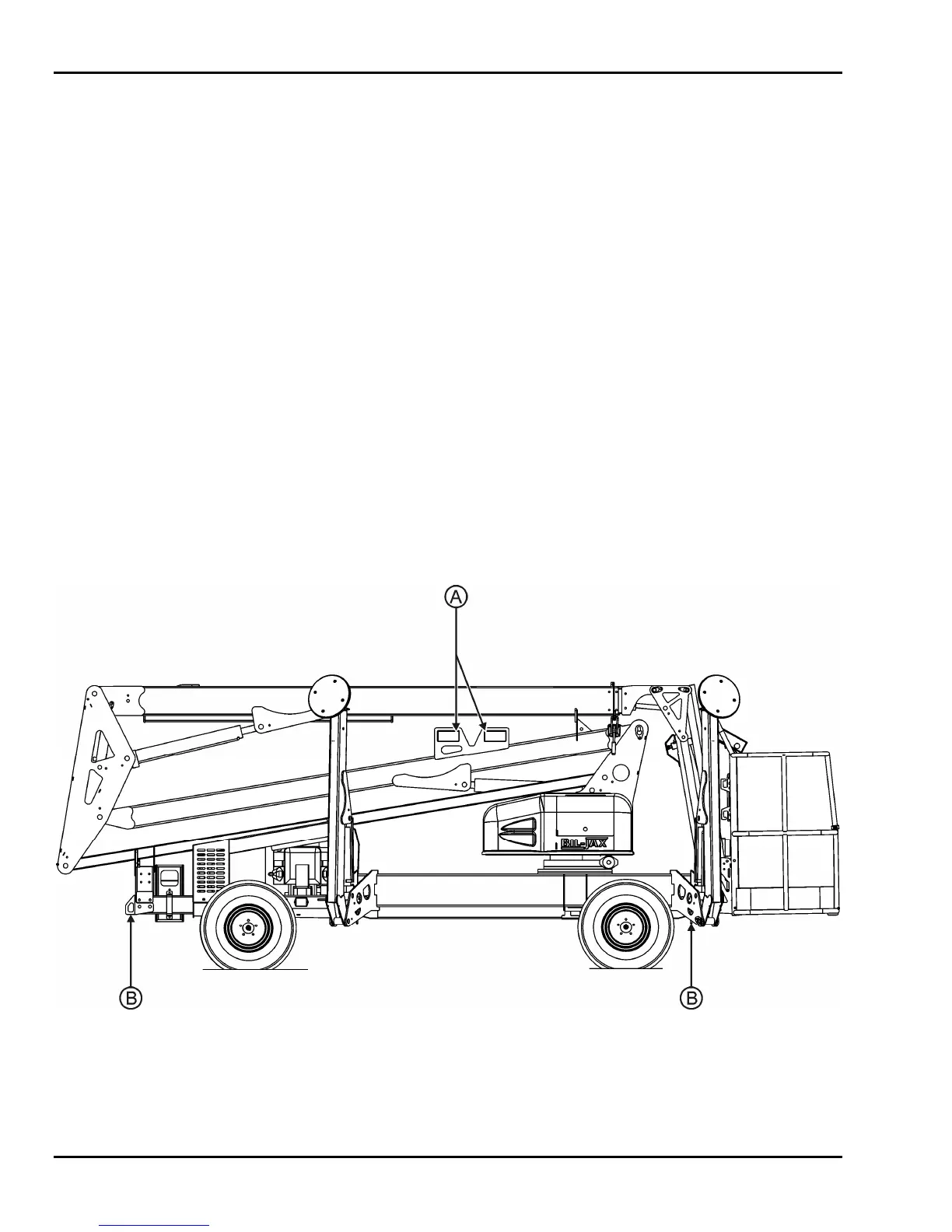

Figure 3-10. Lift and Transport Instructions
