Billion BiPAC 5200 User Manual

Features & Specifications
ATM and PPP Protocols
•
ATM Adaptation Layer Type 5 (AAL5)
•
Multiple Protocol over AAL5 (RFC 2684, formerly RFC
1483)
•
Bridged or routed Ethernet encapsulation
•
VC and LLC based multiplexing
•
PPP over Ethernet (PPPoE)
•
PPP over ATM (RFC 2364)
•
OAM F4/F5
•
ATM QoS: UBR, CBR, VBR-rt, VBR-nrt
Management
•
Web-based configuration
•
Firmware upgrade and configuration data upload
and download via HTTP/FTP
•
SNMP v2 MIB supported
•
Supports DHCP server/client/relay
Models & Standards Support
•
BiPAC 5200(S)A: Annex A & Annex M
•
BiPAC 5200(S)B: Annex B
•
BiPAC 5200(S)U: U-R2
•
Annex A and Annex M: ADSL over POTS
•
Annex B and Annex U-R2: ADSL over ISDN
Hardware Specification
Physical Interface
•
LINE: ADSL port
•
LAN: 4-port 10/100M auto-crossover (MDI/MDI-X)
switch (Single port for BiPAC 5200S)
•
Factory default reset button
•
Power jack
Physical Specification
•
Dimensions: 5.20" x 3.70" x 1.38”
(132mm x 94mm x 35mm)
Power Requirement
•
(BiPAC 5200) Input: 12V DC, 1A
•
(BiPAC 5200S) Input: 12V AC, 1A
Billion Electric Co., Ltd.
8F, No.192, Sec.2, Chung Hsing Road,
Hsin Tien City, Taipei Hsien, Taiwan
TEL : +886-2-2914-5665
FAX : +866-2-2918-6731,
+886-2-2918-2895
E-mail : sales@billion.com
www.billion.com
ADSL Compliance
•
Compliant with ADSL Standard
- Full-rate ANSI T1.413 Issue 2
- G.dmt (ITU G.992.1)
- G.lite (ITU G.992.2)
- G.hs (ITU G.994.1)
- ADSL over ISDN/U-R2
•
Compliant with ADSL2 Standard
- G.dmt.bis (ITU G.992.3)
- ADSL2 Annex M (ITU G.992.3 Annex M)
(Available for BiPAC 5200(S)A model only)
•
Compliant with ADSL2+ Standard
- G.dmt.bisplus (ITU G.992.5)
- ADSL2+ Annex M (ITU G.992.5 Annex M)
(Available for BiPAC 5200(S)A model only)
Network Protocols and Features
•
NAT, static routing and RIP-1/2
•
NAT supports PAT and multimedia applications
•
Multi-to-multi NAT
•
Transparent Bridging
•
Dynamic Domain Name System (DDNS)
•
SNTP
•
DNS relay
Firewall & Virtual Private Network (VPN)
•
Built-in NAT Firewall
•
Prevent DoS attacks including Land Attack, Ping of Death,etc.
•
Anti probe function
•
Packet filtering
•
Password protection for system management
•
VPN pass-through
Operating Environment
• Operating temperature: 0 ~ 40ºC
• Storage temperature: -20 ~ 70ºC
• Humidity: 20 ~ 95% non-condensing

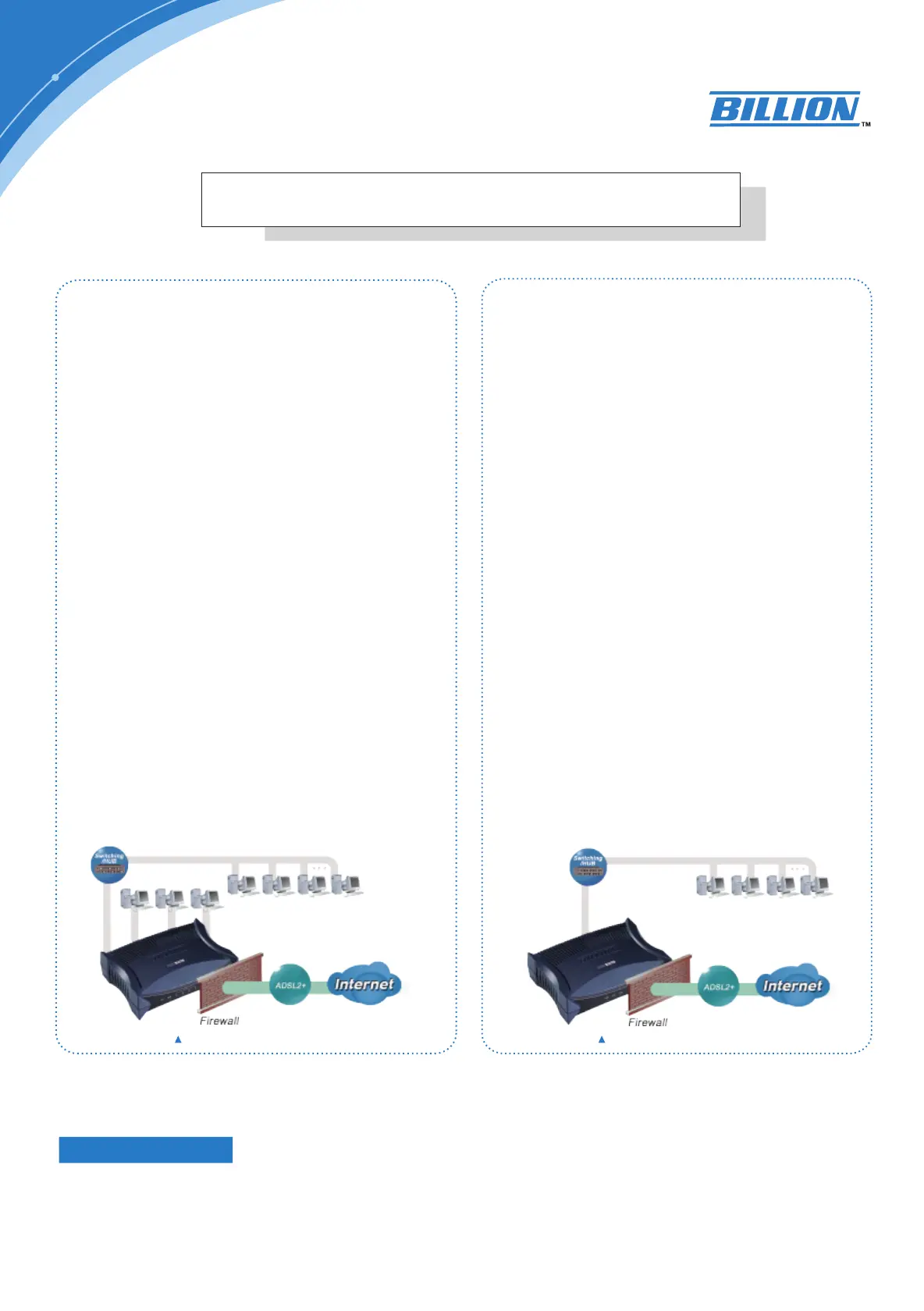

Application Diagram (BiPAC 5200)
Application Diagram (BiPAC 5200S)
Note:
1. The router may require firmware modification for certain ADSL2/2+/ Annex M DSLAMs
2. Specifications in this datasheet are subject to change without prior notice.

Billion BiPAC 5200 Specifications
