Quick Start Guide
6
Port Meaning
1 Power Switch
Power ON / OFF switch.
2 Power
Connect the supplied power adapter to this jack.
3 Reset
After the device is powered on, press it 6 seconds or above: to restore to factory
default settings (this is used when you cannot login to the router, e.g. forgot the
password)
4
Ethernet 1 ~ 4
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four LAN ports when
connecting to a PC or an office/home network of 10Mbps /100Mbps.
Note: Port #4 can be configured as a WAN Interface for Broadband connectivity.
5
DSL
Connect this port to the SHDSL.bis network with the RJ-11 telephone cable
provided.

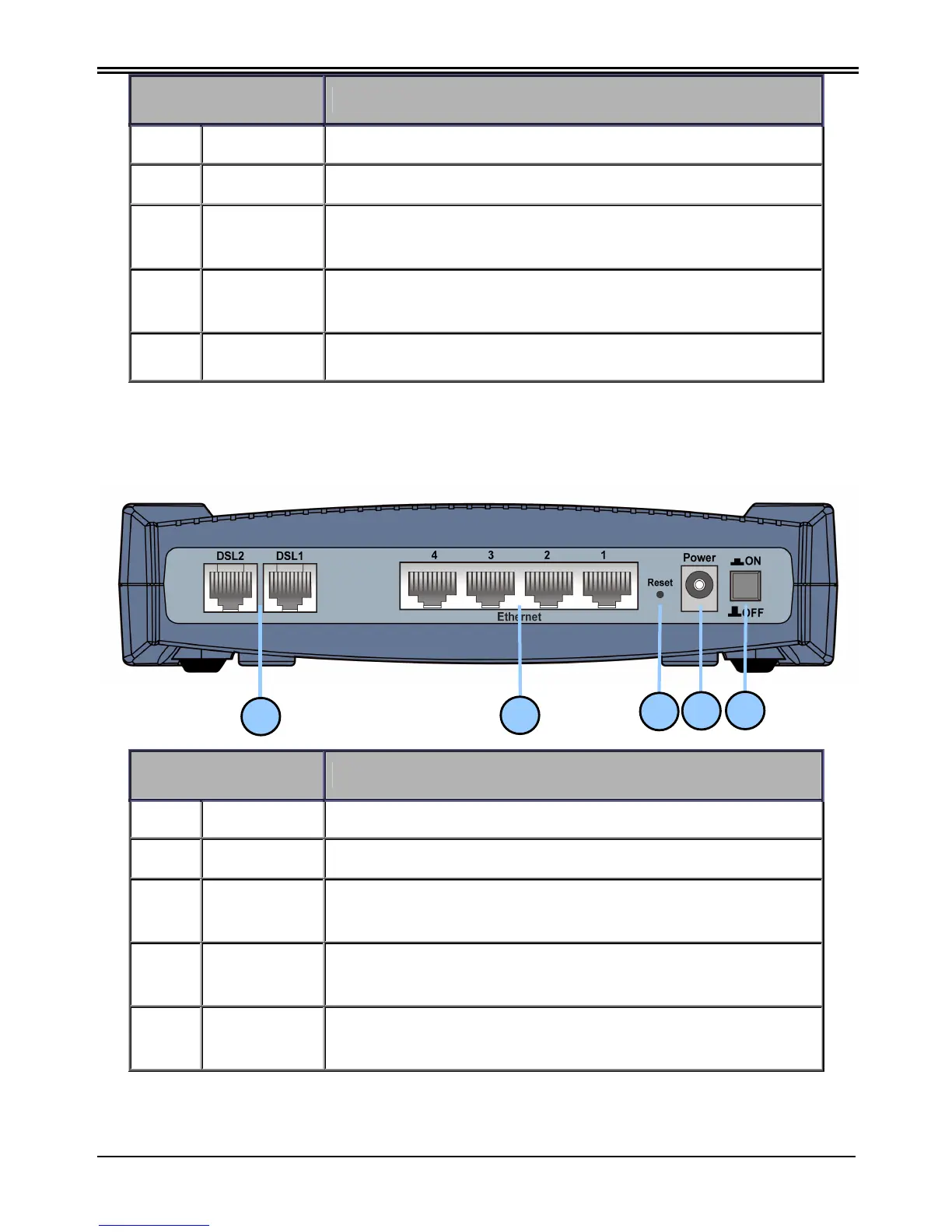

The Rear Ports of BiPAC 8521 R3
Port Meaning
1 Power Switch
Power ON / OFF switch.
2 Power
Connect the supplied power adapter to this jack.
3 Reset
After the device is powered on, press it 6 seconds or above: to restore to factory
default settings (this is used when you cannot login to the router, e.g. forgot the
password)
4
Ethernet 1 ~ 4
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four LAN ports when
connecting to a PC or an office/home network of 10Mbps /100Mbps.
Note: Port #4 can be configured as a WAN Interface for Broadband connectivity.
5
DSL 1 ~ 2
Connect this port to the SHDSL.bis network with the RJ-11 telephone cable
provided.
To Next Page
