Billyoh NS-0060 - Assembly - Gable and Eave Panels; Central Gable and Eave Panel Installation

For Queries and Help please call Product Support: 01909 768840
S50 x 4
Pilot drill holes
EHIRUHȴ[LQJ
Plain Gable Section (PG)
Plain
Panel
(PP)
Back
Side
Top View Diagram

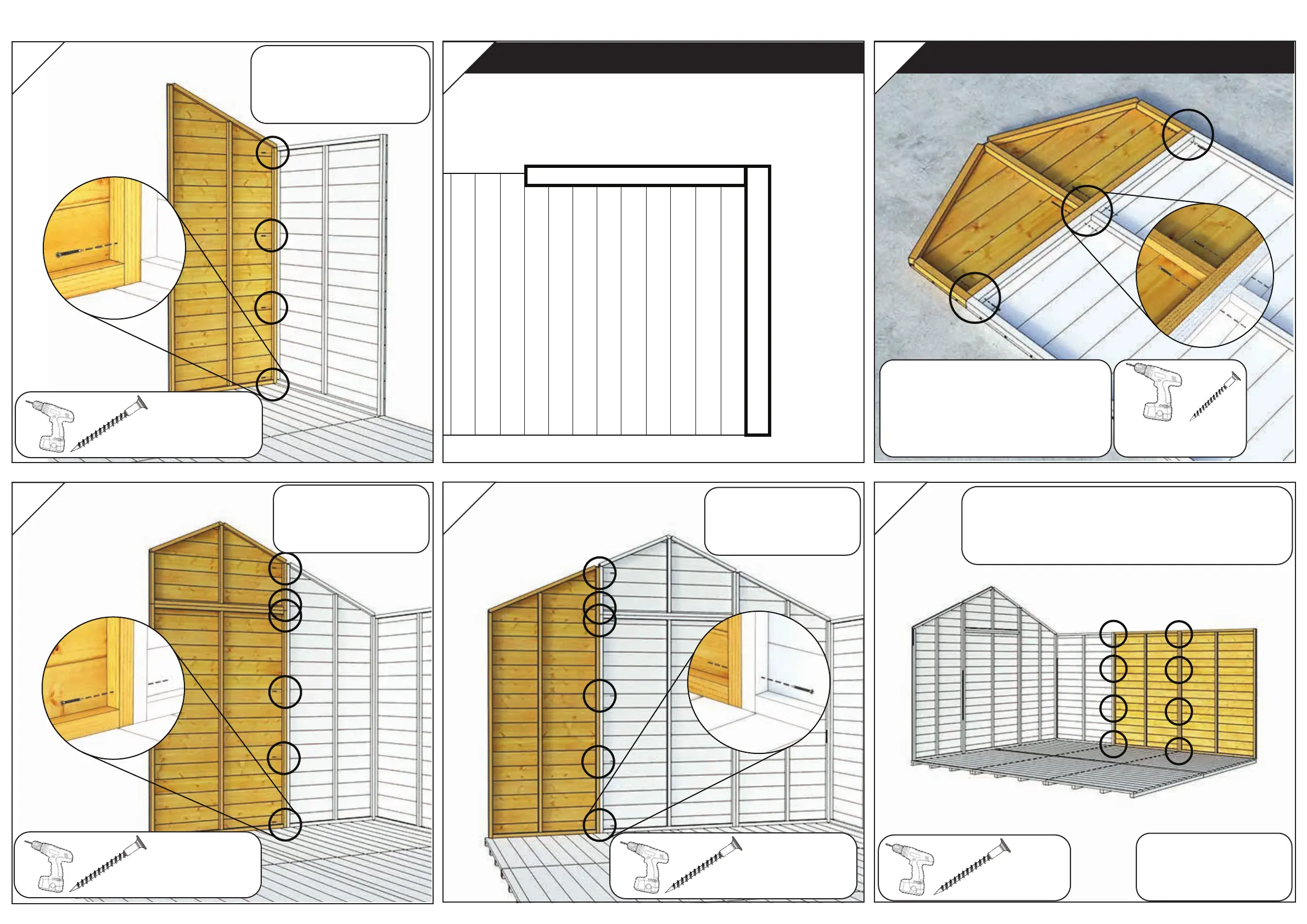

Central Gable Fixing Stages
Fix one of the Central
Gables to the top of
a 4ft Plain Panel.
4ft Plain Panel
S50 x 4
S50 x 6
Pilot drill holes
EHIRUHȴ[LQJ
S50 x 6
Pilot drill holes
EHIRUHȴ[LQJ
S50
Add the remaining Eave Panels
according to building size. (Image
below shows 12x8 building)
Pilot drill holes
EHIRUHȴ[LQJ
13
16
17 18
14 15
