Billyoh NS-0060 - Assembly - Truss and Gable Sections; Truss Fixing and Alignment Guide; Gable Panel Placement Instructions

For Queries and Help please call Product Support: 01909 768840
“Fitted on both
sides”

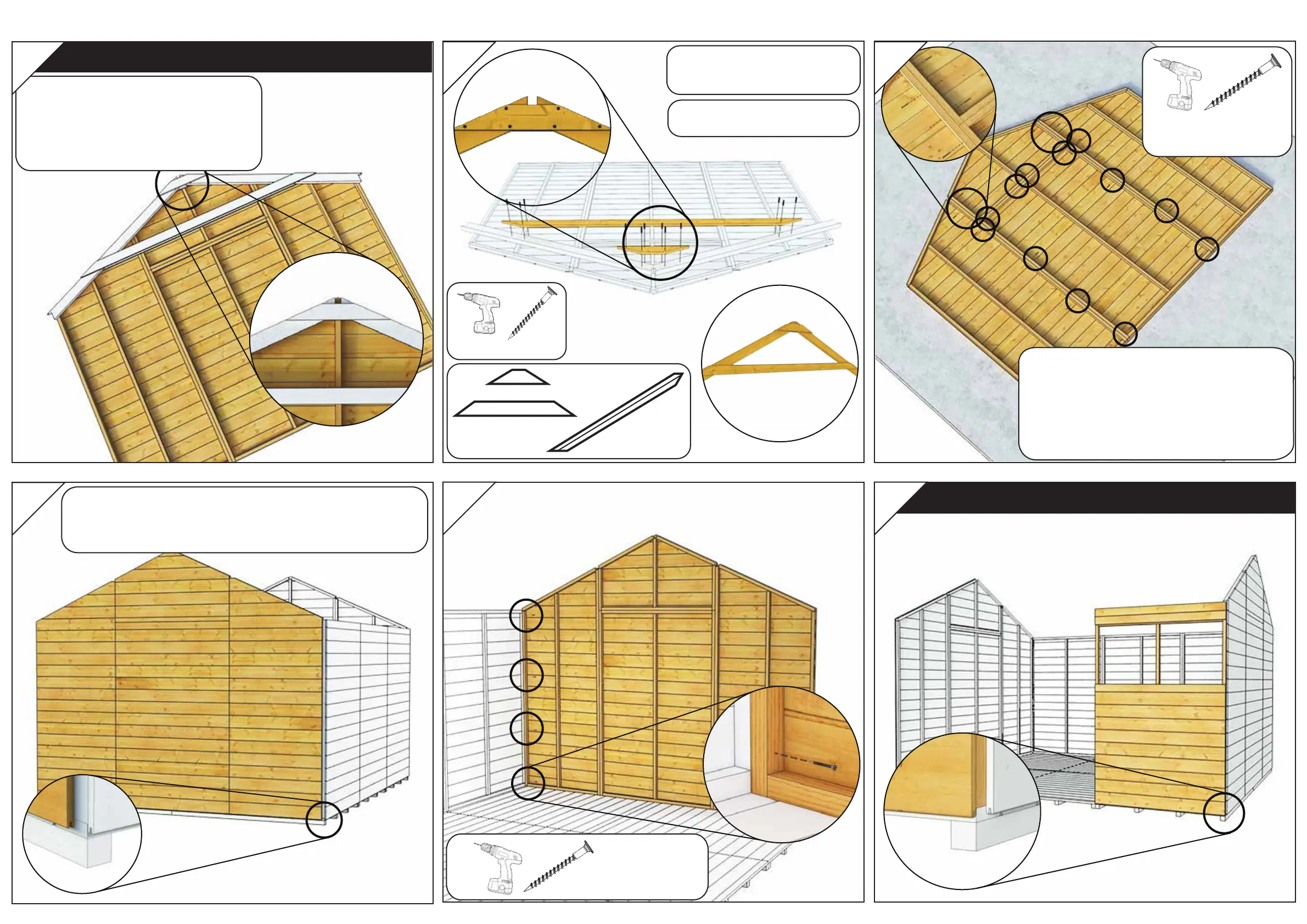

Fix truss pieces 1 side,
following the screw pattern.
S50 x 24
(TR-2250-BV2 x 2)
(TR-1632
-BM75 x 2)
(TR-0491-BV2 x 2)
Flip truss over and repeat
/D\DQGȴ[WKH6LGH
*DEOH3DQHO7RS*DEOH
&HQWUDOIW3ODLQ
3DQHO
S50 x 18
Truss Fixing Stage
Use the Door Gable
Sections to align the
Truss sections
S50 x 4
Front
Front
Side
Windowed Panel
Place the Plain Gable Section
on the inside of the Back Panels
19
22
23 24
20 21
