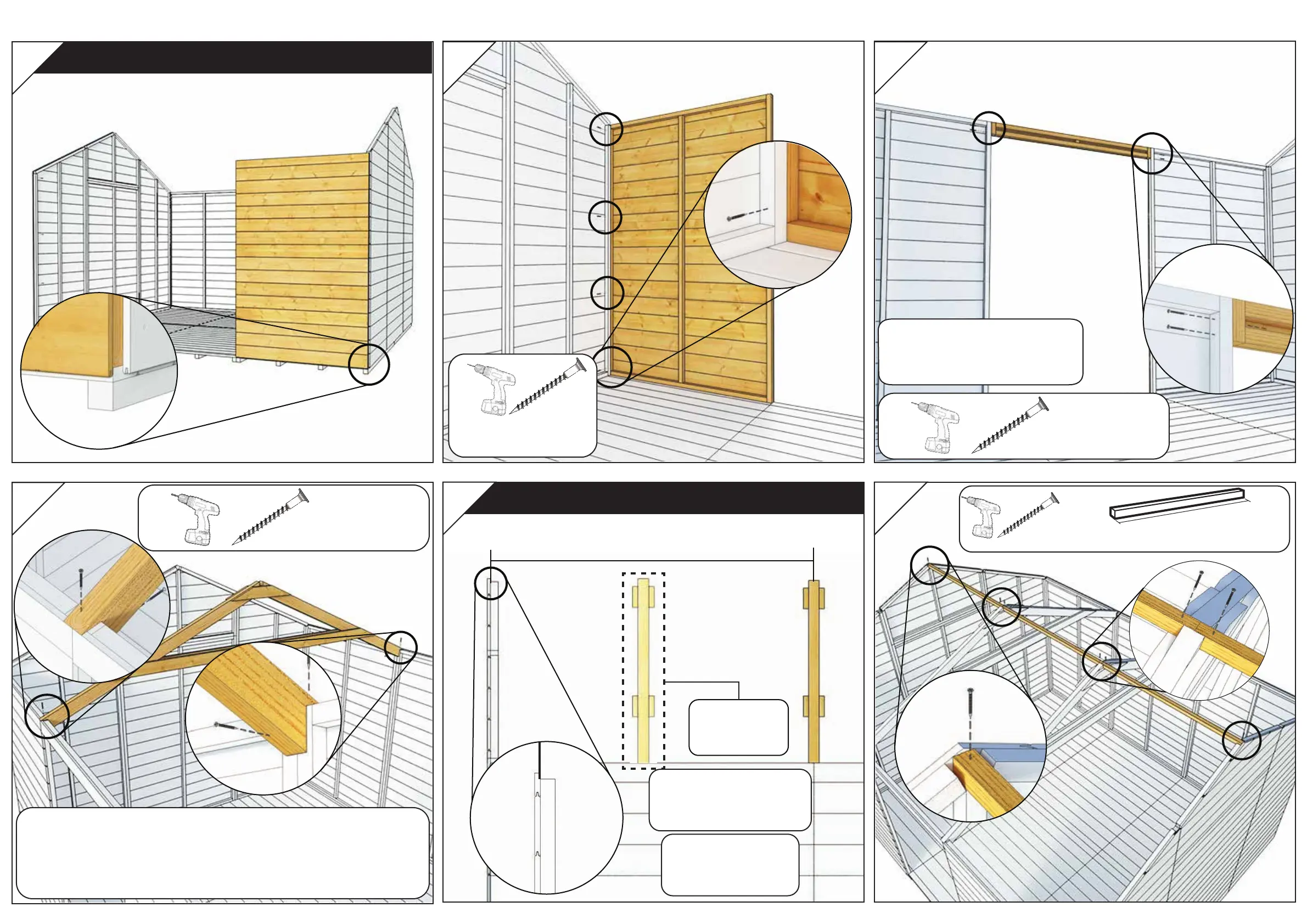

Billyoh NS-0060 - Assembly - Window and Roof Sections; Windowless and Windowed Panel Fitting; Truss Positioning and Roof Sheet Prep

For Queries and Help please call Product Support: 01909 768840
S50 x 4
Front
S50 x 4
Fix the Door Valance
between the Panels
Front
Front
Side
Windowless Panel
The distance 879mm
or 1172mm is the
width of a Roof Sheet.
Measure from the
framing to the
centre of the Truss
Truss Position Diagram
Side View
879mm or 1172mm
Heavy Duty
only, Halfway
point.
19mm
Truss
S50 x 6
(FR-0879-SQ / FR-1172-SQ)
879mm or 1172mm
S50 x 4
The Truss must be positioned where the Roof
Sheets will meet. This will be either 879mm
or 1172mm. Please see the diagram.
25
28
29 30
26 27
