GENERAL INFORMATION 37
1
2
3
4
5
6
7
8
9
10
11
12
13

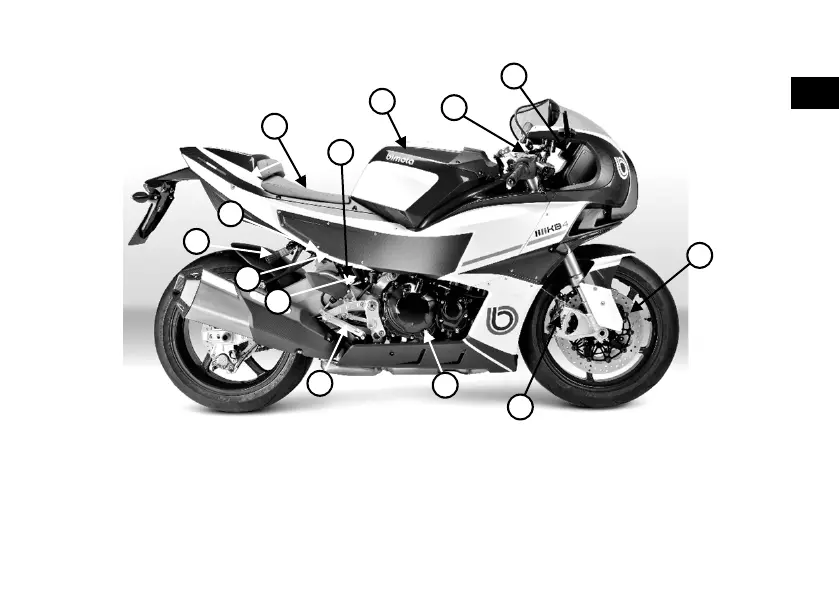

1. Brake Fluid Reservoir
(Rear)
2. Spring Preload Adjuster
3. Rebound Damping Force
Adjuster
4. Compression damping
force
5. Battery
6. Fuse Boxes
7. Fuel Tank Cap
8. Brake Discs
9. Compression Damping
Force Adjuster
10. Brake Calipers
11. Oil Level Inspection
Window
12. Rear Brake Pedal
13. Rear Brake Light Switch
