WR3000N 300M Wireless N Router
- 5 -
1.4.2 The Rear Panel

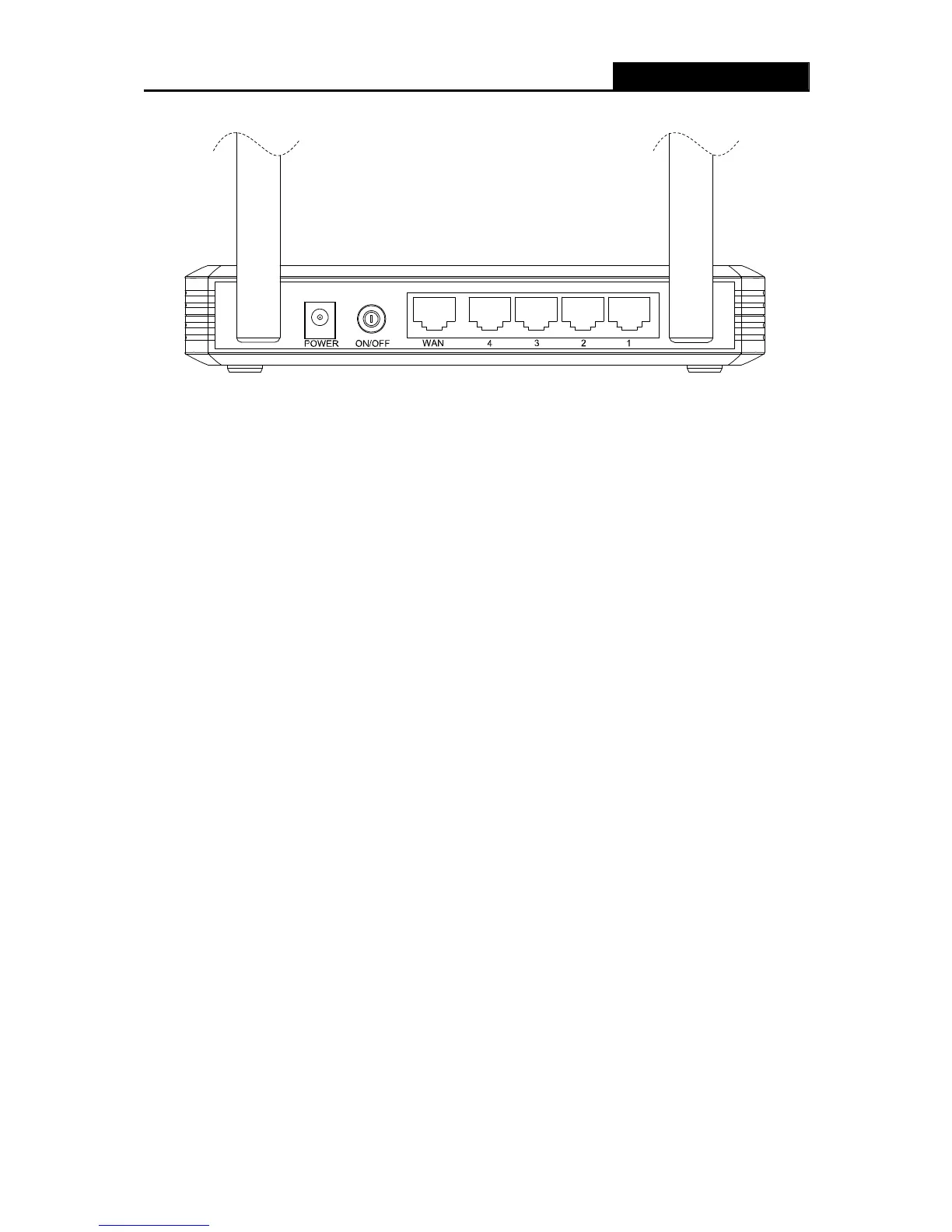

Figure 1-2 Rear Panel sketch
The following parts are located on the rear panel (View from left to right).
¾ POWER: The Power socket is where you will connect the power adapter. Please use the
power adapter provided with this WR3000N 300M Wireless N Router.
¾ ON/OFF: The switch for the power.
¾ WAN: This WAN port is where you will connect the DSL/cable Modem, or Ethernet.
¾ 4,3,2,1 (LAN): These ports (4,3,2,1) connect the Router to the local PC(s).
¾ Wireless antenna: To receive and transmit the wireless data.
