Binks 818830 - Page 7

Page 7 of 1281883X

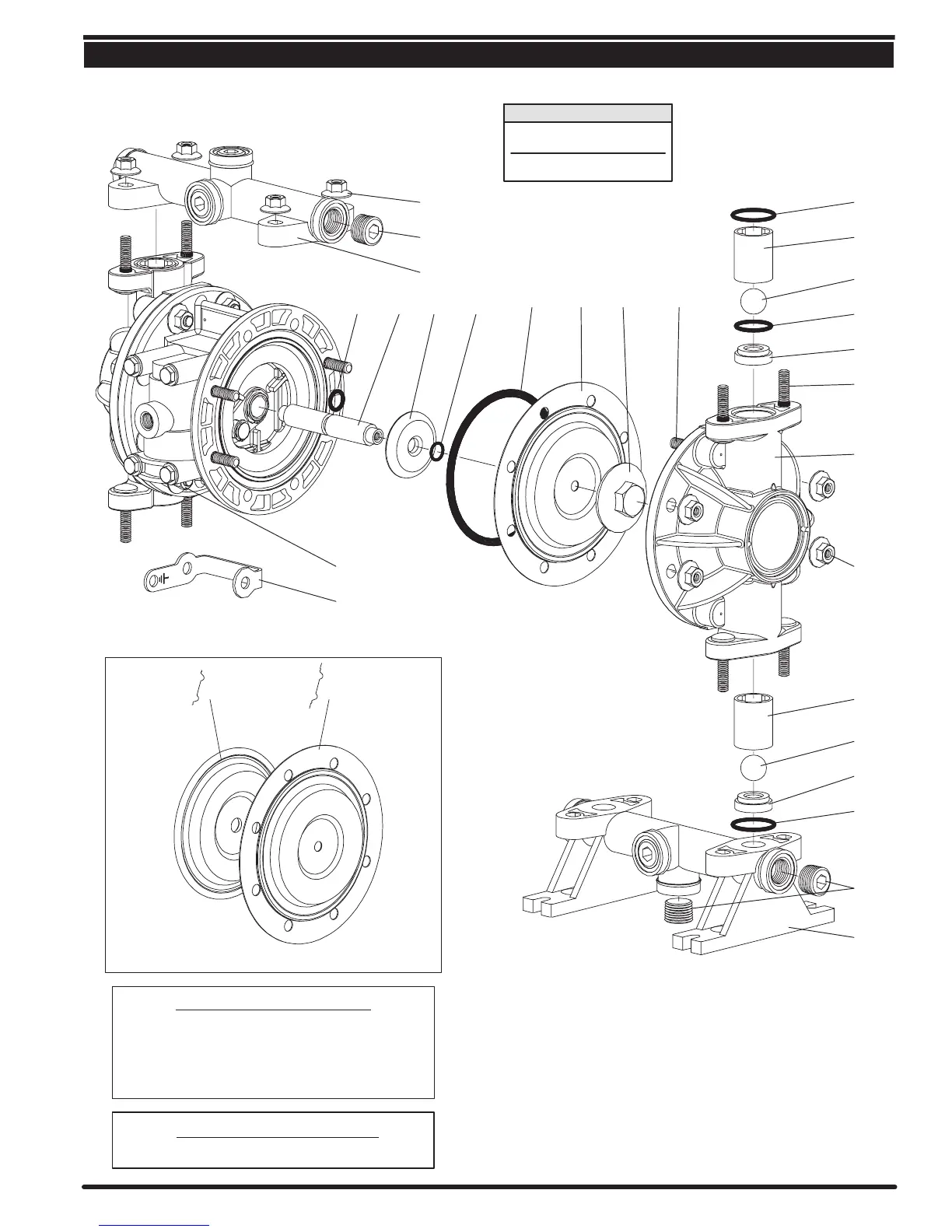

PARTS LIST / 81883X FLUID SECTION
62 ,
15
21
20
22
41
19
41
22
21
19
26
7 6 ,
352
43
29 ,
64 124 (Pg. 8)
LUBRICATION / SEALANTS
Figure 4
FOR THE
AIR MOTOR SECTION
SEE PAGES 8 & 9
. TORQUE REQUIREMENTS ,
NOTE: DO NOT OVERTIGHTEN FASTENERS
(6) Diaphragm nut 95 Ć 105 in. lbs (10.7 Ć 11.9 Nm).
(29, 62) Fluid caps / Manifold nuts 50 Ć 60 in. lbs (5.6 Ć 6.8 Nm), /
alternately and evenly, then reĆtorque after initial runĆin.
(63) Plugs 25 in. lbs (2.8 Nm) maximum.
Apply Keylube to all O" rings, U" cups and mating parts.
1
8
7
View of model 818833 and 818836 diaphragm configuration.
AIR SIDE
SANTOPRENE
(TAN)
FLUID SIDE
PTFE
(WHITE)
COLOR CODE
DIAPHRAGM BALL
MATERIAL COLOR COLOR
SANTOPRENE Ta n Ta n
TFE (PTFE) White White
63 ,
60
61
63 ,
62 ,
