IX. PARTS LIST AND SCHEMATIC DIAGRAMS- CONT.
76

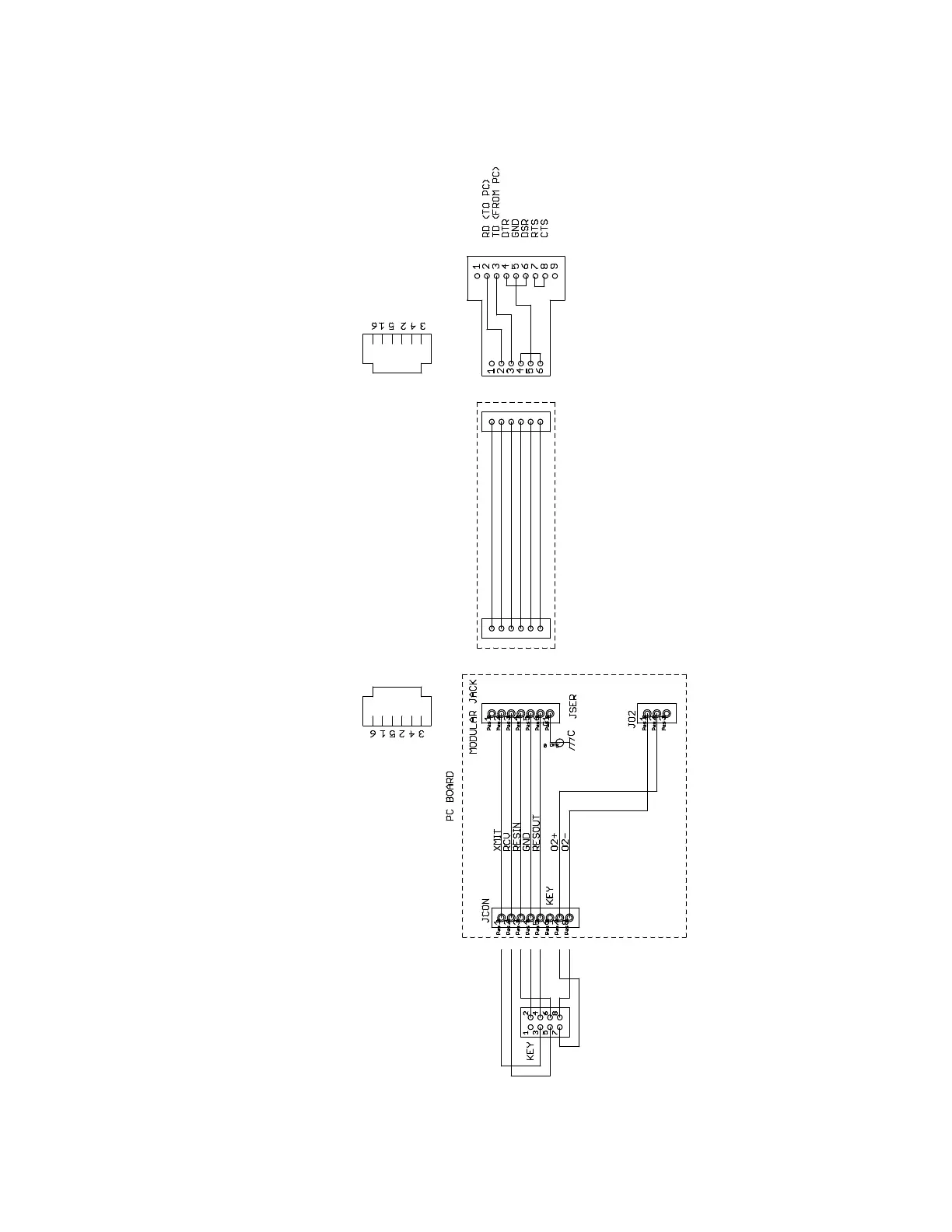

View of Modular Jack as seen from rear of adaptor
MODULAR TO DB9 ADAPTOR
MODULAR CABLE
View of Modular Jack as seen from rear of Crossvent
JCON ON MAIN PCB
ADAPTOR WIRING: RESIN and RESOUT shorted at modular end
DTR and DSR shorted at DB9 end
RTS and CTS shorted at DB9 end
RS232 INTERFACE CONNECTORS
