Bio-Tek ELx405 - Figure 26: Carrier and Manifold Placement in the Select, Select CW, and HT Models

Clean Components | 121
Carrier rail guides (2)
Screws, washers,
and springs (4)
Carrier glide strips (2)
(do not remove)
Carrier pin
Carrier transport rail
Carrier
Manifold end plates (4)
Priming trough or
ultrasonic cleaner
Manifolds (2)
Slot for carrier
p
in

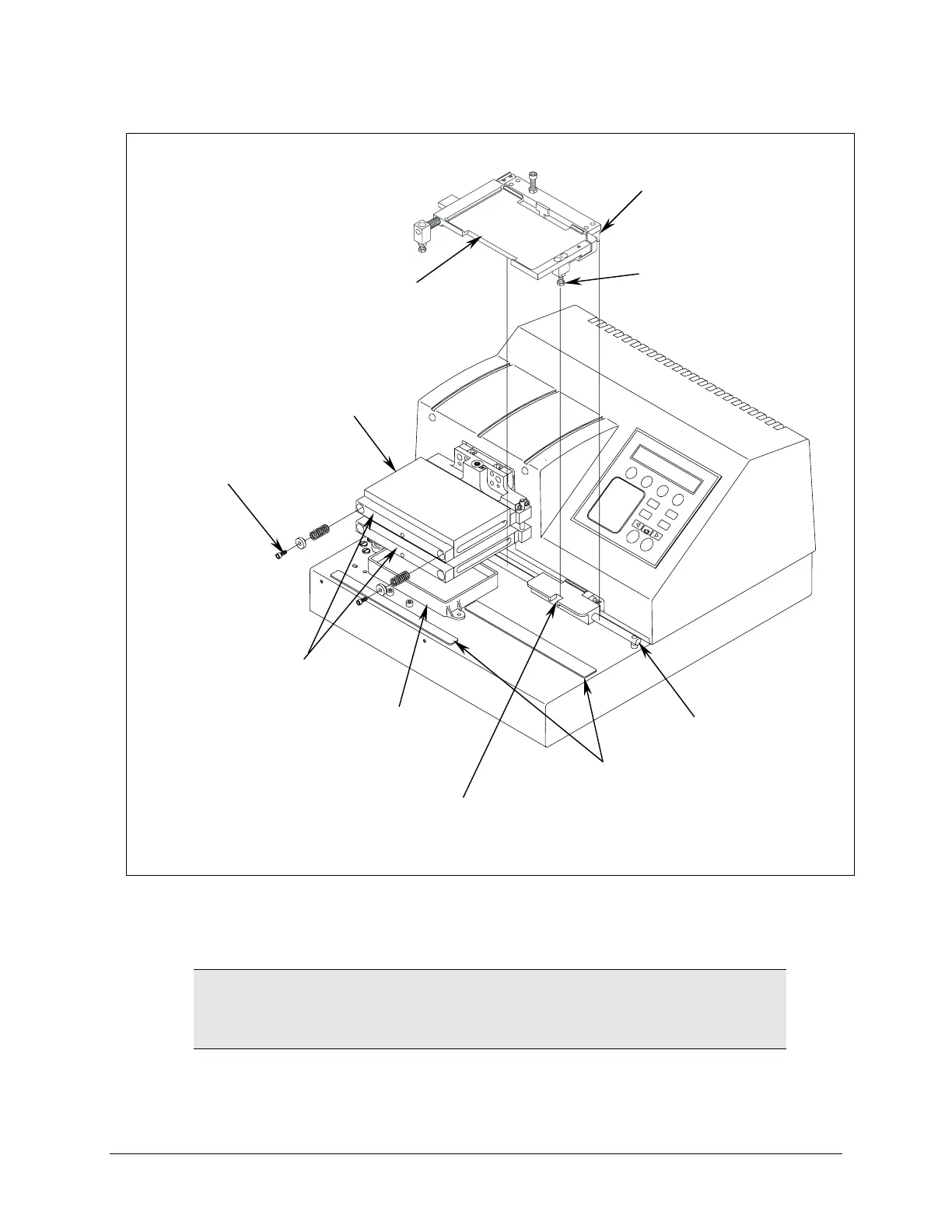

Figure 26: Carrier and Manifold Placement in the Select, Select CW, and HT Models
 The ultrasonic cleaner is available in Ultrasonic Advantage™ models
only. Do not try to remove the ultrasonic cleaner! Only Bio-Tek
authorized service personnel should remove the cleaner for
maintenance or repair.
