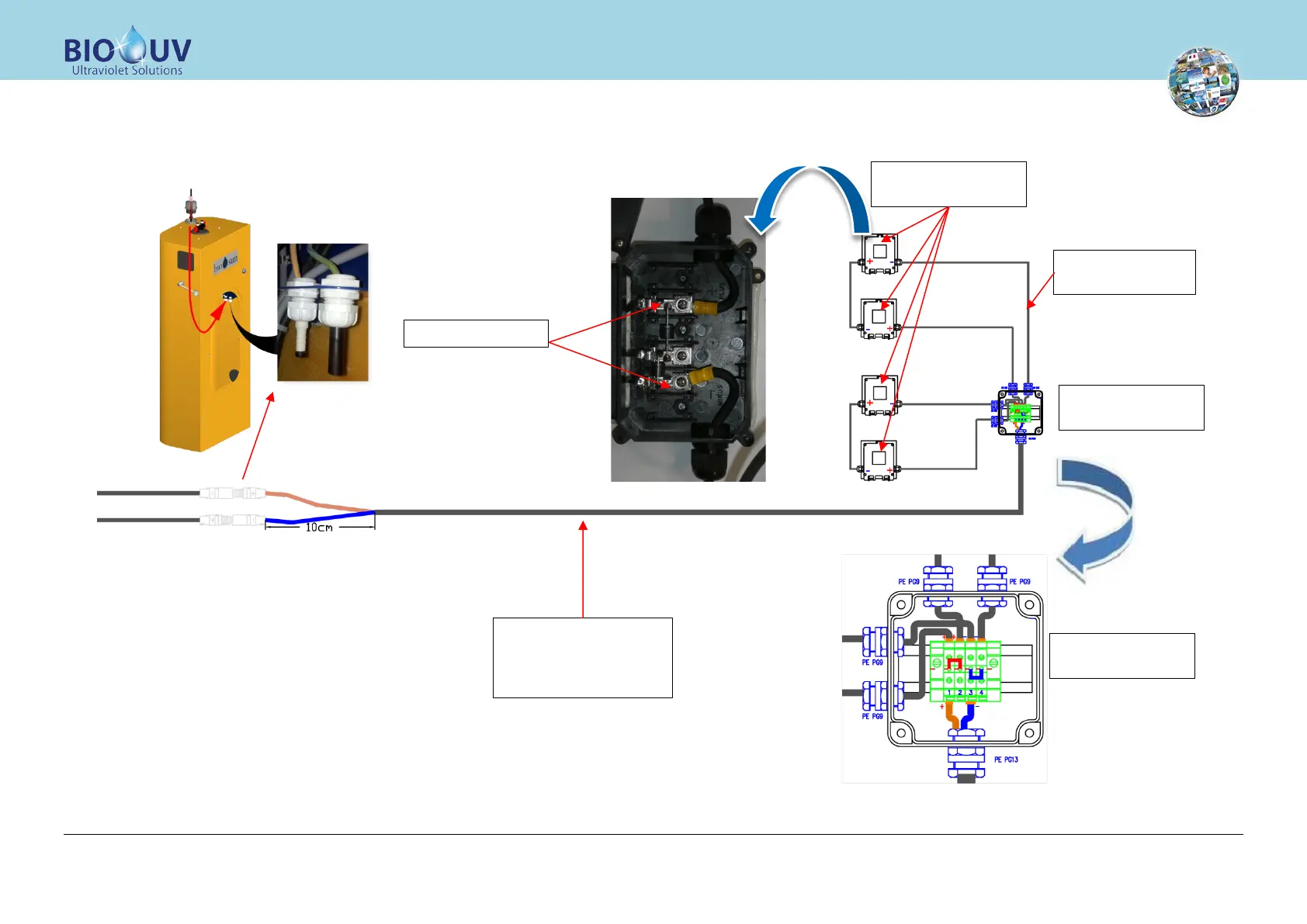

4. Wiring of photovoltaic panels
Junction box under
each panel
Use 2 round lugs
Junction box under
the support
Use crimping end
wire these terminals
Connecting cable
between panels and
terminal
(4m max)
Connecting cable
between modules
