3. Solar panel cleanliness
Regularly, make sure that the solar panels remain clean.
4. Preventive disinfection
Once a year, the terminal must be vaccinated:
• Place some bleach in the full tank and let the water run until it smells of chlorine.
• Leave to act for 2 hours.
• Drain the tank and rinse twice.

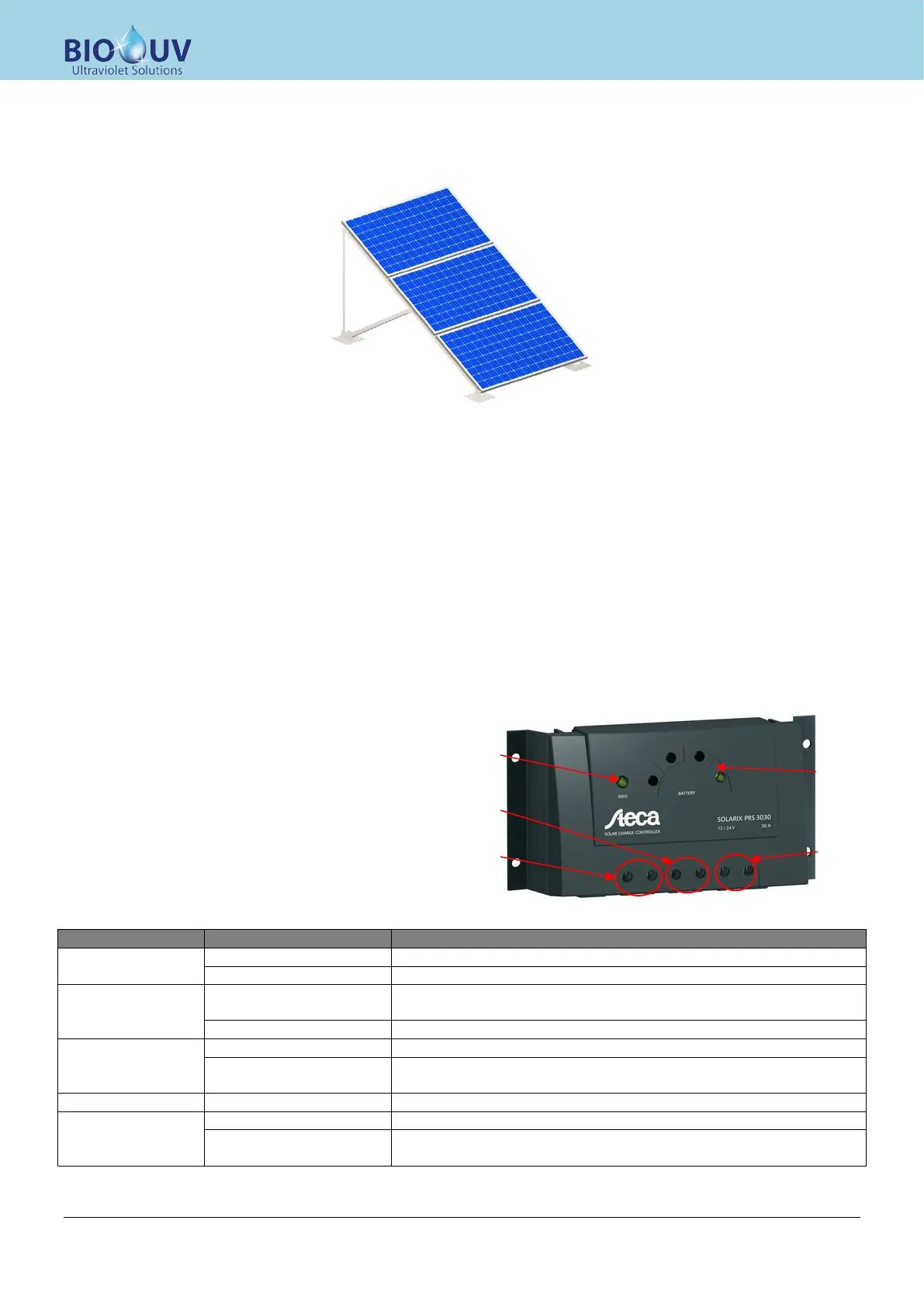

5. Functional check of the photovoltaic power supply
The solar charging regulator consists on the following components:
1. Information LED
2. 4 LEDs indicating the charging status (red, yellow,
green 1 and green 2)
3. Junction box for connecting the solar panel
4. Junction box for connecting the battery
5. Junction box for connecting the electrical
components
LED displays
LED State Meaning
Information LED Green comes on Normal operating mode
Red flashing Error status (see "Errors and resolution")
Red LED Flashes quickly Battery discharged, charging state <40%. Charging is disconnected if
the decrease in the charging state is more significant.
Flashing Charging disconnection, charging state <30%
Yellow LED Comes on Battery charge low, charging state <50%
Flashing Re-engagement threshold not reached after charging disconnection,
state of charge between 40% and 50%
1
st
green LED Comes on Battery normal, charging state >50%
2
nd
green LED Comes on Battery fully charged, charging state >80%
Flashes quickly Battery fully charged, charging regulation enabled (charging current
decreases)
1
4
3
2
5
