BIO UV BIOSUN 340 - Blown up View

BIOSUN-340_(Anglais) - DOC012466 - Ind. B03 - 21/06/2017 Copyright BIO-UV
Marque, Modèles et Brevets déposés - Produits exclusifs
Page 35

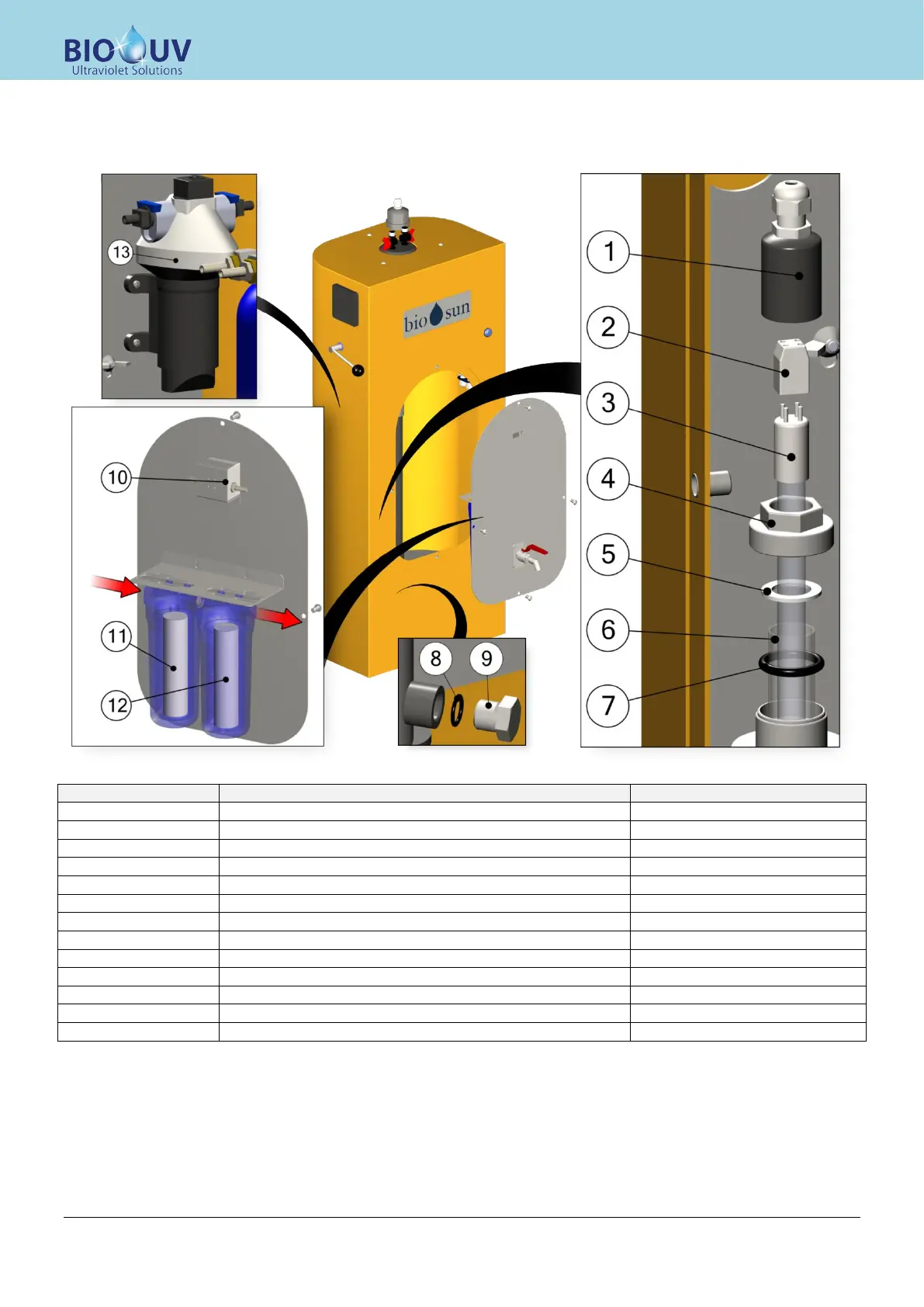

L. BLOWN UP VIEW
TAG DESIGNATION REFERENCE
1 Nut protection VIS004279
2 Lamp socket ELE002603
3 Lamp LPE004432
4 Sealing nut USI004134
5 Protection washer PIE000659
6 Quartz sleeve d25 QUA000016
7 O ring d25 JTS000100
8 O ring d10 JTS000230
9 Draining plug ACC000410
10 Water counter ELE006480
11 Filtering cartridge 10µm CAR004467
12 Filtering cartridge with active carbon CAR004468
13
Pump
PPE006459
