MODEL

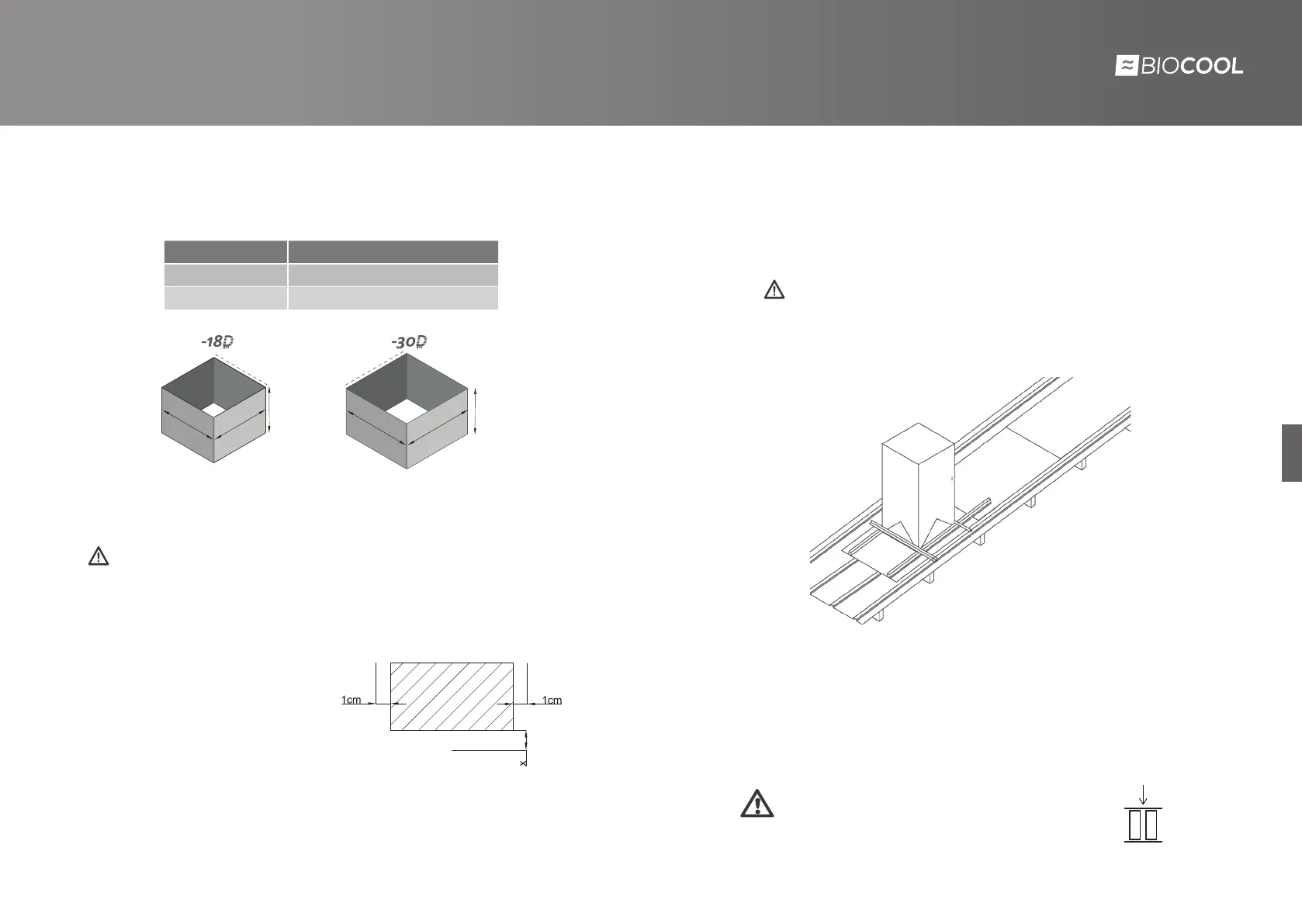

DUCTS DIMENSIONS
BIO-18D
660x660 mm. / 0,6-0,8 mm. espesor
BIO-30D
770x770 mm. / 0,6-0,8 mm. espesor
INSTALLATION
Ducts installation
Gap Cover Opening
ATTENTION! Before making a cut in the cover make sure that the weather
conditions are good and in no case with rain. On the other hand you must check
for the installation time required and sealing. NEVER LEAVE A OPENING IN THE
COVER, IT MAY CAUSE DAMAGE TO THE CLIENT.
Make the drill on the cover as shown in
the image. with the indicated margins.
The value of x is dependent on the type
of cover and its slope. The minimum
value recommended for “x” is 2 cm.
BIO
BIO
660
660
770
770
min. 300 mm
sobre cubierta
min. 300 mm
sobre cubierta
INSTALLATION
Remember:
• Minimum distance of cross-metal sheet beding of  cm to maintain the safety
margin of  cm above the cover.
• For proper installation must be level.
• Sealing: With these sealing we will prevent the possible leakage of water into
the interior of the zone to climate
Once the duct sealed, you must use a li as a creane boom or any tool the rules of
evaporative liing to the cover.
The evaporative must be properly insured for their transport to the cover or in the
installation area.
You will need an operator in the cover able to disengage and relocate the equipment.
You must ensure that the equipment is level for a
maxium performance and screw the evaporative.
