MAINTENANCE PROCEDURES
B
elt/Deck Lubrication
(See Figure 11.1.)
1
. Using the large syringe provided, squirt one-half tube of the lubricant underneath the center
of the treadbelt.
2. Walk 10 steps on the Gait Trainer at a speed of 1.0 mph. This will moisten an 8” track under-
neath the center of the entire treadbelt.
3. Allow the Gait Trainer to dry for approximately 10 minutes.
NOTE: Use only the Biodex lubricant kit with your Gait Trainer. Most standard greases, waxes and silicon
sprays will build up on the rollers, causing belt slippage and affecting tracking.
To re-order lubricant kit, use Biodex part # 945-276. Each container provides 12 applications.

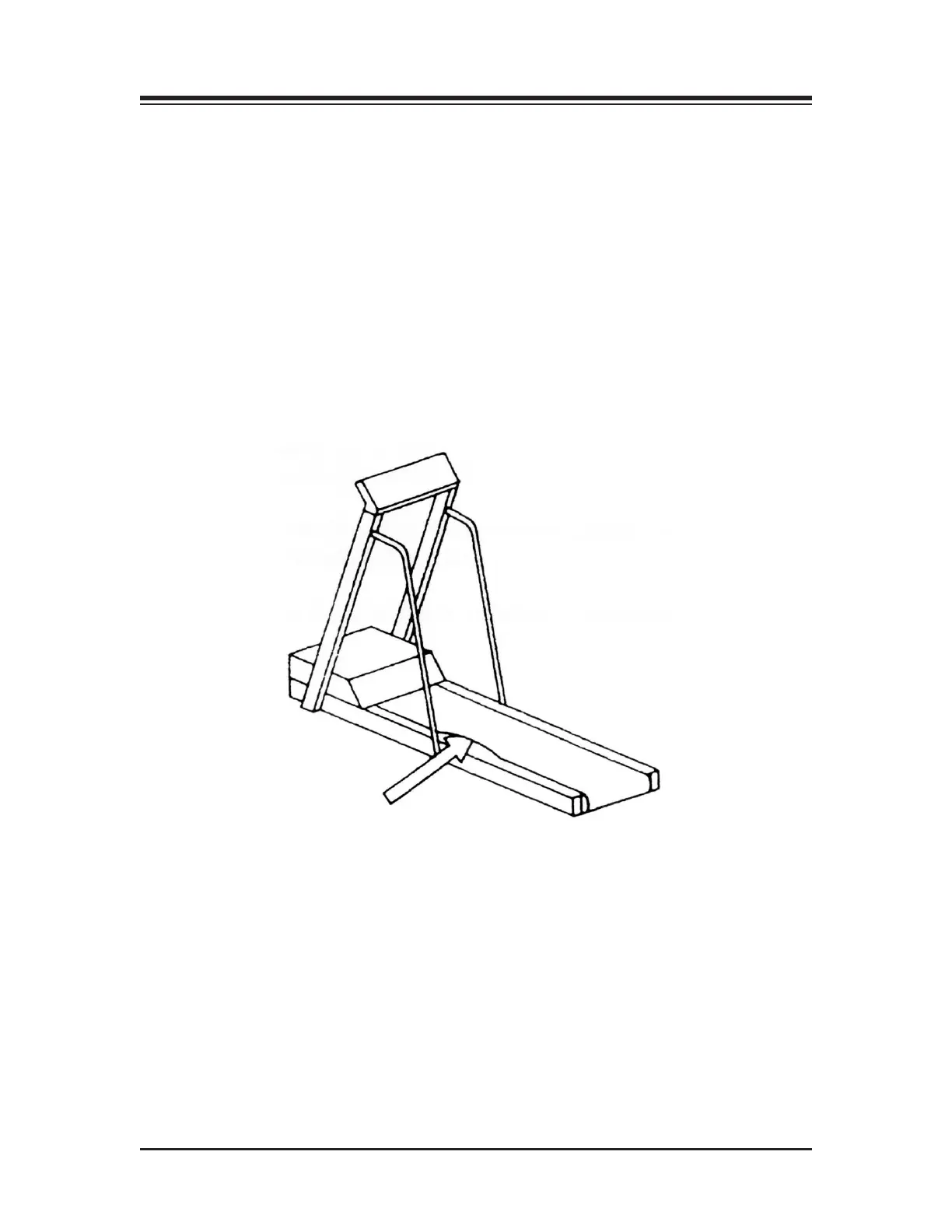

Figure 1
1.1. Squirt one-half tube of lubricant between the belt and deck.
Reverse or Replace Treadbelt and Deck
Tools Required: Phillips Screwdriver, 9/16 Socket, 3/16 and 5/32 Allen Wrench
1. Elevate treadmill to 10 degrees, allowing access to the underside of the Gait Trainer.
2. Remove power cord from wall outlet.
3. Remove motor cover secured by the six Phillips head screws. Once screws are removed, lift
and r
emove cover.
4. Remove motor tension lock nut, located on the underside of accessory pan. The nut is attached
to the motor bracket tensioning bolt. Once the tensioning bolt has been r
emoved, lift the motor
up and remove motor drive belt.
