Chapter 4: Useful help | 39
A520MPT-E | A520MPT | A520MT-E | A520MT | A520MS | B550MT | B550MS

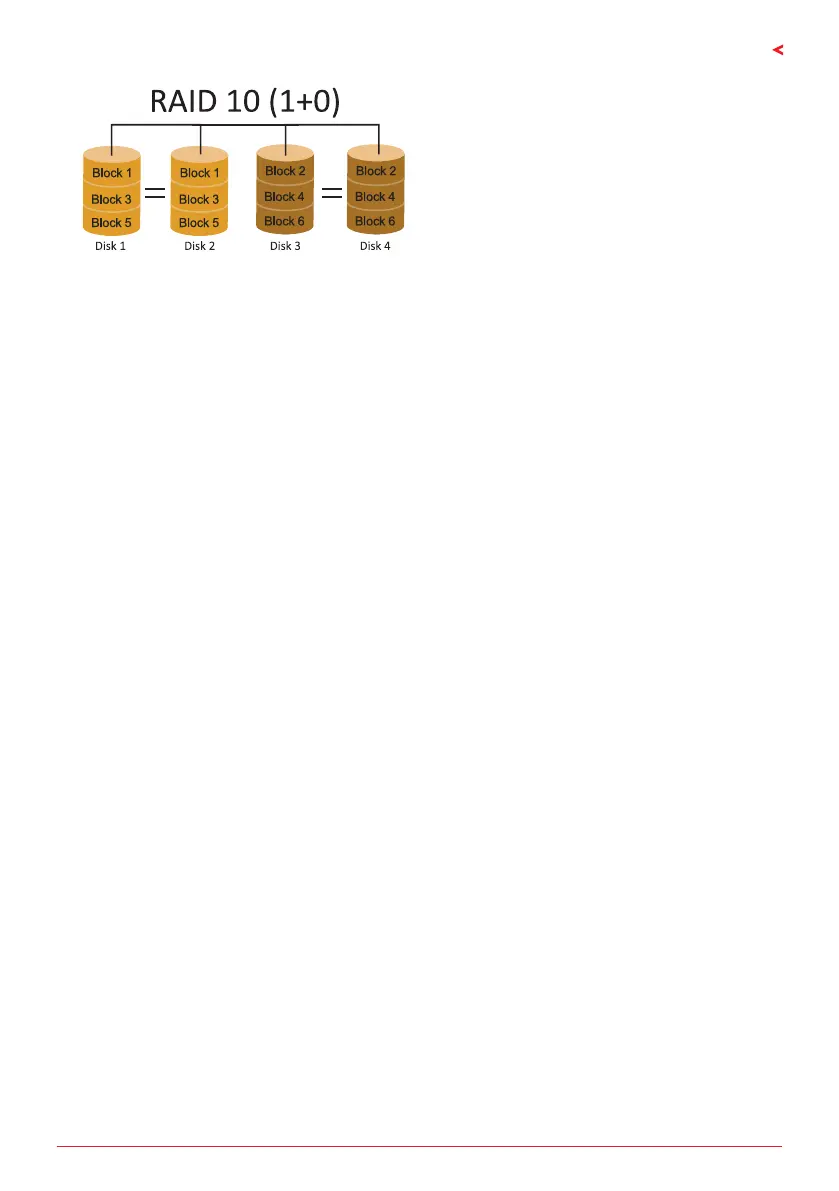

RAID 10 combines the advantages (and
disadvantages) of RAID 0 and RAID 1 in one
single system. It provides security by mirroring
all data on a secondary set of disks (disk 3 and
4 in the drawing below) while using striping
across each set of disks to speed up data
transfers.
Features and Benets
• Drives: Minimum 4, and maximum is 6 or 8, depending on the plaorm.
• Benets: Opmizes for both fault tolerance and performance, allowing for automac
redundancy. May be simultaneously used with other RAID levels in an array, and allows
for spare disks.
• Drawbacks: Requires twice the available disk space for data redundancy, the same as
RAID level 1.
• Fault Tolerance: Yes.
