6

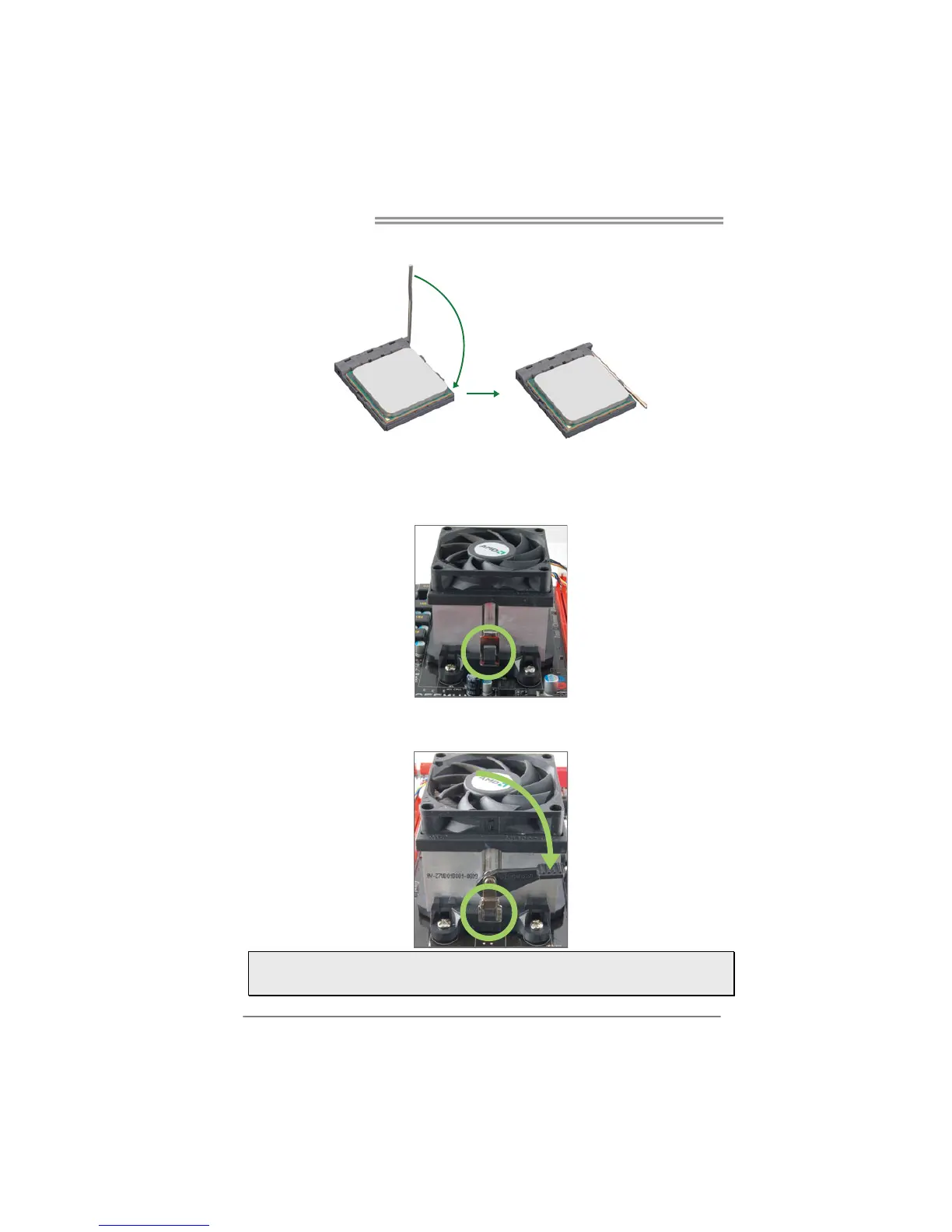

Step 4: Hold the CPU down firmly, and then close the lever to locked the
position
2.2 Install a Heatsink
Step 1: Place the heatsink and fan assembly onto the retention frame. Match the
heatsink clip with the socket mounting-lug. Hook the spring clip to the
mounting-lug.
Step 2: On the other side, push the retention clip straight down to lock into the
plastic lug on the retention frame, and then press down the locker until it
stops.
Note1: Do not forget to connect the CPU fan connector.
Note2: For proper installation, please kindly refer to the installation manual of your CPU
heatsink.

Biostar A58MD Specifications

General

Socket	FM2+
Chipset	AMD A58
Memory Slots	2 x DIMM
Maximum Memory	32GB
Form Factor	Micro ATX
Storage Interface	4 x SATA 3Gb/s
Audio	Realtek ALC662
LAN	Realtek RTL8111G
Expansion Slots	1 x PCI
Memory Standard	DDR3
Video Outputs	VGA
USB Ports	4 x USB 2.0
