12 | 第二章:硬體安裝
2.3 風扇接頭
此風扇接頭支援電腦上設置的冷卻風扇,風扇電纜和連接器可能因風扇製造商而有差異。

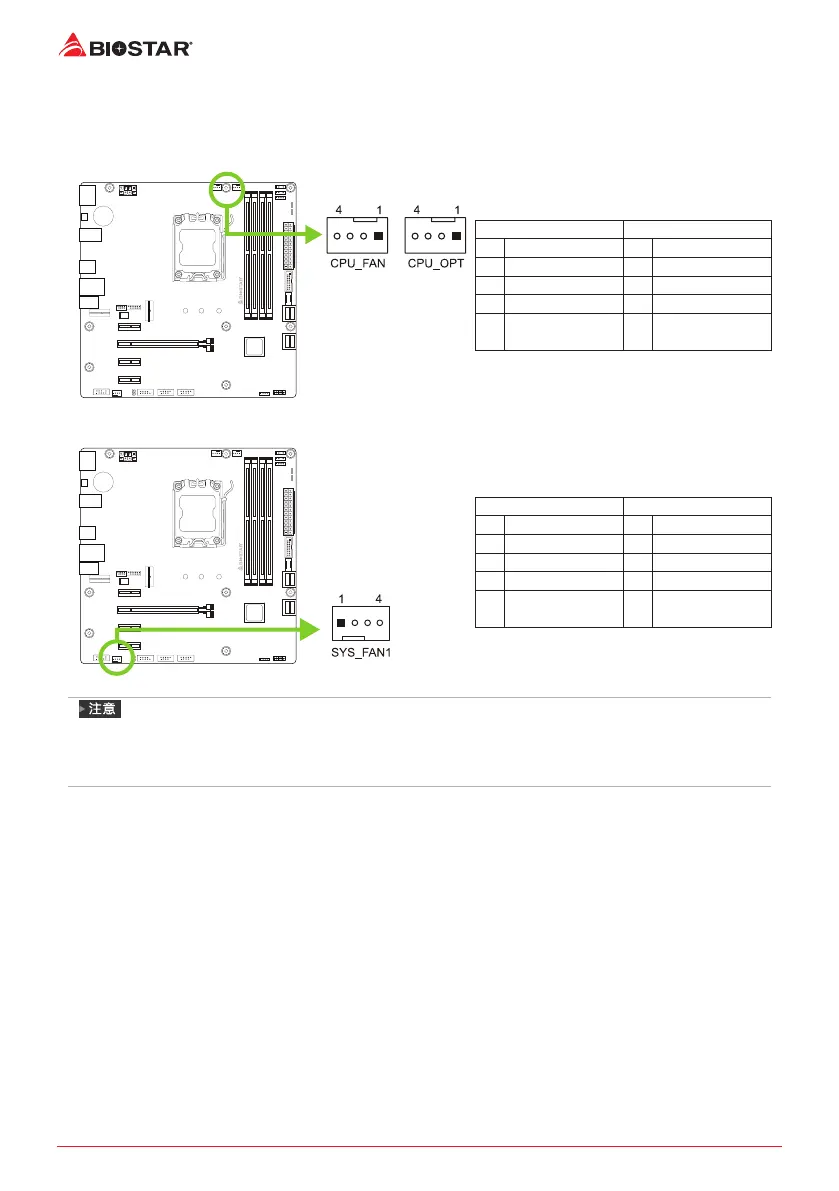

CPU_FAN/ CPU_OPT: CPU風扇接頭
PWM模式 DC模式
定義 定義
1 接地 1 接地
2 +12V 2 Voltage Control
3 Sense 3 Sense
4
Speed Control
Signal
4 NC
SYS_FAN1: 系統風扇接頭
PWM模式 DC模式
定義 定義
1 接地 1 接地
2 +12V 2 Voltage Control
3 Sense 3 Sense
4
Speed Control
Signal
4 NC
»
CPU_FANCPU_OPTSYS_FAN1支援4個針腳和3針腳接頭接線時請注意紅線是正級需接到
第二個針腳黑線接地需接到接地針腳
»
CPU風扇接頭(OPT_FAN1)支援水冷風扇和CPU風扇
