22 | 第二章:硬體安裝

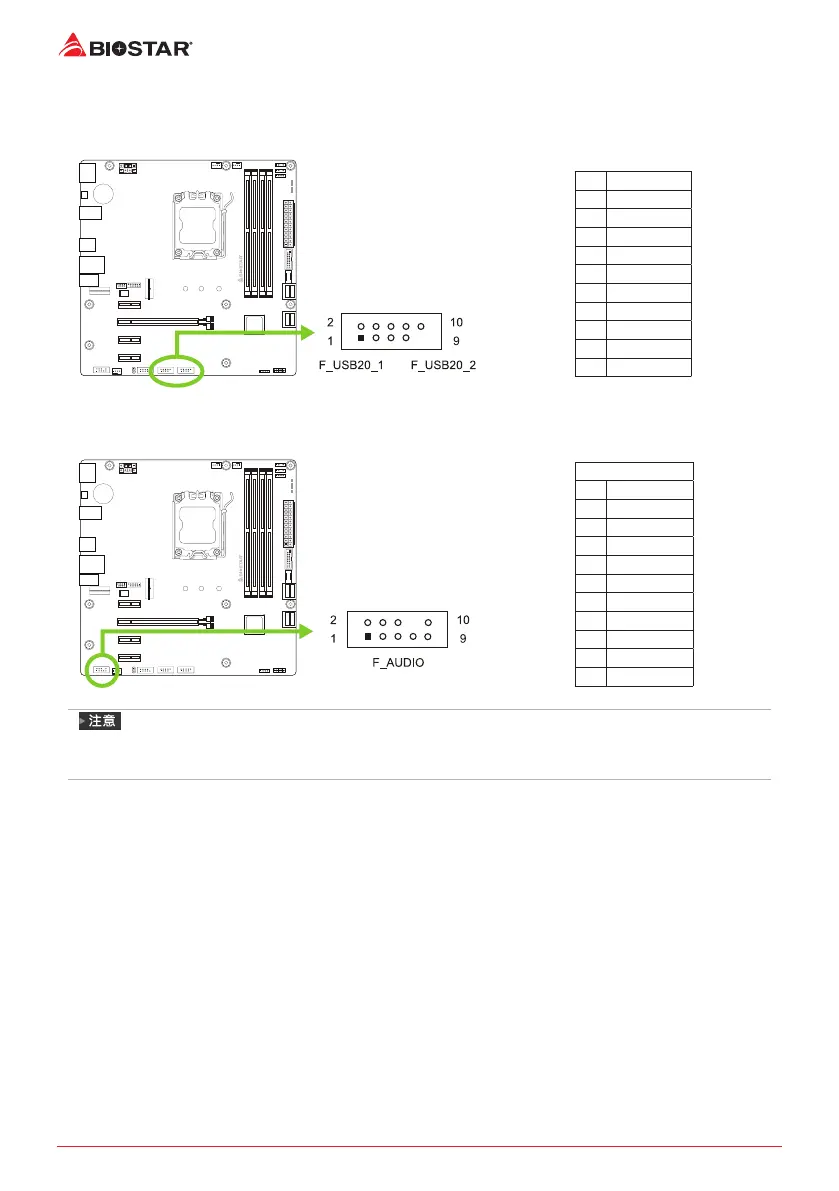

F_USB20_1/ F_USB20_2: 前置面板USB 2.0接頭
此接頭連接器允許用戶在PC前置面板上添加USB接頭,並且可與各種外部外接設備取得
連接。
定義
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 接地
8 接地
9 Key
10 NC
F_AUDIO: 前置面板音效接頭
此接頭可連接音效輸出數據線,支援HD(高解析)音效。
HD Audio
定義
1 Mic Left in
2 接地
3 Mic Right in
4 GPIO
5 Right line in
6 Jack Sense
7 Front Sense
8 Key
9 Left line in
10 Jack Sense
»
當使用前置HD音效插孔並插入耳機/麥克風時後置聲音將自動禁用
»
建議連接前置高解析音效插孔可使用主板高解析音效功
