Biostar A620MP-E PRO User Manual

Chapter 2: Hardware installaon | 19
A620MP-E PRO

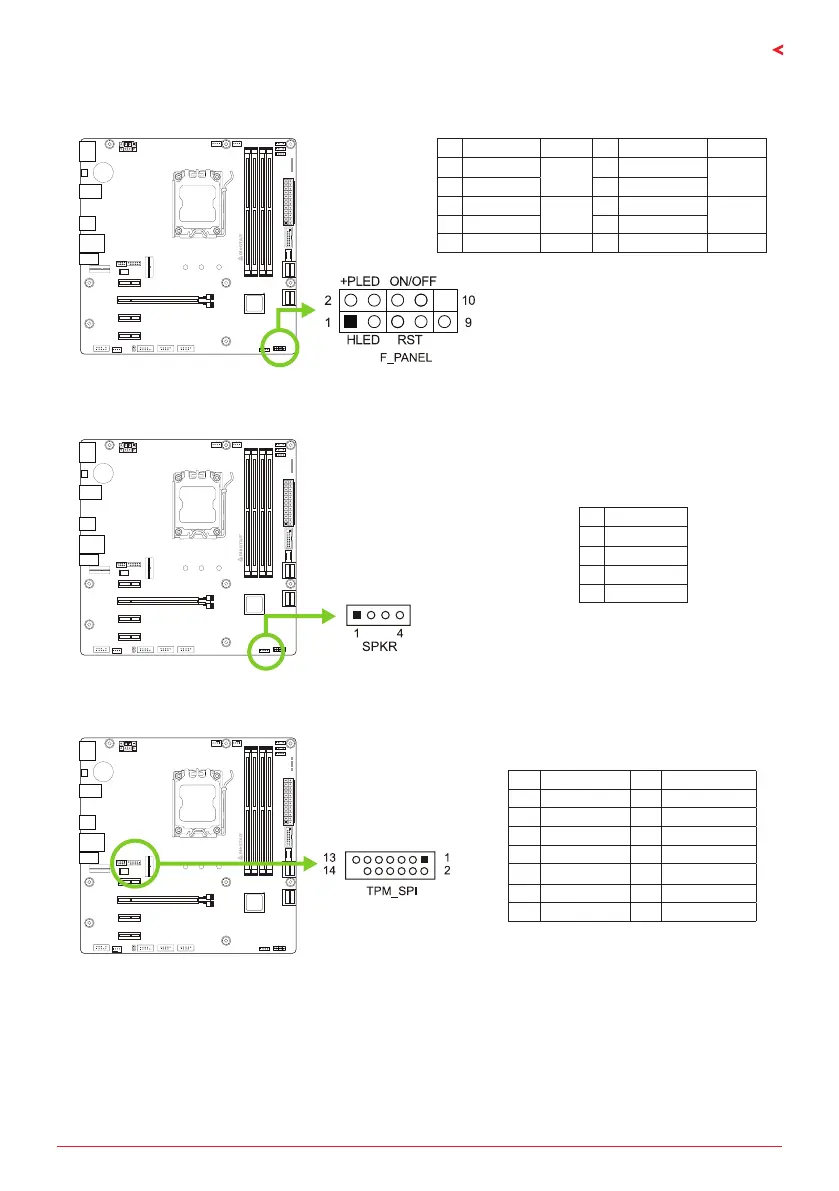

F_PANEL: Front Panel Header
This 10-pin header includes Power-on, Reset, HDD LED, Power LED connecon.
Pin Assignment Funcon Pin Assignment Funcon
1 HDD LED(+)
HDD
LED
2 Power LED (+)
Power
LED
3 HDD LED(-) 4 Power LED (-)
5 Ground
Reset
Buon
6 Power Buon
Power-On
Buon
7 Reset Control 8 Ground
9 NC NC 10 Key Key
SPKR: Chassis Speaker Header
Please connect the chassis speaker to this header.
Pin Assignment
1 +5V
2 N/A
3 N/A
4 Speaker
TPM_SPI: Trusted Plaorm Module Header
This header allows you to store cryptographic keys that protect informaon.
Pin Assignment Pin Assignment
1 +1.8V 2 SPI_PIRQ
3 TPM_RST# 4 TPM_CS
5 N/A 6 N/A
7 +1.8V 8 GND
9 N/A 10 SPI_CLK
11 SPI_MISO 12 SPI_MOSI
13 N/A 14 KEY

Biostar A620MP-E PRO Specifications

General

Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	AMD A620
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 5 7th gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
HDCP	Yes
DirectX version	12.0
Parallel processing technology support	-
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	4800, 5200, 5400, 5600, 6000 MHz
Wi-Fi	No
LAN controller	Realtek RTL8125B
Ethernet interface type	2.5 Gigabit Ethernet
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Cables included	SATA
Supported storage drive interfaces	SATA III

Weight and Dimensions

Width	244 mm
