Biostar A620MP-E PRO User Manual

Chapter 2: Hardware installaon | 23
A620MP-E PRO

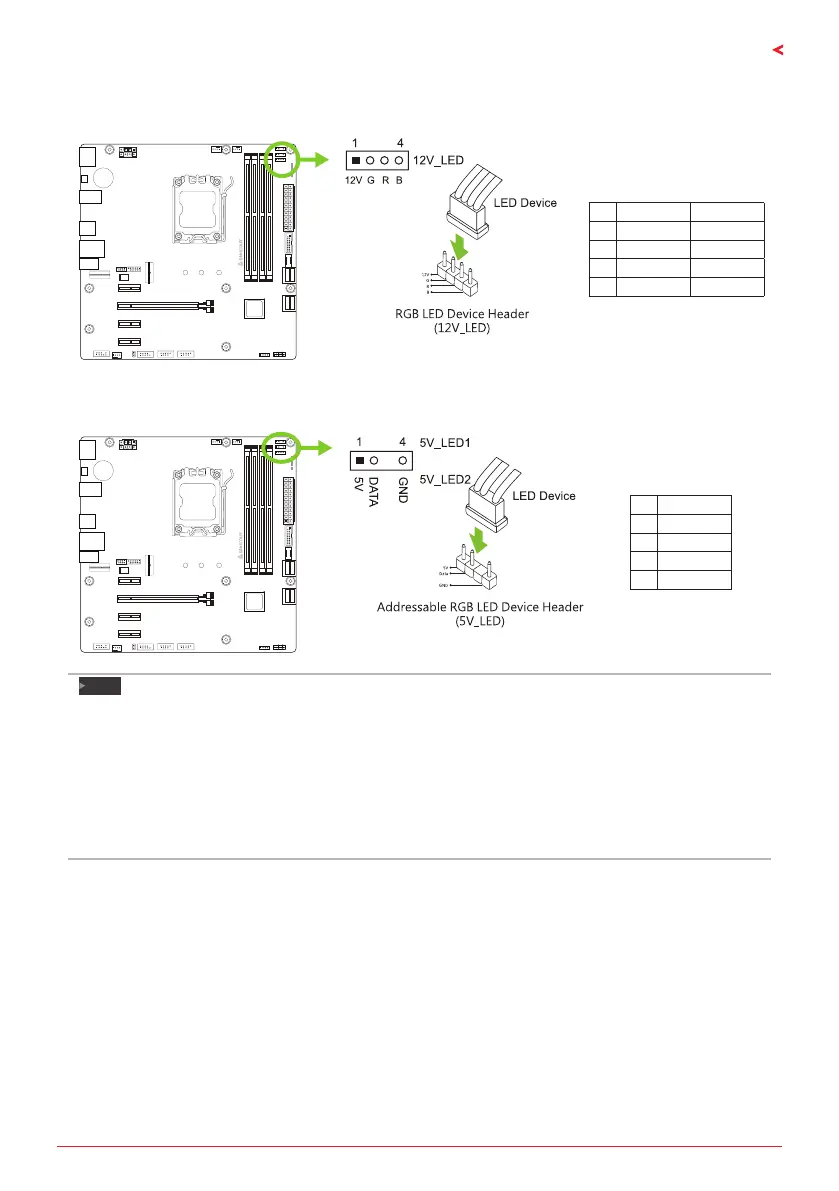

12V_LED: RGB LED Device (5050 SMD) Header
This header providers 12V power and RGB control pins for RGB LED Device (5050 SMD).
Pin Cable Color Assignment
1 12V (Black) VCC12
2 G (Green) LED_GREEN
3 R (Red) LED_RED
4 B (Blue) LED_BLUE
5V_LED1/ 5V_LED2: Addressable RGB LED Device (WS2818B) Header
This header providers 5V power and Data control pins for ARGB LED Device (WS2818B).
Pin Assignment
1 VCC5
2 Data
3 N/A
4 GND
Note
»
»
Ensure proper pin connecng to your LED device, wrong connecon may damage your LED device or
motherboard.
»
»
The 12V_LED connector supports to 5050 RGB LED strips with the maximum power rang of 3A
(12V).
»
»
The 5V_LED connector supports up to 300 LEDs WS2818B individually Addressable RGB LED strips
with the maximum power rang of 3A (5V).
»
»
Please use the Vivid LED DJ soware to control the LEDs. For detailed soware seng informaon,
refer to chapter 3.3 .

Biostar A620MP-E PRO Specifications

General

Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	AMD A620
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard chipset family	AMD
Processor socket	Socket AM5
Compatible processor series	AMD Ryzen 5 7th gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
HDCP	Yes
DirectX version	12.0
Parallel processing technology support	-
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	4800, 5200, 5400, 5600, 6000 MHz
Wi-Fi	No
LAN controller	Realtek RTL8125B
Ethernet interface type	2.5 Gigabit Ethernet
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Cables included	SATA
Supported storage drive interfaces	SATA III

Weight and Dimensions

Width	244 mm
