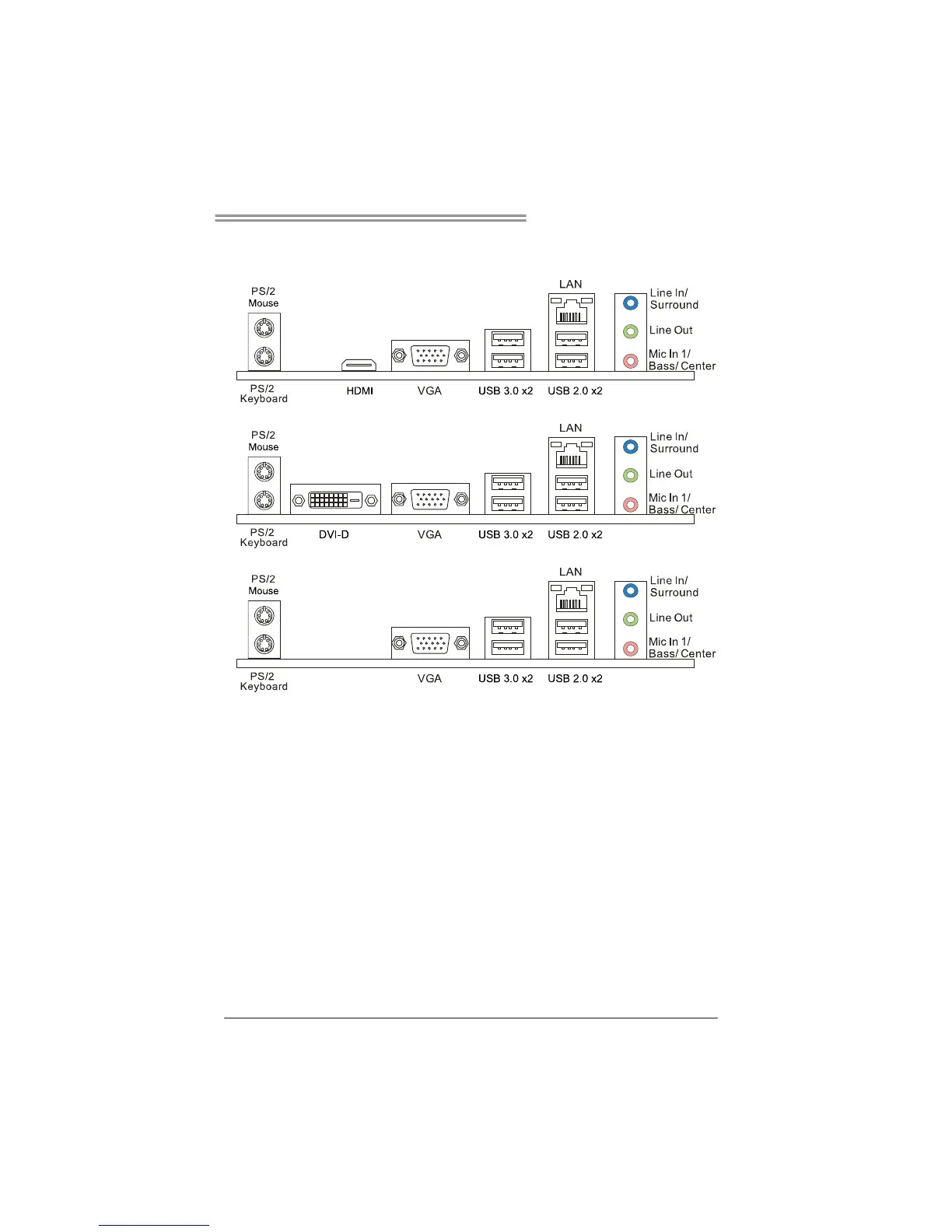

1.4 Rear Panel Connectors
AM1MH
AM1MD
AM1ML
Note 1: Since the audio chip supports High Definition Audio Specification, the function of
each audio jack can be defined by software. The input / output function of each audio jack
listed above represents the default setting. However, when connecting external microphone
to the audio port, please use the Line In (Blue) and Mic In (Pink) audio jack.
Note 2: Maximum resolution:
HDMI: 1920 x 1080 @60Hz
DVI-D: 1920 x 1200 @60Hz
VGA: 1920 x 1200 @60Hz
