Chapter 2: Hardware installaon | 17

B450MX / B450MX-S

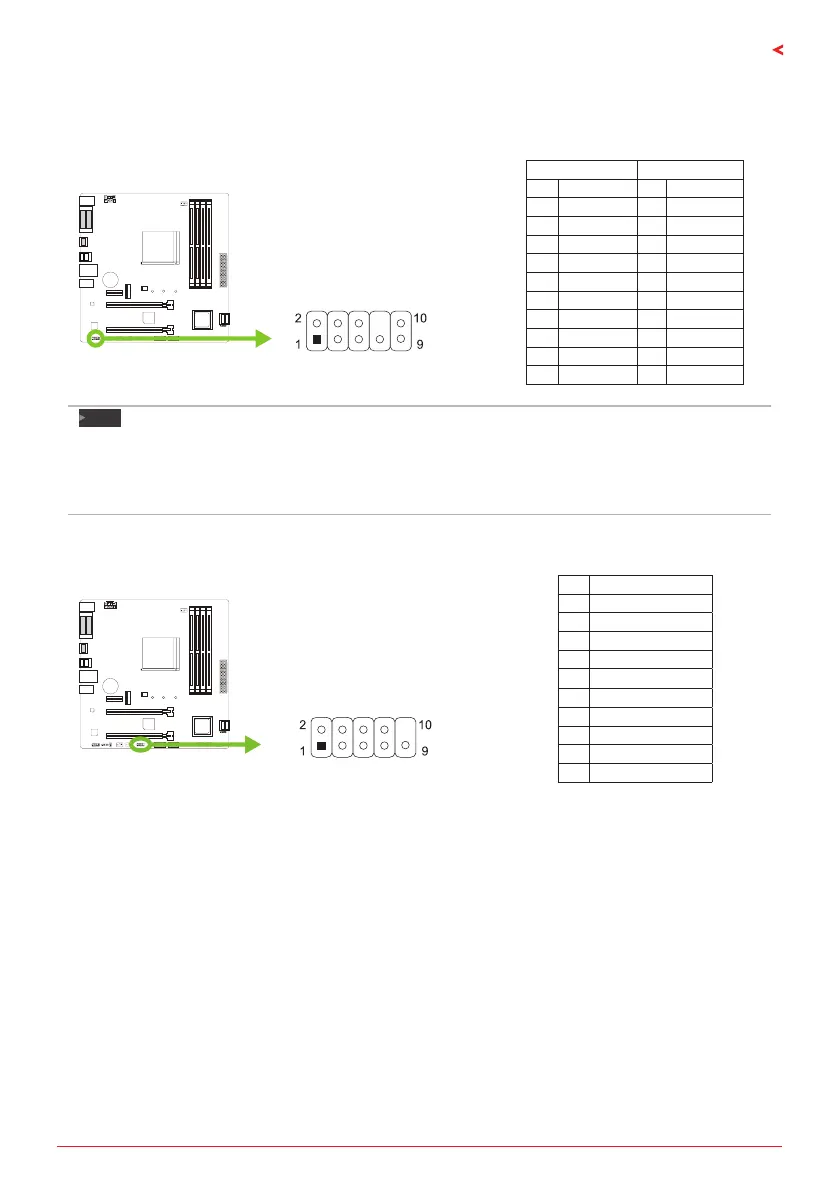

F_AUDIO1: Front Panel Audio Header

This header allows user to connect the chassis-mount front panel audio I/O which supports HD

and AC’97 audio standards.

HD Audio AC’97

Pin Assignment Pin Assignment

1 Mic Le in 1 Mic In

2 Ground 2 Ground

3 Mic Right in 3 Mic Power

4 GPIO 4 Audio Power

5 Right line in 5 RT Line Out

6 Jack Sense 6 RT Line Out

7 Front Sense 7 Reserved

8 Key 8 Key

9 Le line in 9 LFT Line Out

10 Jack Sense 10 LFT Line Out

Note

 Itisrecommendedthatyouconnectahigh-denionfrontpanelaudiomoduletothisconnectorto

availofthemotherboard’shighdenionaudiocapability.

 Pleasetrytodisablethe“FrontPanelJackDetecon”ifyouwanttouseanAC’97frontaudiooutput

cable.ThefunconcanbefoundviaO.S.AudioUlity.

J_COM1: Serial Port Connector

The motherboard has a serial port header for connecng RS-232 Port.

Pin Assignment

1 Carrier detect

2 Received data

3 Transmied data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

10 Key

Questions and Answers:

Need help?

Do you have a question about the Biostar B450MX and is the answer not in the manual?

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Athlon, AMD Ryzen 3, AMD Ryzen 3 2nd Gen, AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9 3rd Gen
Maximum number of SMP processors	1
Audio chip	Realtek ALC887
Component for	PC
Motherboard chipset	AMD B450
PC health monitoring	CPU, FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64, Windows 7 x64
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	4066, 1866, 2133, 2400, 2667, 2933, 3200, 3600, 4000, 4133, 4200, 4266, 4333 MHz
HDCP	Yes
DirectX version	12.0
Parallel processing technology support	-
USB 2.0 connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Wi-Fi	No
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cables included	SATA
Bundled software	BullGuard
Harmonized System (HS) code	84733020
