第二章: 硬體安裝 | 13
B450MX / B450MX-S
2.6 跳線設定

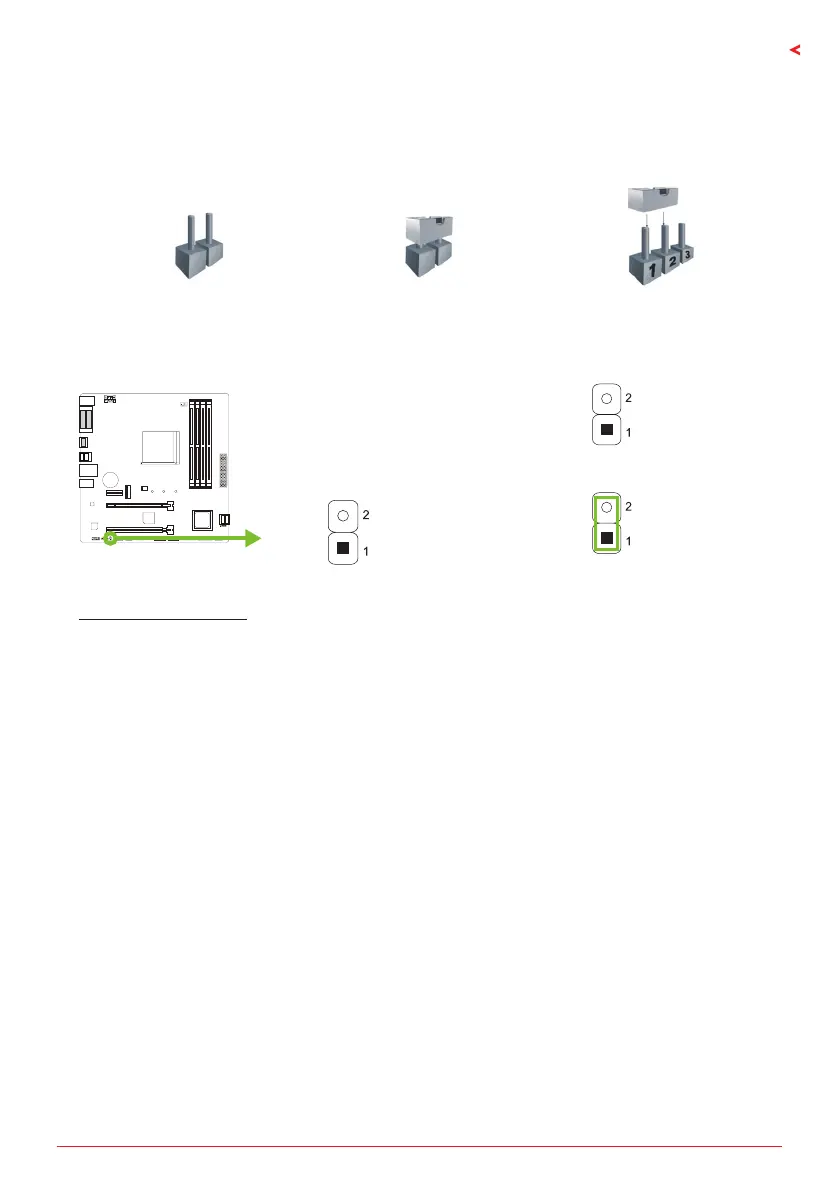

下圖顯示為如何安裝跳線。當跳帽放置在針腳上時,跳線為關閉(close)狀態。若跳帽未
放置在針腳上時,則跳線為打開(open)狀態。下圖顯示如何設置跳線。
針腳 打開 針腳 關閉 針腳1-2
關閉
JCMOS1: 清空CMOS 跳線
用戶可清空CMOS數據並恢復BIOS安全設定,請依照以下步驟操作以免造成主板損壞。
針腳 1-2 打開: 一般操作(預設)
針腳 1-2 短路: 清空CMOS數據
清空CMOS數據過程:
1. 關閉AC電源。
2. 將跳線設置成1-2接腳短路,建議可以使用一個金屬物體如螺絲起子同時
觸碰1-2針腳。
3. 等待5秒鐘。
4. 清空CMOS數據後,請確認跳線設定為1-2針脚打開。
5. 打開AC電源。
6. 開機後按下<Del>鍵進入BIOS設定。
