第二章: 硬體安裝 | 15
B450NH
2�7 接頭和插槽

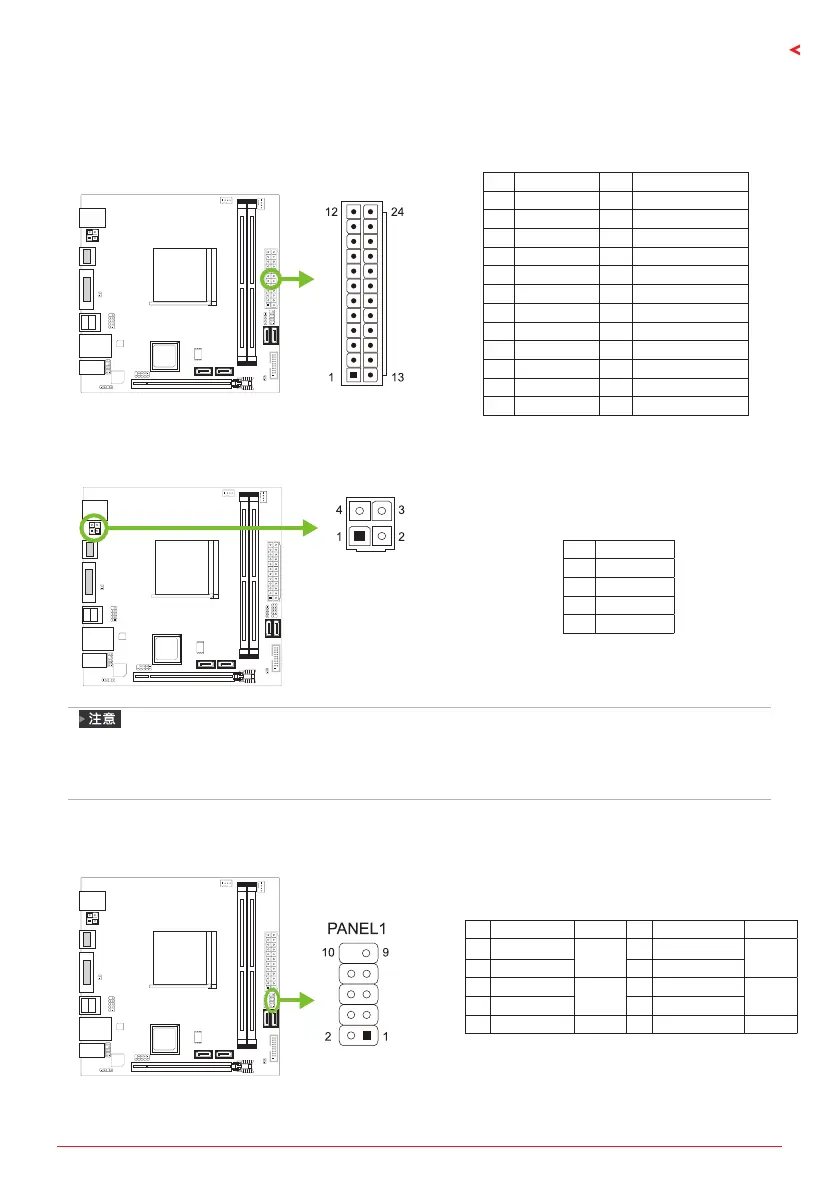

ATXPWR1: ATX電源插槽
為了更好的相容性,我們建議使用標準的ATX24-pin電源供應此插槽的電源。
定義 定義
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 接地 3 接地
16 PS_ON 4 +5V
17 接地 5 接地
18 接地 6 +5V
19 接地 7 接地
20 NC 8 PW_OK
21 +5V 9 喚醒電壓+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 接地 12 +3.3V
ATXPWR2: ATX電源插槽
此插槽為CPU電路提供+12V電壓。
定義
1 +12V
2 +12V
3 接地
4 接地
»
ATXPWR1ATXPWR2上電
»
電壓不足可能會導致系統不穩或外接設備無法正常運轉當配置具有大功耗設備的系統時建議
您使用具有更高功率輸出的電源供應器
PANEL1: 前置面板接頭
此16針腳接頭包含開機,重新啓動,硬碟指示燈,電源指示燈和喇叭。
定義 功能 定義 功能
1 HDD LED(+)
硬碟指
示燈
2 Power LED (+)
電源指
示燈
3 HDD LED(-) 4 Power LED (-)
5 接地
重啓按
6 電源按鈕
開機按
7 重啓 8 接地
9 NC NC 10 NA NA
