G41D3

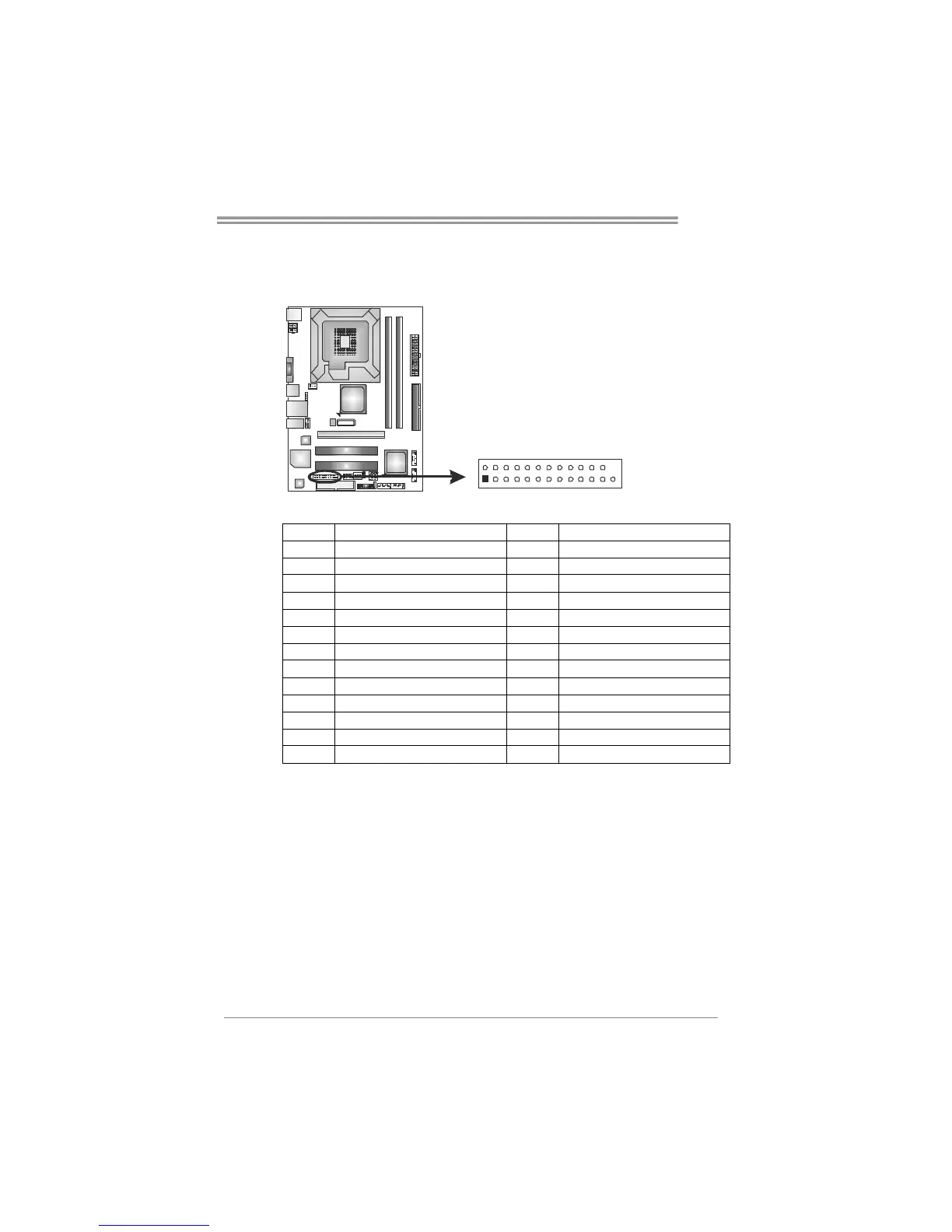

J_PRINT1: Printer Port Connector

This header allows you to connector printer on the PC.

Pin Assignment Pin Assignment

1 -Strobe 14 Ground

2 -ALF 15 Data 6

3 Data 0 16 Ground

4 -Error 17 Data 7

5 Data 1 18 Ground

6 -Init 19 -ACK

7 Data 2 20 Ground

8 -Scltin 21 Busy

9 Data 3 22 Ground

10 Ground 23 PE

11 Data 4 24 Ground

12 Ground 25 SCLT

13 Data 5 26 Key
